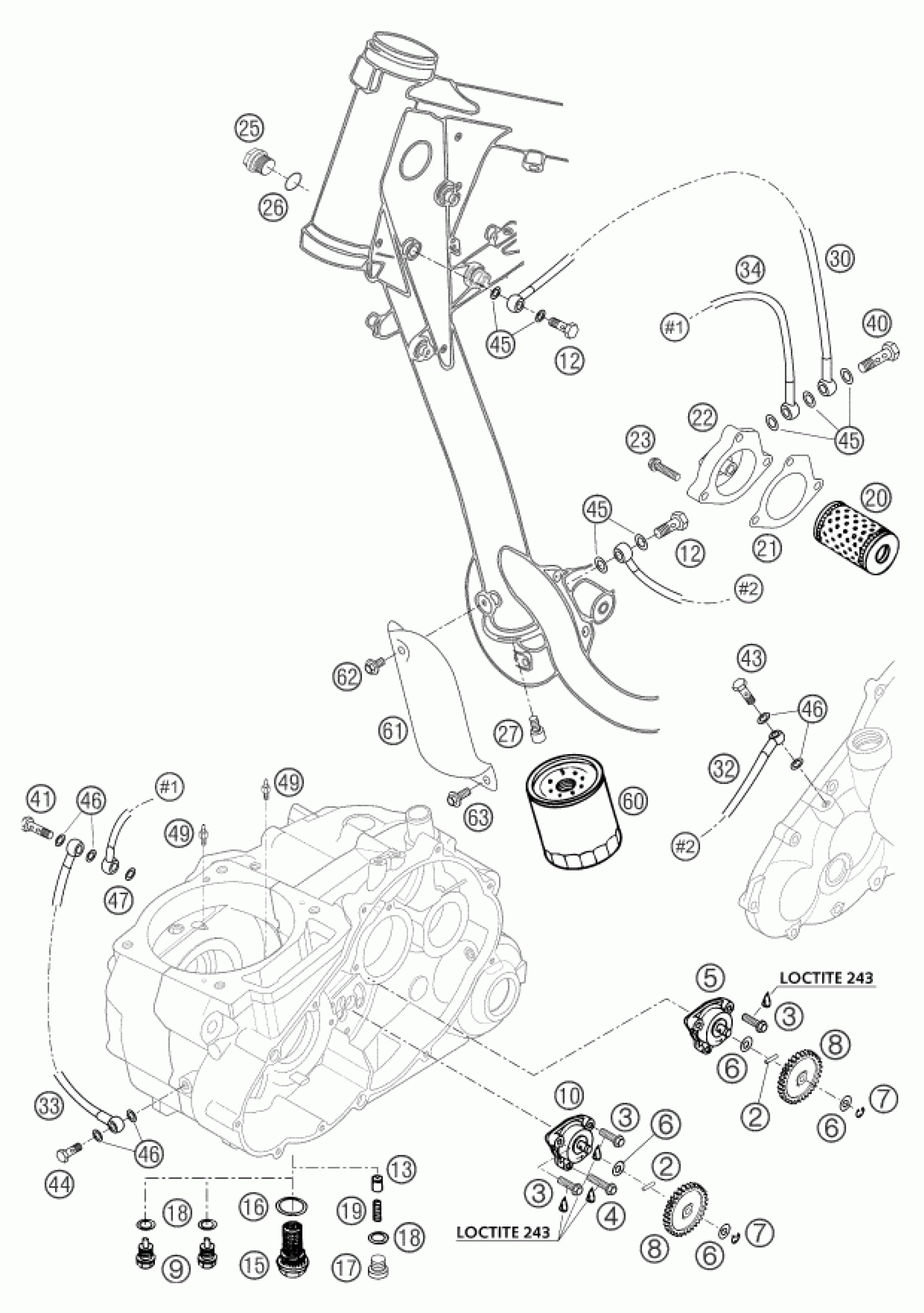

KTM 660 SMC 2004 LUBRICATING SYSTEM Diagram

#

Description
Price

2

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

3

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

4

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

5

OIL PUMP MIKUNI G-73-10

58038007700

Unavailable

6

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

7

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

8

OIL PUMP GEAR 26-T

58438001000

Unavailable

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

10

OIL PUMP MIKUNI G-185 660 99

58538007000

Unavailable

12

HOLLOW SCREW M10 X 1

54313025000

Unavailable

13

VALVE PISTON D=10MM

58038028000

Unavailable

15

OIL DRAIN PLUG M22X1,5

58038019100

Unavailable

16

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

17

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

18

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

19

OIL PRES.SPRING 5 BAR RED 2001

58538023000

Unavailable

20

OIL FILTER LONG

58038005000

Unavailable

21

OIL FILTER COVER GASKET 2001

58530041000

Unavailable

22

OIL FILTER COVER 2001

58030008700

Unavailable

23

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

25

PLUG DIN0910-M16X1,5

0910160153

Unavailable

26

CU-SEAL RING 16X22X2

0603162220

Unavailable

27

AH SCREW DIN7984-M 6X10

0984060103

Unavailable

30

OIL LINE FILTER-FRAME TUBE

58038234700

Unavailable

32

OIL LINE CLUTCH COVER-FRAME

58338034100

Unavailable

33

OIL LINE CASE L/S R/S 260MM 01

58538044000

Unavailable

40

DUAL BANJO BOLT M10 X 1

58038033100

Unavailable

41

DUAL BANJO BOLT M8x1

58038033000

Unavailable

34

OIL LINE FILTER/INJECT.VA. R/S

58038334600

Unavailable

43

JET SCREW M 8 X 1 ''150''

58038130000

Unavailable

44

BANJO BOLT M8 X 1 DIN7643

58038030000

Unavailable

45

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

46

COPPER Gask.DIN7603- 8.2X13X1

0603082131

Unavailable

47

COPPER GASKET 8,2X12X2 MM 2001

0603821220

Unavailable

49

OIL JET 70 M6X0,75 WS8 03

60030064070

Unavailable

60

SCREW TYPE FILTER LC4'

58338045000

Unavailable

61

COVER OIL FILTER '94

58303010000

Unavailable

62

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

63

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable
