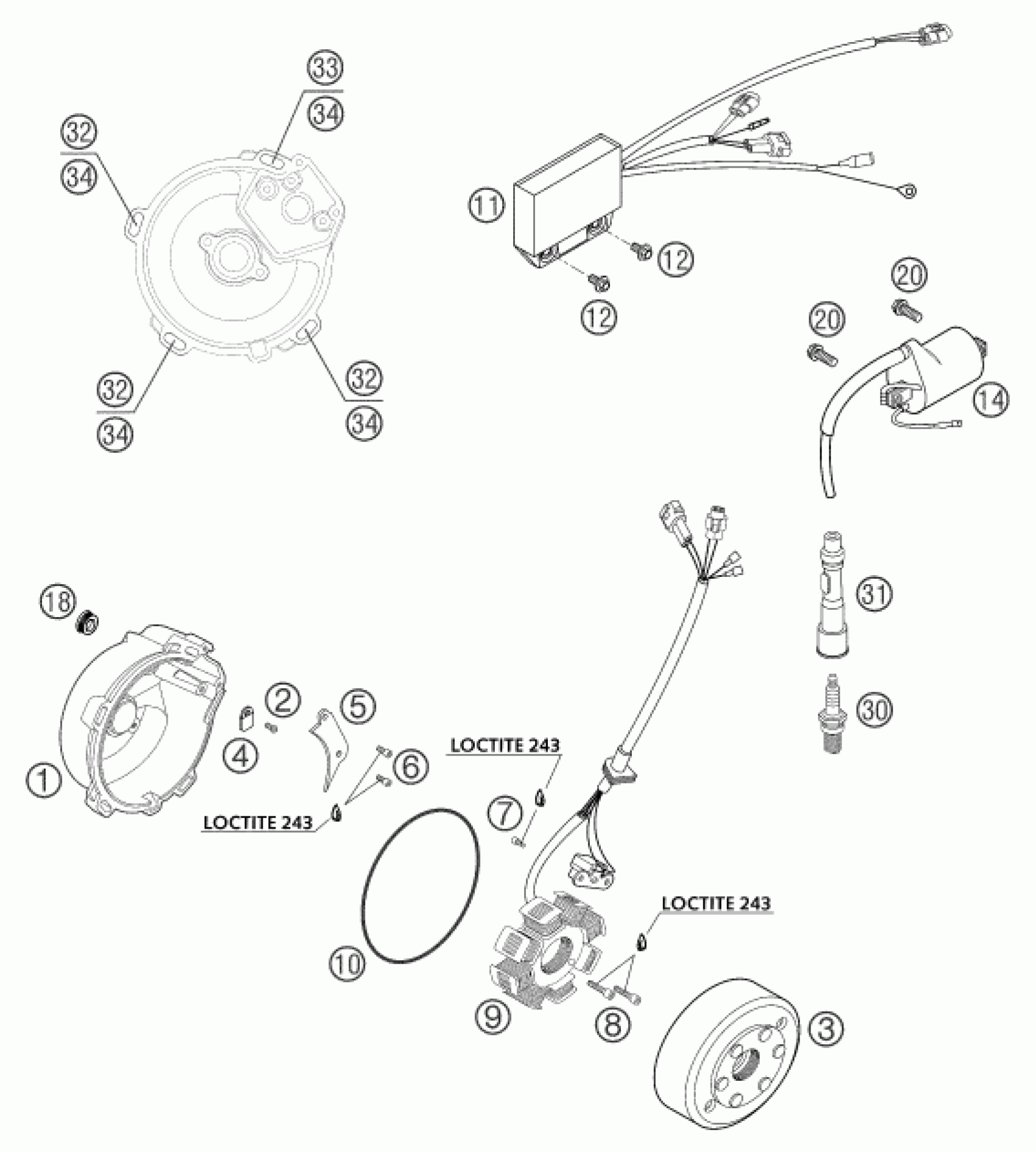

KTM 660 SMC 2004 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER 4K3 GREY 03

5833000200023

Unavailable

2

SPECIAL SCREW DIN7500-M 5X 8

0500050083

Unavailable

3

FLYWHEEL KOKUSAN 660 SM 04

58639005100

Unavailable

4

RETAINING PLATE

50031003000

Unavailable

5

CLOSING COVER 4K3

58330002050

Unavailable

6

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

7

AH SCREW DIN0912-M 5X15

0912050153

Unavailable

8

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

9

STATOR KOKUSAN 4K3 SC 2002

58339004100

Unavailable

10

O-RING 126,72X1,78 B70

0770020490

Unavailable

11

DIGITAL BOX 660 SUPERMTOTO 03

58339031200

Unavailable

12

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

14

Ignition coil

58439006000

Unavailable

18

PLUG M18X1,5

58030002050

Unavailable

20

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

30

SPARK PLUG NGK DCPR8E 03

59039093100

Unavailable

31

SPARK PLUG CONNECT. 03

58439090000

Unavailable

32

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

33

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

34

WASHER DIN0125-A 6,4

0125060003

Unavailable
