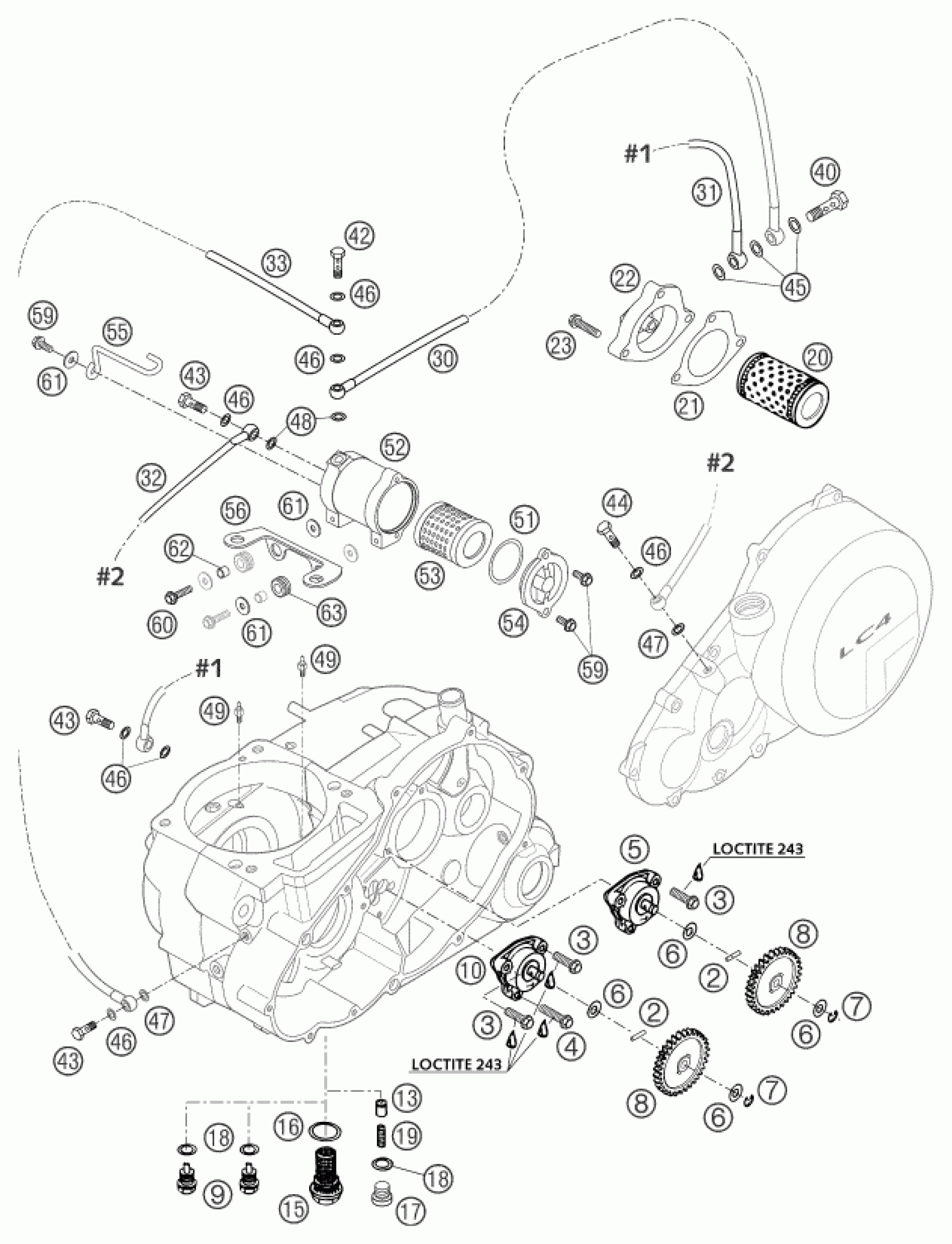

KTM 660 SMC 2003 LUBRICATING SYSTEM Diagram

#

Description
Price

2

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

3

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

4

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

5

OIL PUMP MIKUNI G-73-10

58038007700

$97.42

6

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

7

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

8

OIL PUMP GEAR 26-T

58438001000

$9.53

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

10

OIL PUMP MIKUNI G-185 660 99

58538007000

Unavailable

13

VALVE PISTON D=10MM

58038028000

$37.77

15

OIL DRAIN PLUG M22X1,5

58038019100

$26.97

16

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08

17

threaded plug DIN 908 M12x1.5

0908120153

$4.11

18

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

19

OIL PRES.SPRING 5 BAR RED 2001

58538023000

$7.94

20

OIL FILTER LONG

58038005000

Unavailable

21

OIL FILTER COVER GASKET 2001

58530041000

$7.00

22

OIL FILTER COVER 2001

58030008700

$126.79

23

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

30

OIL LINE FILTER-MICRO FILTER

57338036000

Unavailable

31

OIL LINE FILTER/INJECT.VA. R/S

58038334600

$27.71

32

OIL LINE JUNC.B-CRANK.300MM 01

58538046000

$23.98

33

OIL LINE MICRO F.-INJECT.V.L/S

57338037000

Unavailable

40

DUAL BANJO BOLT M10 X 1

58038033100

$12.80

42

DUAL BANJO BOLT M8x1

58038033000

$6.47

43

BANJO BOLT M8 X 1 DIN7643

58038030000

$5.23

44

JET SCREW M 8 X 1 ''150''

58038130000

$12.89

45

sealing ring DIN 7603 10x14x1

0603100141

$2.05

46

COPPER Gask.DIN7603- 8.2X13X1

0603082131

$2.05

47

CU-SEAL RING 8 X 12 X 1,5

58038032300

$2.05

48

COPPER GASKET 8,2X12X2 MM 2001

0603821220

$1.49

49

OIL JET 70 M6X0,75 WS8 03

60030064070

$11.49

51

O-RING 40,00X2,50 NBR 70

0770400025

$2.05

52

MICRO FILTER HOUSING 02

58338043000

Unavailable

53

OIL FILTER SHORT

59038046000

Unavailable

54

OIL FILTER COVER RACING

59038041000

$14.02

55

HANGER FOR BRAKE HOSE REAR 03

58613073000

$1.93

56

BRACKET FOR MICRO FILTER 02

57338040000

Unavailable

59

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

60

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

61

washer DIN 9021 A - 5.3

0021050003

$1.49

62

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

63

rubber grommet D=8mm open

31008060000

$2.05
