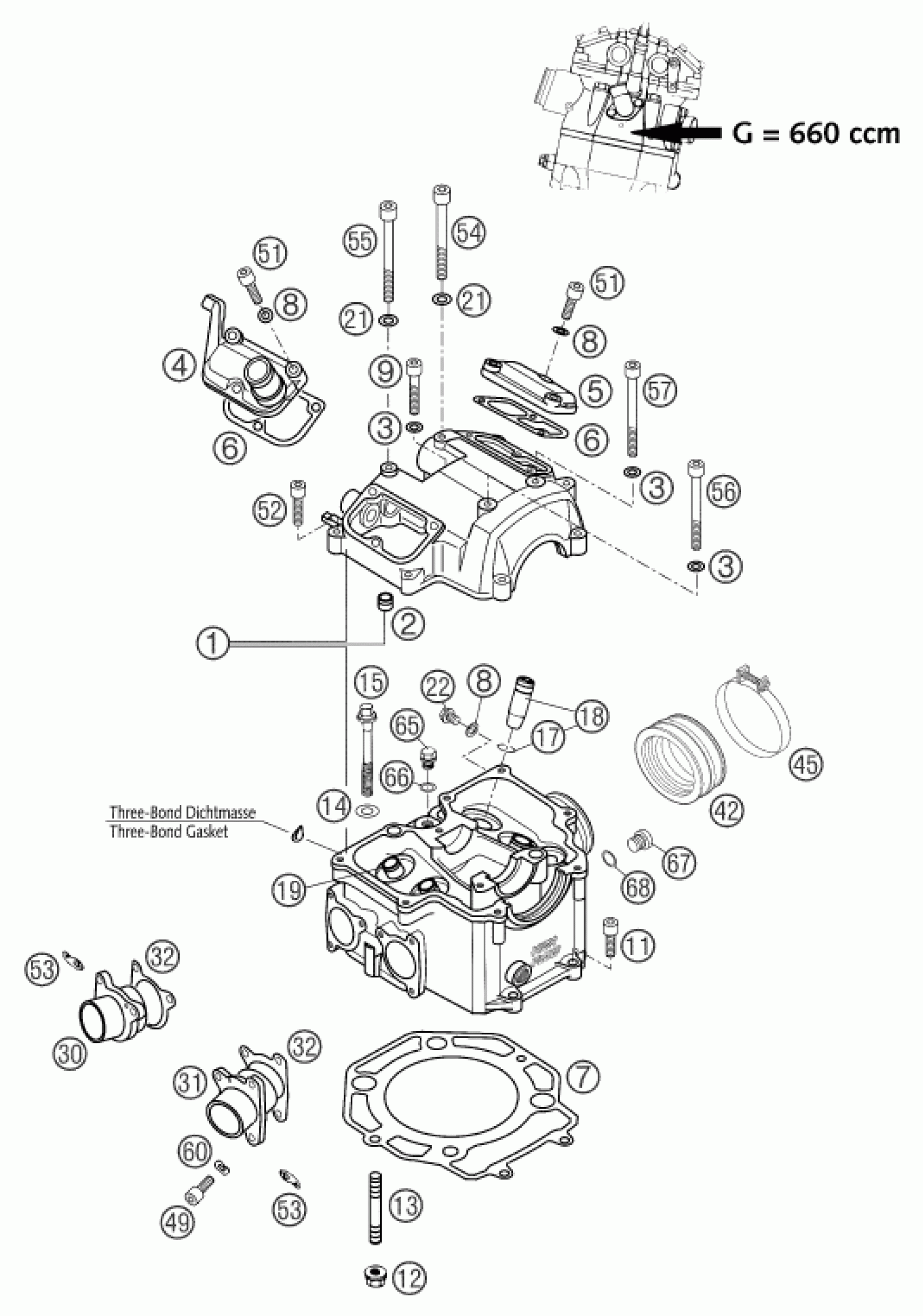

KTM 660 SMC 2003 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL. SM

5863602000023

Unavailable

2

DOWEL BUSHING 9,8X7,2X10

58530090000

$2.05

3

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05

4

VALVE COVER FRONT '99

58036152600

$27.38

5

VALVE COVER REAR

58036052000

$36.15

6

VALVE COVER GASKET

58036053000

$4.11

7

CYLINDER HEAD GASKET 102,3MM

58530036000

$61.61

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

AH SCREW DIN0912-M 6X35

0912060353

$2.05

11

AH SCREW DIN0912-M 6X25

0912060253

$2.05

12

COLLAR NUT M8

49030028000

$3.08

14

CU-SEAL RING 10 X 20 X 1

58036098000

$2.05

15

COLLAR SCREW M10X80 WS=13 10.9

58036099100

$10.46

13

STUD DIN0835-M 8X40

54330043000

$4.35

17

CIRCLIP DIN7993-RW12

0993012000

$3.08

18

VALVE GUIDE INTAKE CPL.

58036026644

$13.94

19

VALVE GUIDE EXHAUST CPL.

58036126644

$22.15

21

CU-SEAL RING DIN7603- 7X12X2

0603070122

$2.05

22

HH COLLAR SCREW M 6X8 WS=8

0015060083

$2.05

30

EXHAUST FLANGE R/S

58036040000

$30.15

31

EXHAUST FLANGE L/S

58036140000

$29.45

32

EXHAUST FLANGE GASKET

58036041000

$4.11

42

INTAKE BOOT RALLYE 2001

58536044000

$37.11

45

CLAMP D=56MM B=9MM M4X25

59030061000

$5.23

49

AH SCREW DIN0912-M 6X16

0912060163

$1.49

51

AH SCREW DIN0912-M 6X20

0912060203

$2.05

52

AH SCREW DIN0912-M 6X25

0912060253

$2.05

53

RETAINING PLATE

51005074000

$3.08

54

AH SCREW DIN0912-M 7X55 12.9

0912070553

$7.38

55

AH SCREW DIN0912-M 7X60 12.9

0912070603

$5.80

56

SHCS DIN 912 M6x65

0912060653

$2.05

57

AH SCREW DIN0912-M 6X70

0912060703

$1.49

60

spring washer DIN 137 B - 6

0137060003

$2.05

65

PLUG DIN0910-M 10X1

0910100003

$4.11

66

sealing ring DIN 7603 10x14x1

0603100141

$2.05

67

threaded plug DIN 908 M12x1.5

0908120153

$4.11

68

o-ring 10.00x2.00 silicone

0770100020

$2.05
