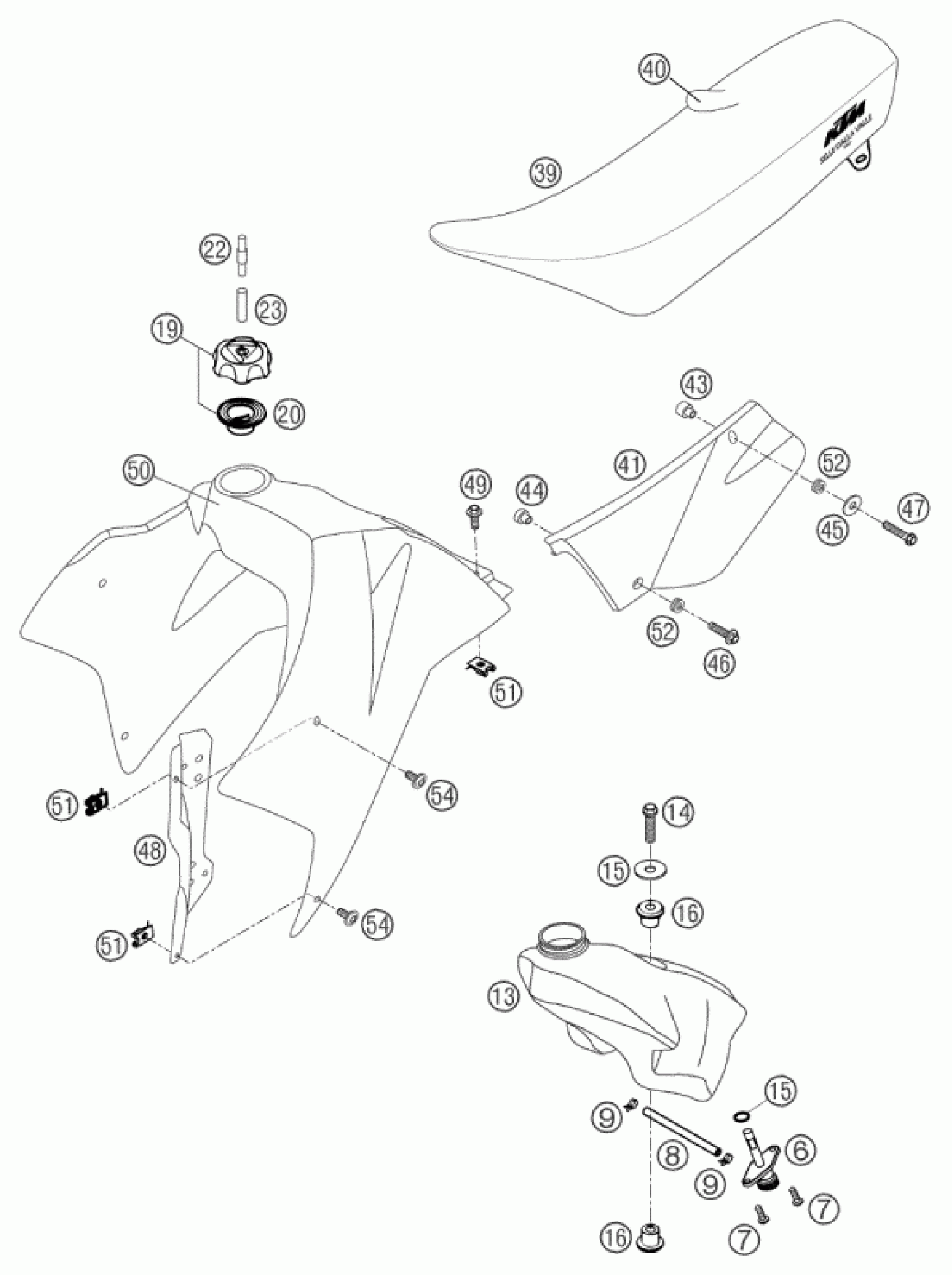

KTM 660 SM FACTORY REPLICA 2002 TANK, SEAT Diagram

#

Description
Price

5

O-RING 11X1,8 NBR 70

55007006200

Unavailable

6

FUEL COCK CPL. SM. RALLYE'96

58507003000

Unavailable

7

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

8

HOSE ID 7,5 PER METER

54435024001

Unavailable

9

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

13

FUEL TANK 660 SM

57307013000

Unavailable

14

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

15

WASHER DIN9021-A 8,4

0021080003

Unavailable

16

rubber bushing

56401040000

Unavailable

19

FILLER CAP CPL. WITH VALVE

59007008044

Unavailable

20

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

22

VALVE FOR TANK BREATHING 02

57307019000

Unavailable

23

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

39

SEAT 660 SM FACTORY REP. 02

57307040000

Unavailable

40

SEAT COVER 660 SM 02

57307040050

Unavailable

41

SIDE COVER L/S 660 SM 02

5730804100049

Unavailable

41

SIDE COVER R/S 660 SM 02

5730804200049

Unavailable

43

SPACER 6,2X8,7X19

57308007050

Unavailable

44

SPACER 6,2X8,7X15,5

57308007051

Unavailable

45

Washer DIN9021-A 6.4

0021060003

Unavailable

46

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

47

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

48

AIR DEFLECTOR 660SM FACTORY 02

57335011000

Unavailable

49

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

50

TANK COVER/SPOILER 660 SM 02

5730702500049

Unavailable

51

clip nut M6

54603048100

Unavailable

52

rubber grommet D=8mm open

31008060000

Unavailable

54

FLAT H. SCREW HEX. M6X12 BLACK

57307025050

Unavailable
