SWING ARM

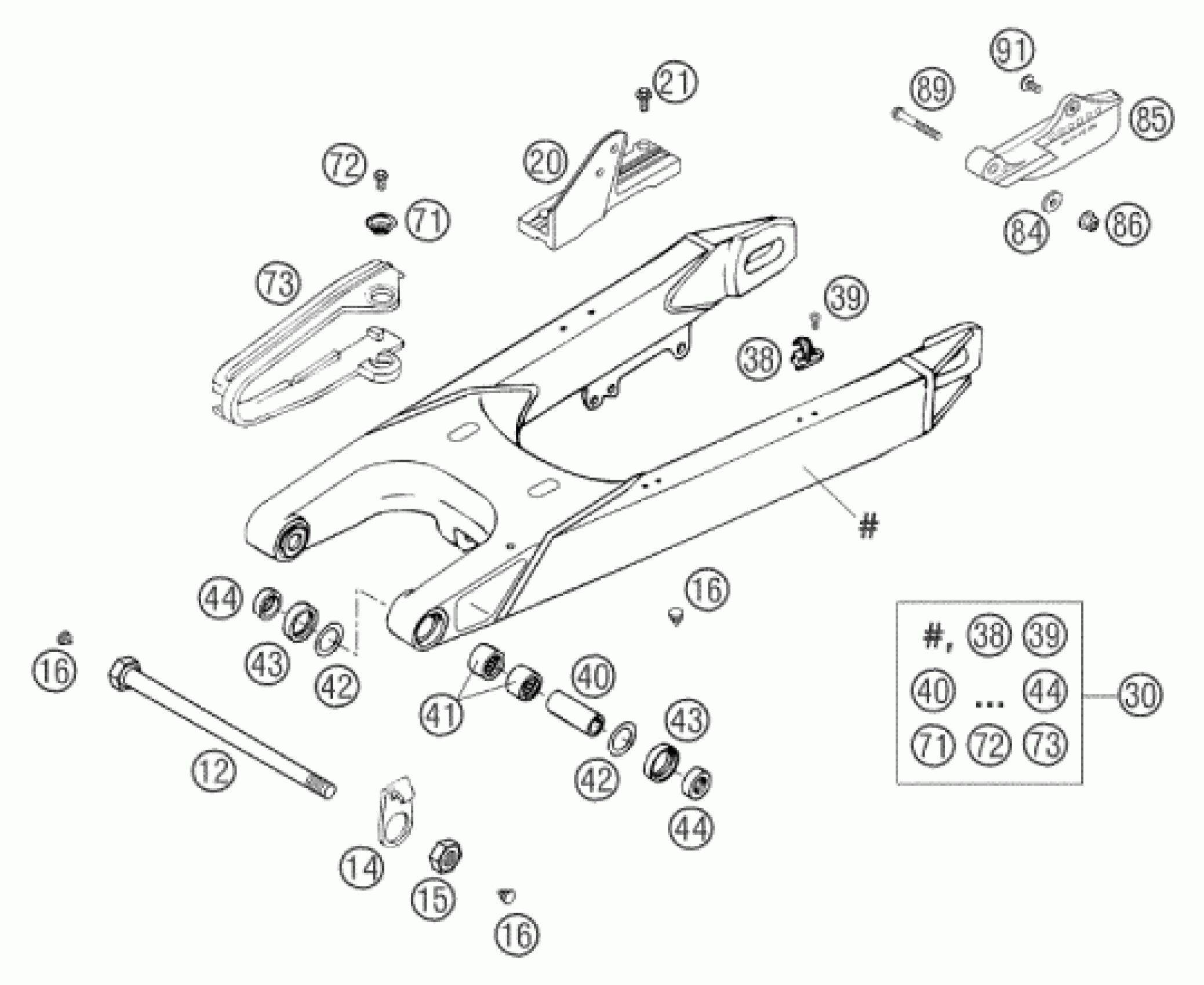

KTM 660 SM FACTORY REPLICA 2002 SWING ARM Diagram
#
Description
Price
12
54603014000
Unavailable
14
BRAKE HOSE GUIDE '89
50230211000
$3.98
15
HEXAGON NUT DIN934 M14x1,5
0934141503
Unavailable
16
PLASTIC CAP SFL10
54403135000
Unavailable
20
CHAIN SLIDING GUARD 660SM 02
57304066000
Unavailable
21
HH COLLAR SCREW M 6X15 WS=8
0014060153
$3.08
30
SWINGARM CPL. 660 SM FACTORY02
57304030044
Unavailable
38
RETAIN.CLAMP FOR BRAKE HOSE'96
54611076100
$2.05
39
SPECIAL SCREW M 5,0X10
0010050103
$2.05
40
BUSHING SLEEVE 15X20X38,75
50203081700
$17.20
41
NEEDLE BUSH HK2012V
59004031000
$15.51
42
STOP DISK 22,2X31,7X0,8 2000
59004033000
Unavailable
43
radial shaft seal 25x32x7
0760253270
$6.63
44
BUCKET F.SHAFTSEALRING 15X25X9
54603090000
$12.43
71
BUCKET
72210079000
$3.00
72
HH COLLAR SCREW M 6X10 WS=8
0015060103
$3.08
73
CHAIN SLIDING GUARD DUKE'94
58307073000
$26.83
84
STEEL WASHER 6,4X17X3
50232050001
$5.23
85
CHAIN GUIDE CPL. REAR LC4 '98
58404070000
$20.41
86
Self locking nut M6 - 10
56509064100
$2.05
89
HH COLLAR SCREW M 6X40 WS=8
0015060403
$3.08
91
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
