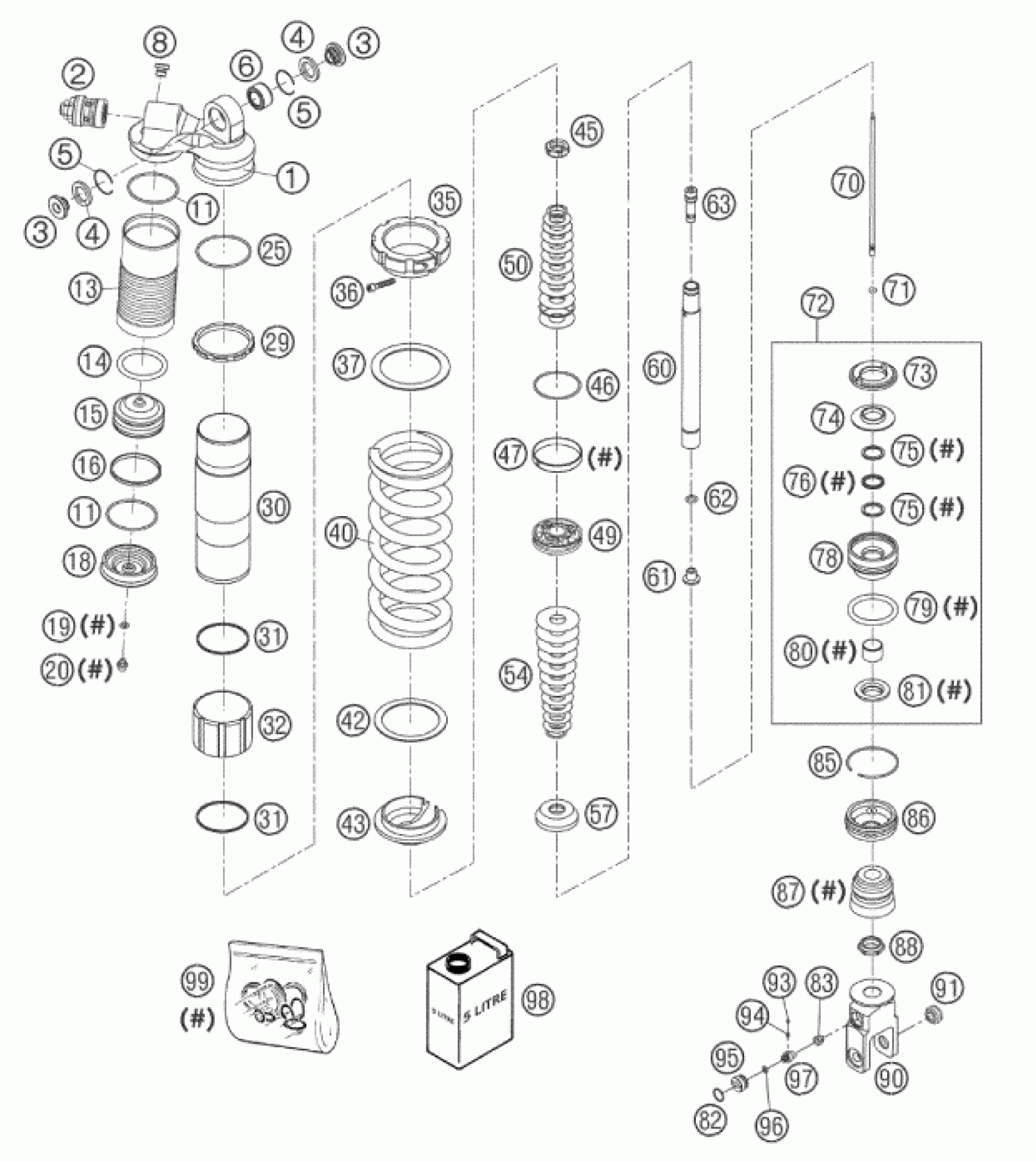

KTM 660 SM FACTORY REPLICA 2002 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

SHOCK ABSOR.CASE TOP H=40 B=19

50180347

Unavailable

2

50180213S4

Unavailable

3

Distance bush 10x15/18/24,5x10

46180010

$4.11

4

Seal ring 19,5x26x3

46180003

$5.60

5

Round-wire snap ring 25x1

50180168

$1.49

6

Ball joint bearing 15x25x13

50180005

$29.35

8

HS cylinder-head screw R1/8 l8

50180095

$2.42

11

O-ring 48x2 NBR70 siliconized

46810016

$1.49

13

RESERVOIR SCREW L=113,5 D=52

50180265

Unavailable

14

O-ring 41x5 Viton75

46180014

$2.05

15

SEPARATION PISTON 16X50X15

50180002

Unavailable

16

Pistonring 47,5x50,5x3,9

46180015

$10.00

18

RESERVOIR CAP D=58

50180236

$115.74

19

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

20

HS lock screw M5x6

36120151

$1.86

25

O-ring 52x2 NBR70

50180097

$2.05

29

RETAINING WASHER

50180241

Unavailable

30

TUBE L=175

50180348

Unavailable

31

spreader ring 50X1,5

50180133

$7.40

32

Spring guide 54,15x60x40

50180081

$5.61

35

ADJUSTING RING M5

50180318

Unavailable

36

AH SCREW DIN0912-M 5X30

0912050303

$1.49

37

INTERMEDIATE RING 50X1,5

50180226

Unavailable

40

SPRING 65-215 D=11,25 STEEL

91310056

Unavailable

42

INTERMEDTIATE RING D=58

50180227

Unavailable

43

SPRING WASHER H=15

50180329

Unavailable

45

Piston rod nut 16x1

50180141

$9.06

46

O-ring 44x,17x1,78 Viton70

50180099

$2.05

47

Piston ring 47,95x49,95x8

50180135

$17.76

49

Piston 16,05x49,6x13,5 4,5/7

50180197

$45.62

50

Shim 16x20x0,30

50180034

$3.08

50

SHIM 16X32X0,15

50180047

$3.08

50

SHIM 16X34X0,15

50180048

$3.08

50

SHIM 16X36X0,15

50180049

$3.08

50

SHIM 16X38X0,15

50180050

$3.08

50

SHIM 16X40X0,15

50180051

$3.08

50

SHIM 16X44X0,20

50180062

$3.08

50

PRESSURE-RING 40X44X0,3

50180315

Unavailable

50

Shim 16x20x0,10

50180006

$3.08

54

Shim 16x20x0,30

50180034

$3.08

54

SHIM 16X30X0,20

50180055

$3.08

54

Shim 16x32x0,2

50180056

$3.08

54

Shim 16x34x0,2 y5

50180057

$3.08

54

SHIM 16X36X0,20

50180058

$3.08

54

Shim 32,25x36x0,30

46811637

$2.05

54

SHIM 16X32X0,15

50180047

$3.08

57

Rebound disc 16x43x13 h10

50180288

$77.26

60

SPINDEL D=18 L=147 M16X1

50180340

$343.53

61

Needle seat 5x12

50180338

$40.98

62

O-ring 8x2 NBR70

48600049

$1.49

63

SPINDELPLUG M11,5X0,5

50180339

Unavailable

70

NEEDLE L=172,5

50180345

Unavailable

71

O-ring 2,2x1,6 Viton75 green

46811265

$1.49

72

ADAPTOR CPL. D=50, H=28,5

50180349S1

$219.19

73

Rubber pad rebound 27x48x8 NBR

50180107

$4.11

74

STEEL DISC 18,5X43,7X6

50180304

$19.47

75

Washer 18x22,5x1,5 plastic

50180102

$8.59

76

X-ring 18x2,62 Viton70

50180101

$15.70

78

ADAPTOR D=50, H=28,5

50180349

Unavailable

79

O-ring 41x5 NBR70

50180103

$1.49

80

Guide bushing 18x20x12

46180119

$6.35

81

Dirt scarper 18mm

50180082

$34.03

82

O-ring 12x1 NBR70

46180013

$2.05

83

Adjustment screw slot rebound

46180016

$38.17

85

Round-wire snap ring 53x1,75

50180126

$1.49

86

CAP D=50

50180211

Unavailable

87

BUMP RUPPER WP60 D=18

50180199

Unavailable

88

Lock nut M18x1 h7,5 WAF24

46180004

Unavailable

90

FORK PART L=71,5 B=32,5

50180346

Unavailable

91

THREADED BUSH M10X1,50 D=18

46810890

Unavailable

93

Steel ball d3

40540603

$1.49

94

SPRING D=2,9, L=6,2

40540602

$3.08

95

Screw cap M16x1

46180005

$27.46

96

O-ring 4x1,5 NBR70

50180222

$1.49

97

Adjustment screw slot rebound

46180006

$22.52

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

99

REP.KIT GASKET 5018 MXMA 02

R12007

Unavailable
