LUBRICATING SYSTEM

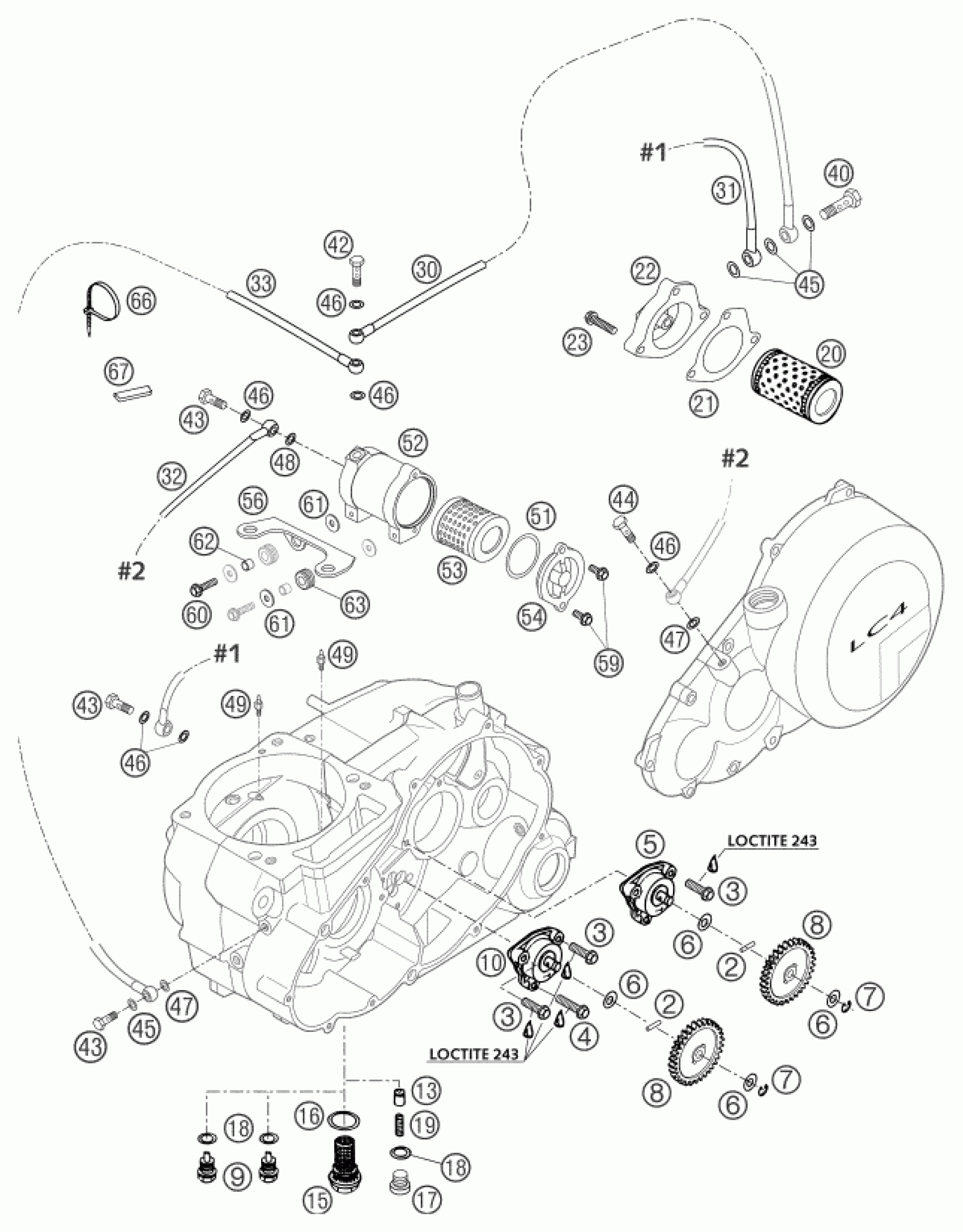

KTM 660 SM FACTORY REPLICA 2002 LUBRICATING SYSTEM Diagram
#
2
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
$1.49
3
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
4
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
5
OIL PUMP MIKUNI G-73-10
58038007700
$97.42
6
STOP DISK 8,1 X 15 X 0,5
58038007755
$2.05
7
TAB WASHER DIN6799-RS 6,0
0799060000
$2.05
8
OIL PUMP GEAR 26-T
58438001000
$9.53
9
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
$11.30
10
OIL PUMP MIKUNI G-185 660 99
58538007000
Unavailable
13
VALVE PISTON D=10MM
58038028000
$37.77
15
OIL DRAIN PLUG M22X1,5
58038019100
$26.97
16
CU-SEAL RING DIN7603-22X27X2
58038017100
$3.08
17
threaded plug DIN 908 M12x1.5
0908120153
$4.11
18
CU-seal ring DIN7603-12X18X1.5
58038022000
$2.05
19
OIL PRES.SPRING 5 BAR RED 2001
58538023000
$7.94
20
OIL FILTER LONG
58038005000
Unavailable
21
OIL FILTER COVER GASKET 2001
58530041000
$7.00
22
OIL FILTER COVER 2001
58030008700
$126.79
23
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
30
OIL LINE FILTER-MICRO FILTER
57338036000
Unavailable
31
OIL LINE FILTER/INJECT.VA. R/S
58038334600
$27.71
32
OIL LINE JUNC.B-CRANK.300MM 01
58538046000
$23.98
33
OIL LINE MICRO F.-INJECT.V.L/S
57338037000
Unavailable
40
DUAL BANJO BOLT M10 X 1
58038033100
$12.80
42
DUAL BANJO BOLT M8x1
58038033000
$6.47
43
BANJO BOLT M8 X 1 DIN7643
58038030000
$5.23
44
Jet screw M8x1
59038029000
$7.66
45
sealing ring DIN 7603 10x14x1
0603100141
$2.05
46
CU-SEAL RING DIN7603- 8X12X1
58038032000
Unavailable
47
CU-SEAL RING 8 X 12 X 1,5
58038032300
$2.05
48
COPPER GASKET 8,2X12X2 MM 2001
0603821220
$1.49
49
OIL JET 70 M6X0,75 WS8 03
60030064070
$11.49
51
O-RING 40,00X2,50 NBR 70
0770400025
$2.05
52
MICRO FILTER HOUSING 02
58338043000
Unavailable
53
OIL FILTER SHORT
59038046000
Unavailable
54
OIL FILTER COVER RACING
59038041000
$14.02
56
BRACKET FOR MICRO FILTER 02
58338040000
Unavailable
59
HH COLLAR SCREW M 5X16 WS=8
0015050163
$2.05
60
HH COLLAR SCREW M 5X20 WS=8
0015050203
$2.05
61
washer DIN 9021 A - 5.3
0021050003
$1.49
62
SPACER BUSHING 6,5 X 8 X 7
58011039000
$2.05
63
rubber grommet D=8mm open
31008060000
$2.05
66
Cable tie 200/4.6mm black
44011076200
$1.49
67
BORDER PROTEC. ADVENTURE 2002
58214070150
Unavailable
