Description

Price

1

IGNITION COVER 4K3 BLACK '99

58330002000

Unavailable

2

SPECIAL SCREW DIN7500-M 5X 8

0500050083

Unavailable

3

FLYWHEEL SMS 2002

57339005000

Unavailable

4

RETAINING PLATE

50031003000

$2.61

5

CLOSING COVER 4K3

58330002050

Unavailable

6

AH SCREW DIN0912-M 5X12

0912050123

$2.05

7

AH SCREW DIN0912-M 5X15

0912050153

Unavailable

8

AH SCREW DIN0912-M 6X20

0912060203

$2.05

9

STATOR KOKUSAN 4K3 SC 2002

58339004100

Unavailable

10

O-RING 126,72X1,78 B70

0770020490

$4.11

11

DIGITAL BOX CDI SM 2002

57339031000

Unavailable

12

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

13

ADAPT.CABLE TPS

57311014000

Unavailable

15

POL.REV. CABLE F.GENERATOR 03

57311016000

Unavailable

18

PLUG M18X1,5

58030002050

$6.96

29

ADAPT.CABLE STICK COIL

57311015000

Unavailable

30

SPARK PLUG NGK DR9EA

58539093000

Unavailable

31

STICK COIL (IGN.C./SPA.P.C.)01

58539006000

$296.88

32

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

33

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

34

WASHER DIN0125-A 6,4

0125060003

$1.49

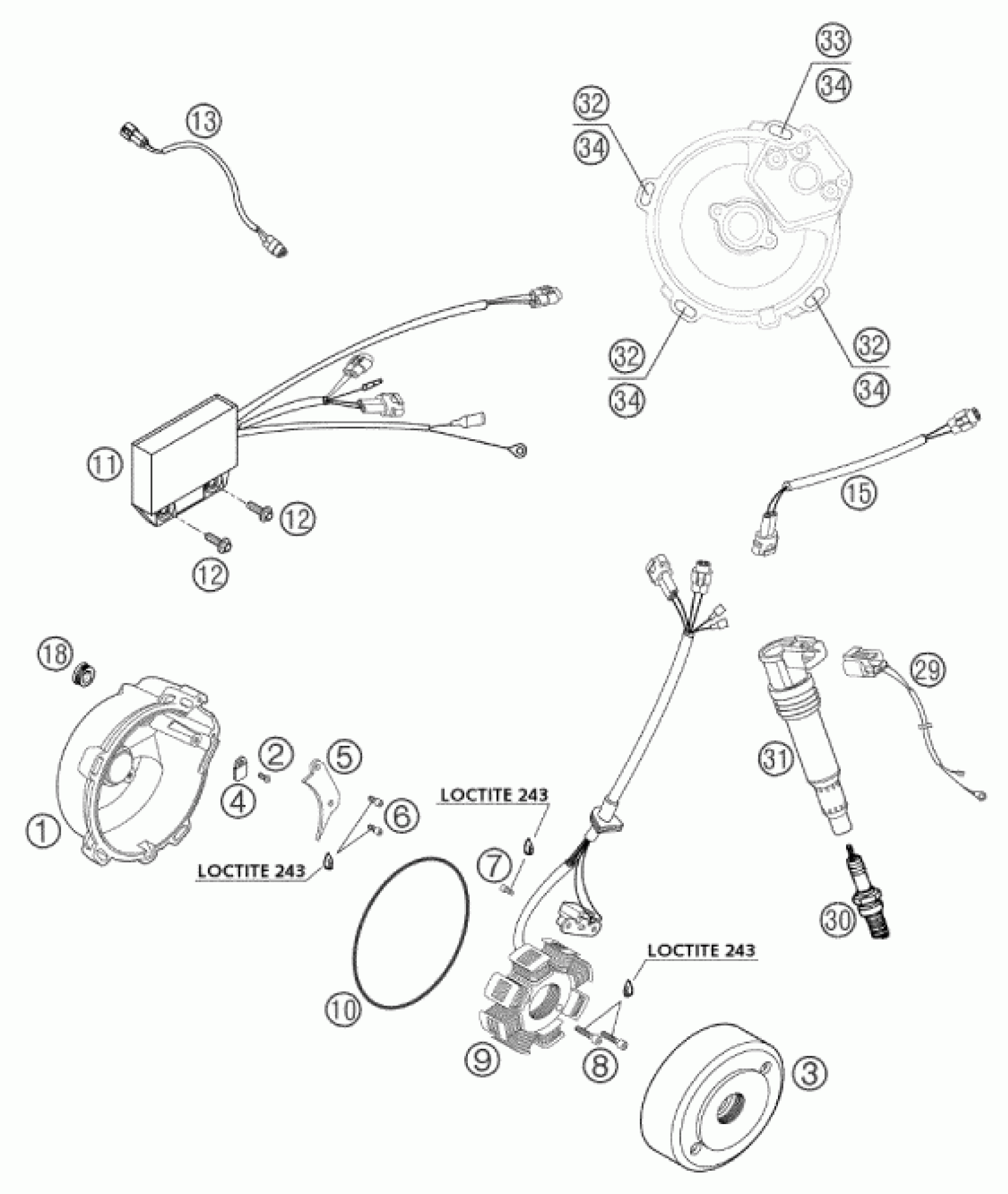

KTM 660 SM FACTORY REPLICA 2002 IGNITION SYSTEM Diagram

IGNITION COVER 4K3 BLACK '99

SPECIAL SCREW DIN7500-M 5X 8

FLYWHEEL SMS 2002

RETAINING PLATE

CLOSING COVER 4K3

AH SCREW DIN0912-M 5X12

AH SCREW DIN0912-M 5X15

AH SCREW DIN0912-M 6X20

STATOR KOKUSAN 4K3 SC 2002

O-RING 126,72X1,78 B70

DIGITAL BOX CDI SM 2002

HH COLLAR SCREW M 6X20 WS=8

ADAPT.CABLE TPS

POL.REV. CABLE F.GENERATOR 03

PLUG M18X1,5

ADAPT.CABLE STICK COIL

SPARK PLUG NGK DR9EA

STICK COIL (IGN.C./SPA.P.C.)01

HH COLLAR SCREW M 6X25 WS=8

HH COLLAR SCREW M 6X30 SW=8

WASHER DIN0125-A 6,4
