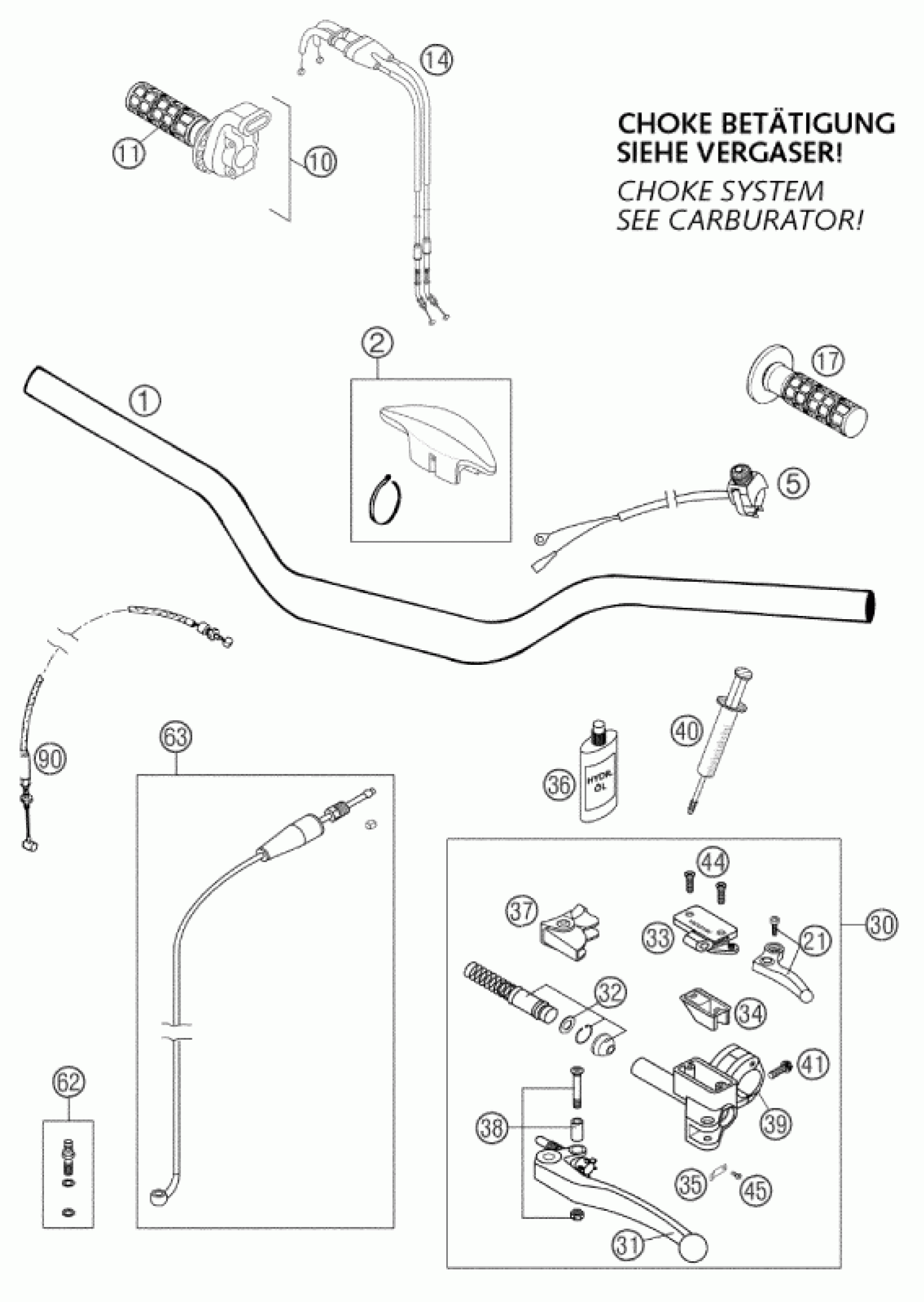

KTM 660 SM FACTORY REPLICA 2002 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

2

HANDLEBAR PAD 05

59002002000

$15.84

5

Kill switch

50311089200

$37.58

10

THROTTLE GRIP CPL.RACING2000

59002010200

$44.59

11

TWIST GRIP COVER DOMINO BLACK

50202003000

$26.17

14

THR.CABLE''OPEN-CLOSE''KEIHIN

59002091300

$76.76

17

FfIXED GRIP DOMINO BLACK '95

50202052000

$26.17

21

LEVER CPL. RACING 2000

59002047000

$23.00

30

MASTERCYLINDER CPL.RACING '00

59002030000

$239.26

31

CLUTCH LEVER CPL. 125-200 '98

50302031000

$40.10

31

CLU.LEVER SHORT CPL. 2T 2000

50302031100

$39.16

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

$62.71

33

COVER HYD.CLUTCH RACING 2000

59002033000

$41.51

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING PLATE FOR LEVER '98

50302035000

$1.90

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

39

CLAMP WITH PIN 2000

50302030150

$33.18

40

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

45

AH SCREW DIN7984-M 3X 6

0984030063

$1.49

62

HOLLOW SCREW F.HYDR.CLUTCH 01

58532062000

Unavailable

63

PIPE KIT CPL. RACING 2000

59032063000

$103.03

90

DECOMPRESSION CABLE LC4 '93

58302094000

$29.35
