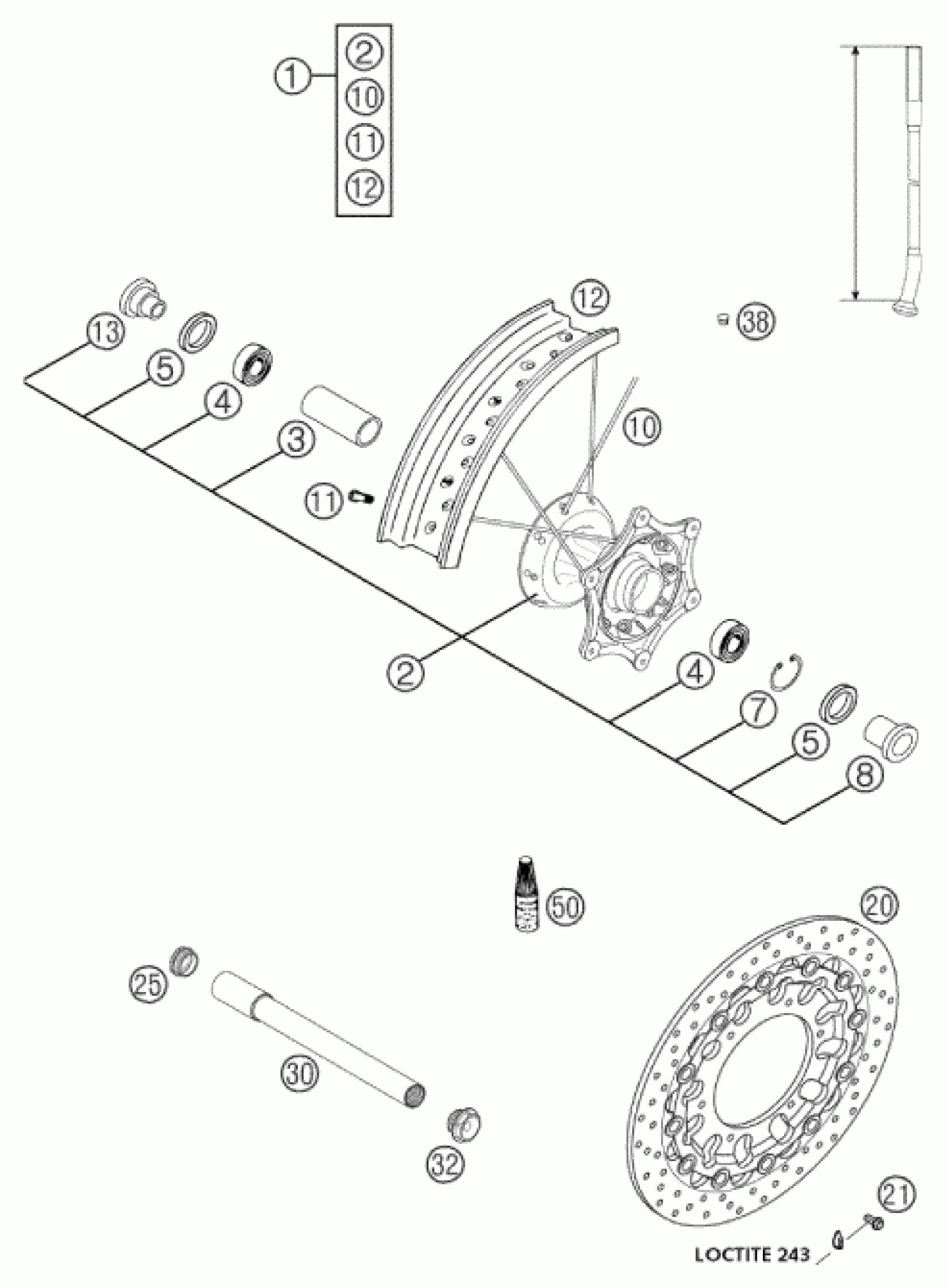

KTM 660 SM FACTORY REPLICA 2002 FRONT WHEEL Diagram

#

Description
Price

1

% FRONT WHEEL CPL. 3,5X17"

57309001044

Unavailable

2

57309010044

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

8

SPACER BUSHING F. FR. WHEEL

54809012000

Unavailable

10

SPOKE M4,5X174-15G 17'' DDE

50309071174

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

12

FRONT RIM 3,5X17''

58409070000

Unavailable

13

SPACER BUSHING F. FRONT WH. 02

57309012000

Unavailable

20

BRAKE DISK FRONT 320MM

57309060000

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

25

PLUG BUSHING WS=27 03

54809081050

Unavailable

30

WHEEL SP. FRO. D=26 660SM 02

57309081000

Unavailable

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
