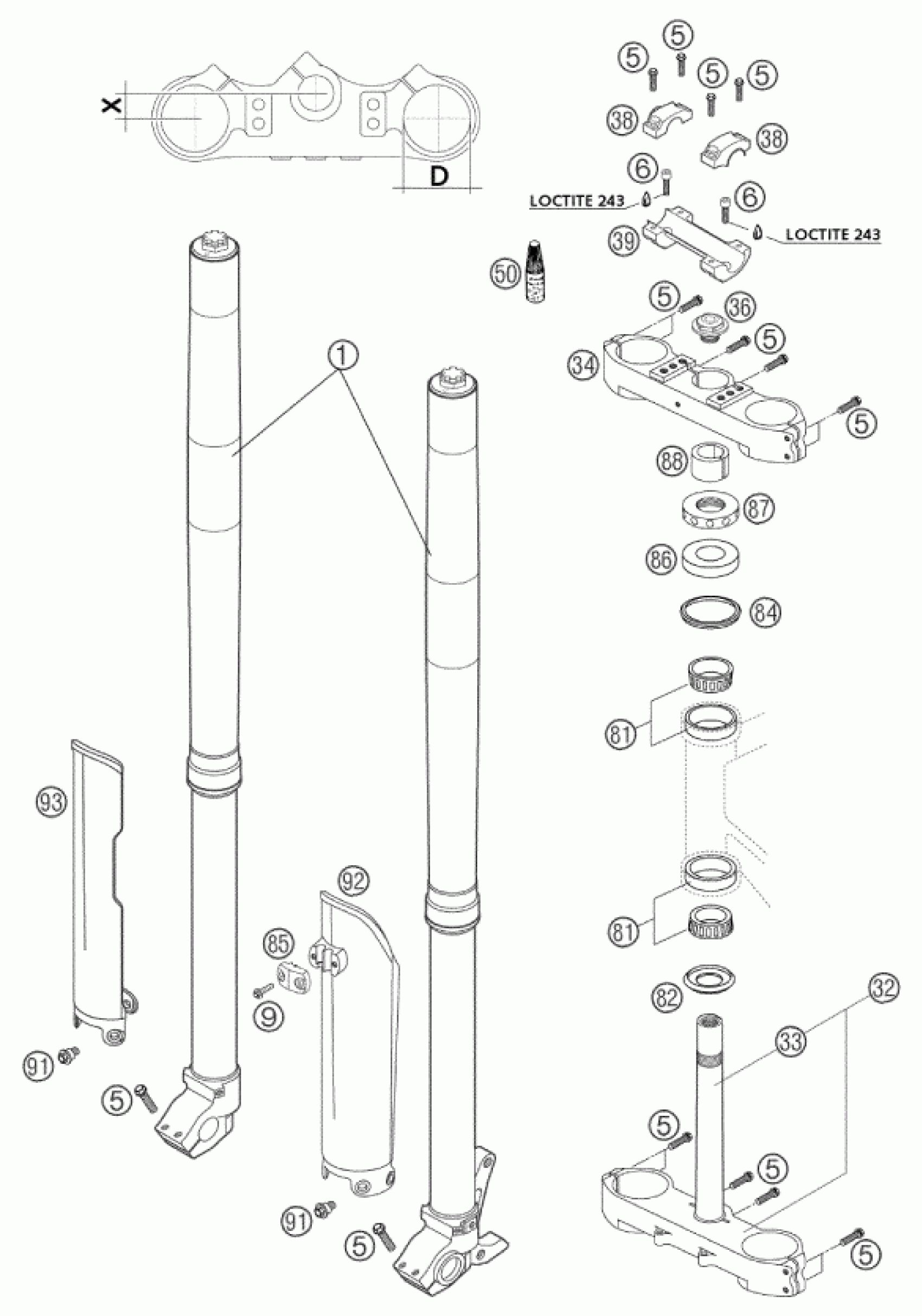

KTM 660 SM FACTORY REPLICA 2002 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

* FORK WP D=48 MM SMS 20

1418W723

Unavailable

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

6

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

9

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

32

LOWER FORK BRIDGE CPL. 02

57301032000

Unavailable

33

FORKE TUBE 660 SM 02

57301033000

Unavailable

34

TOP FORK BRIDGE 660SM 02

57301034000

Unavailable

36

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

Unavailable

38

HANDLEBAR CLAMP D=28MM 2000

59001038200

Unavailable

39

HANDLEBAR SUPPORT 28MM SC'99

59001039100

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

81

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

87

STEER.HEAD NUT 660SM 02

57301036000

Unavailable

88

ECCENTRIC-INSERT TOP 2,5MM 02

57301043000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECTION L/S BLACK 20

59001092100

Unavailable

93

FORK PROTECTION R/S BLACK 20

59001093100

Unavailable
