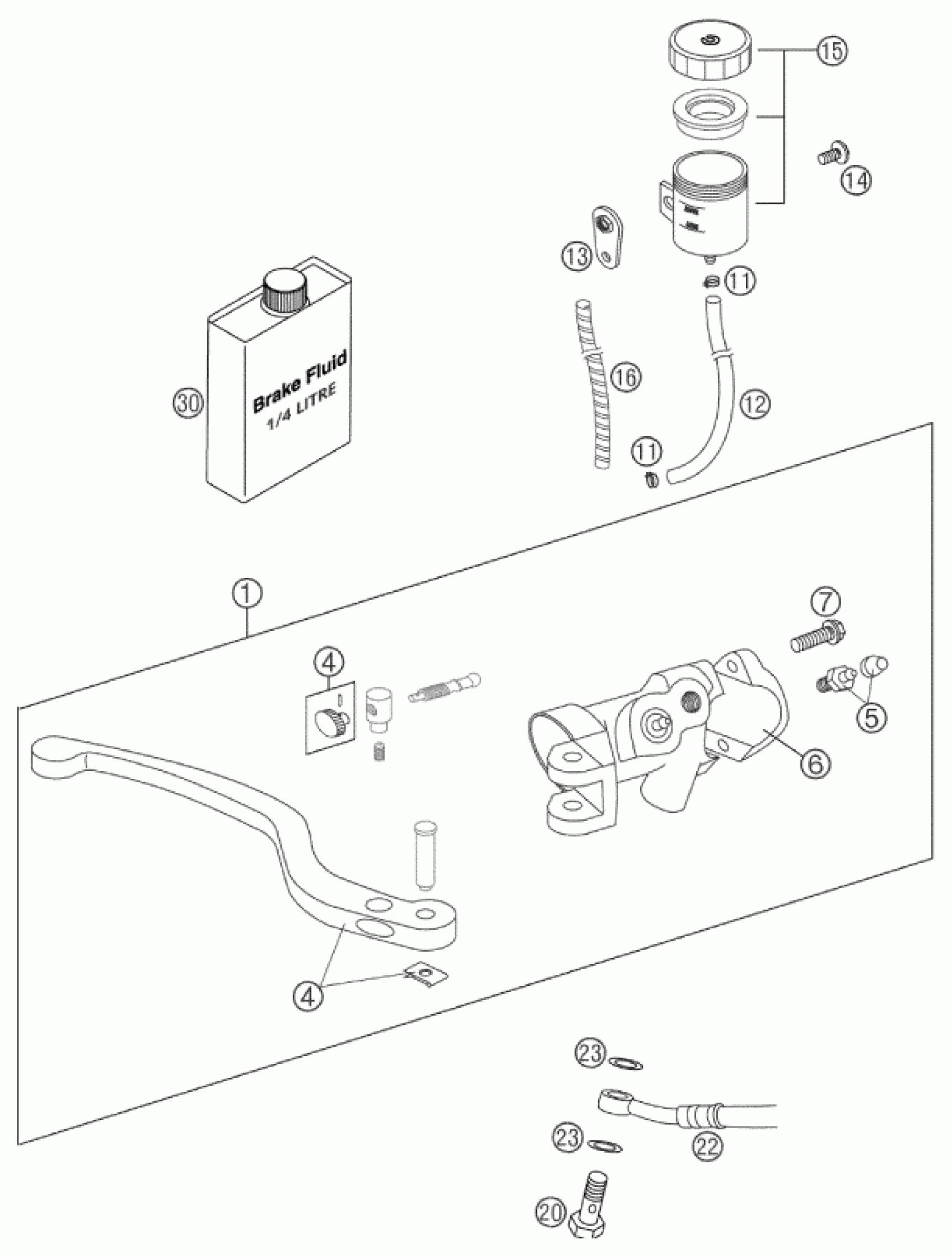

KTM 660 SM FACTORY REPLICA 2002 FRONT BRAKE CONTROL Diagram

#

Description
Price

1

HAND BR.CYL. BREMBO RADIAL 02

57313001000

Unavailable

4

Brake lever

57313002000

Unavailable

5

BLEEDER SCREW CPL. SMS

57313020000

Unavailable

6

CLAMP SMS 2002

57313005000

Unavailable

7

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

11

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

12

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

13

RET.PANEL FLUID RES. FRONT 02

57313001050

Unavailable

14

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

15

BRAKE FLUID RESERVOIR '89

54513030044

Unavailable

16

SPIRAL HOSE D=9MM PER METER

58513001000

Unavailable

20

HOLLOW SCREW M10X1X19

50213025000

Unavailable

22

BRAKE HOSE FRONT L=1197MM 02

57313010000

Unavailable

23

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

30

BRAKE FLUID DOT 4.0

306054

Unavailable
