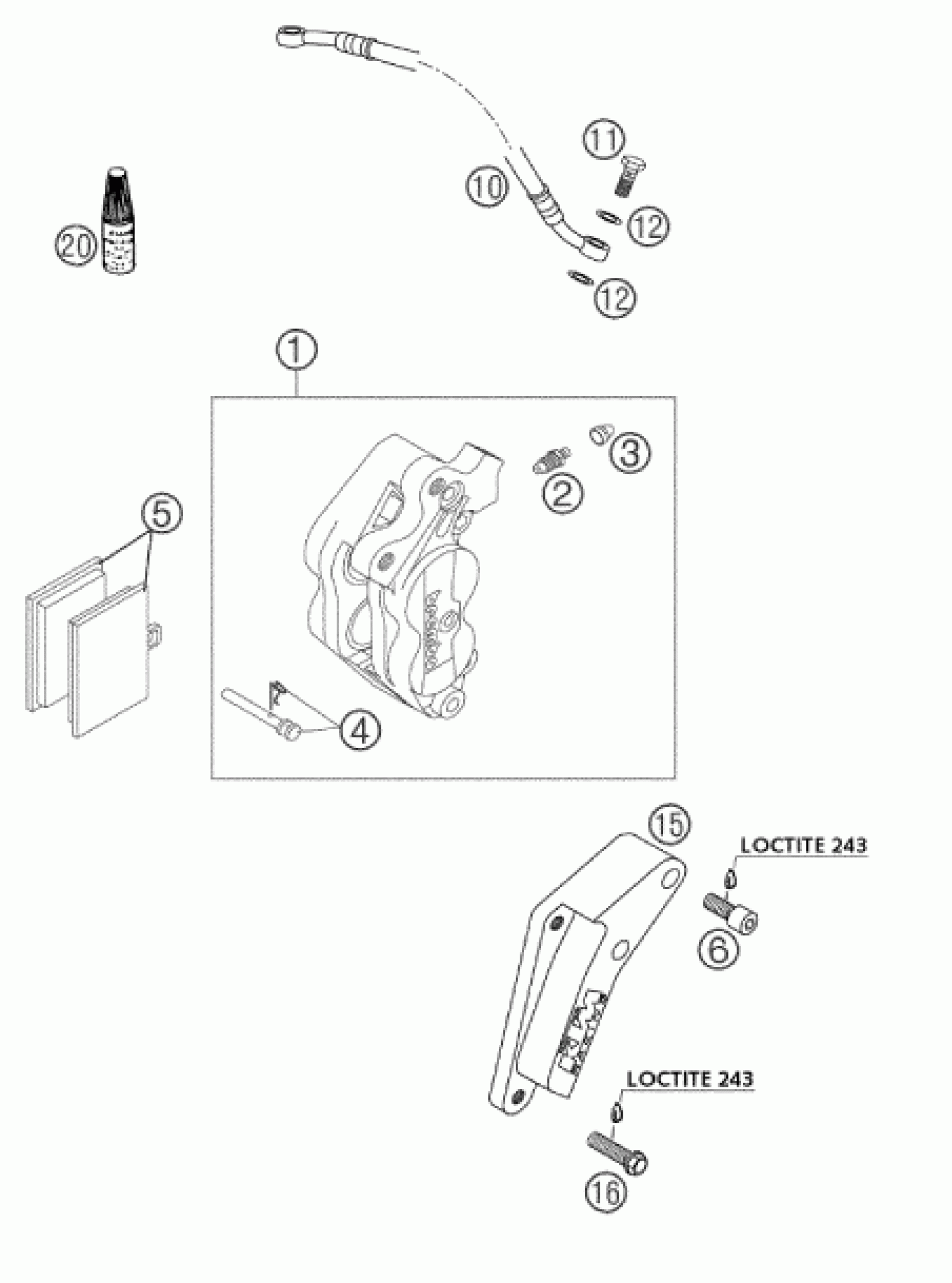

KTM 660 SM FACTORY REPLICA 2002 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER FRONT 660 SM 02

57313015000

Unavailable

2

BLEEDER SCREW SMS 02

57313020100

Unavailable

3

RUBBER CAP F. BL.SCREW SMS 02

57313040000

Unavailable

4

BOLT CPL. SMS 2002

57313017000

Unavailable

5

BRAKE PADS FRONT G.T.P4 34/30

57313030000

Unavailable

6

AH SCREW DIN6912-M10X25,10.9

0912100250

$4.11

10

BRAKE HOSE FRONT L=1197MM 02

57313010000

Unavailable

11

HOLLOW SCREW M10X1X19

50213025000

$6.54

12

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

BRAKE CALIPER ADAPT. 660 SM 02

57313049000

Unavailable

16

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

20

LOCTITE 243 BLUE 5 ML

6899785

$28.04
