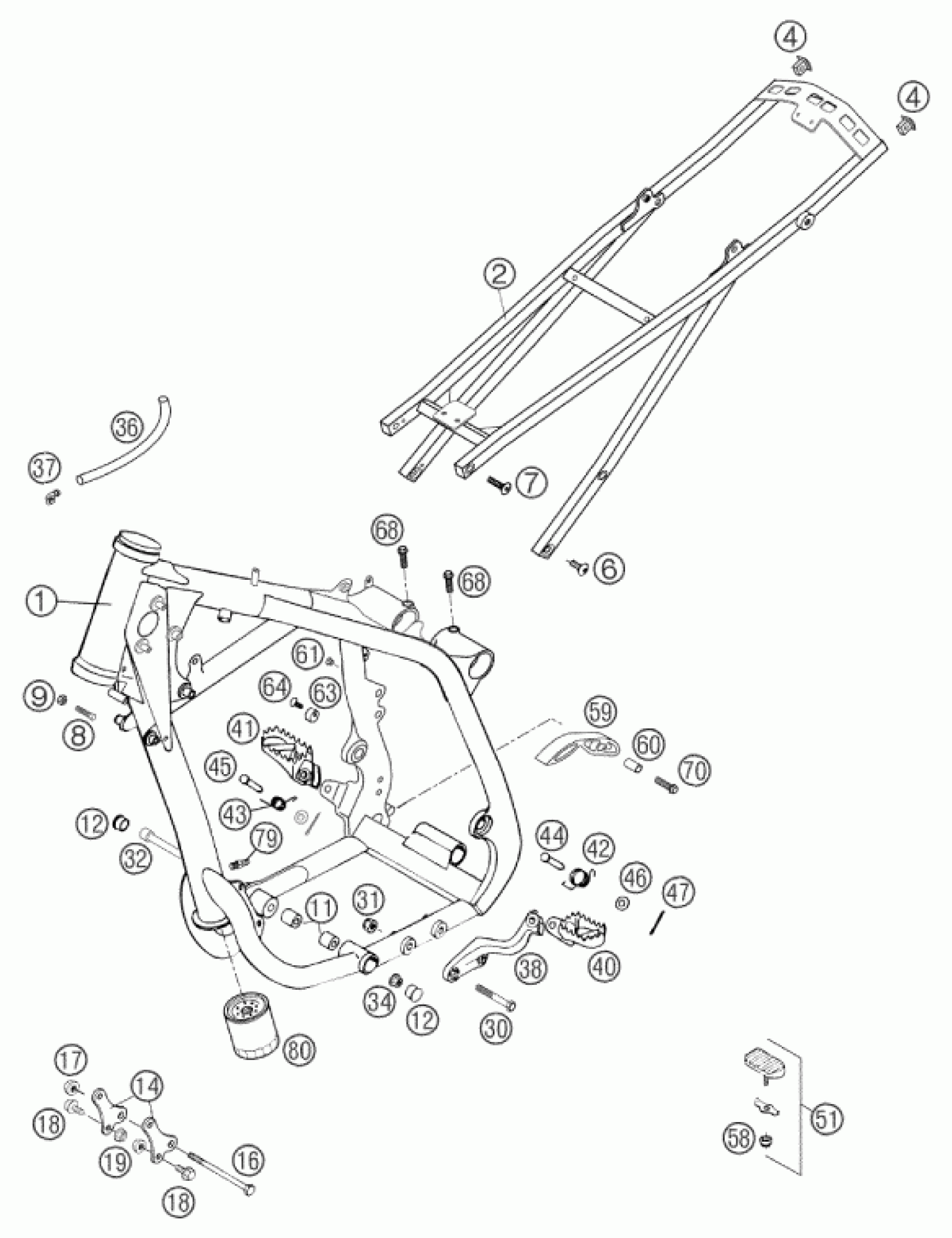

KTM 660 SM FACTORY REPLICA 2002 FRAME Diagram

#

Description
Price

40

FOOTREST L/S BLACK

5830304000030

Unavailable

41

FOOTREST R/S BLACK

5460314000030

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

BOLT FOR FOOTREST

58303044000

Unavailable

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

51

FOOTREST RUBBER CPL. '94

58303045044

Unavailable

58

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

59

CHAIN SLIDING PIECE BELOW '97

51103053000

Unavailable

60

BUSHING 8,2X10X20

51103053051

Unavailable

61

PLASTIC CAP SFL10

54403135000

Unavailable

63

BRAKE LEVER STOP '93

58303063000

Unavailable

64

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

68

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

79

CONNECT. FOR VENTILATION M6 02

57331096052

Unavailable

80

OVERFLOW RESERVOIR SUPERM. 02

57303096000

Unavailable

1

FRAME CPL. 660SM FACTORY 02

5730300104430

Unavailable

2

% SUB FRAME ALU 660 SM FACT.

57303002000

Unavailable

4

PLUG-IN CAP SW14 99

50303002182

Unavailable

6

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

7

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

8

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

9

Hexagon nut DIN934 M8

0934080003

Unavailable

11

SPACER ROLLER 10,3X20X22

58003012000

Unavailable

12

PVC CAP D=22MM

71001012100

Unavailable

14

ENGINE SUPPORT AGW '94

58303055000

Unavailable

16

HH SCREW DIN0931-M10X110

0931101103

Unavailable

17

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

18

HH COLLAR SCREW M 8X16 WS=13

49109481052

Unavailable

19

Self locking nut M8 10.9

54310086200

Unavailable

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

32

AH SCREW DIN0912-M10X160

0912101603

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

36

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

37

ANGLE PIECE '97

50303089000

Unavailable

38

FOOTREST BRACKET L/S BLACK

5830303800030

Unavailable
