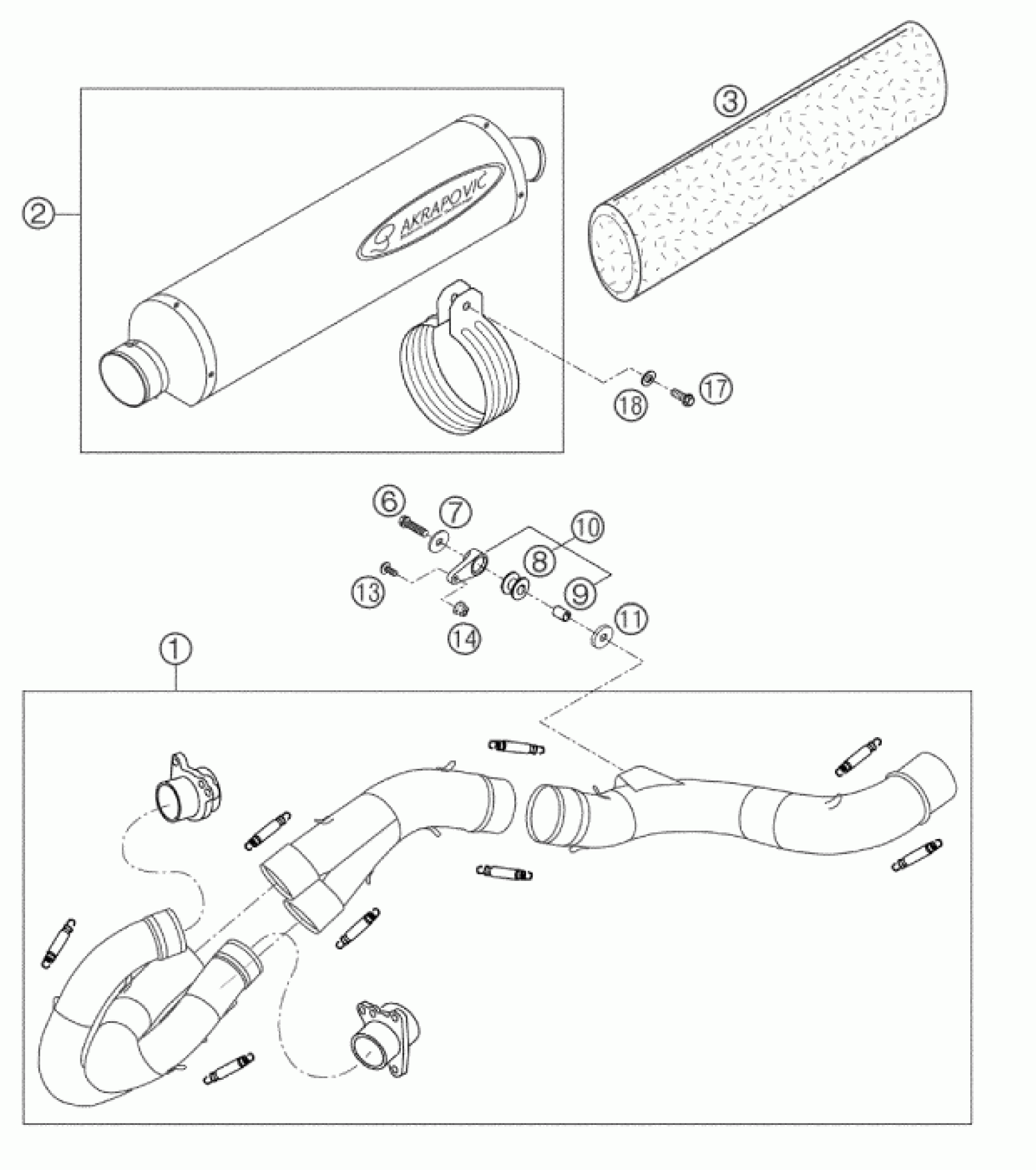

KTM 660 SM FACTORY REPLICA 2002 EXHAUST SYSTEM Diagram

#

Description

Price

1

EXHAUST PIPES L/S+R/S 660SM 02

57305007100

Unavailable

2

% SILENCER LC4 SM TITAN

57305079000

Unavailable

3

% STUFFING YARN 840G L=550MM

57305078840

Unavailable

6

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

7

WASHER DIN9021-A 8,4

0021080003

$1.49

8

damp. component silicone grey

54305068100

$8.31

9

Spacer bushing 8.4X12X16

56505069000

$4.11

10

SIL.BRACKET CPL. LONG 8MM

54305065444

$15.10

11

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

13

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

14

Self locking nut M6 - 10

56509064100

$2.05

17

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

18

washer DIN 125 A -8.4

0125080003

$1.49
