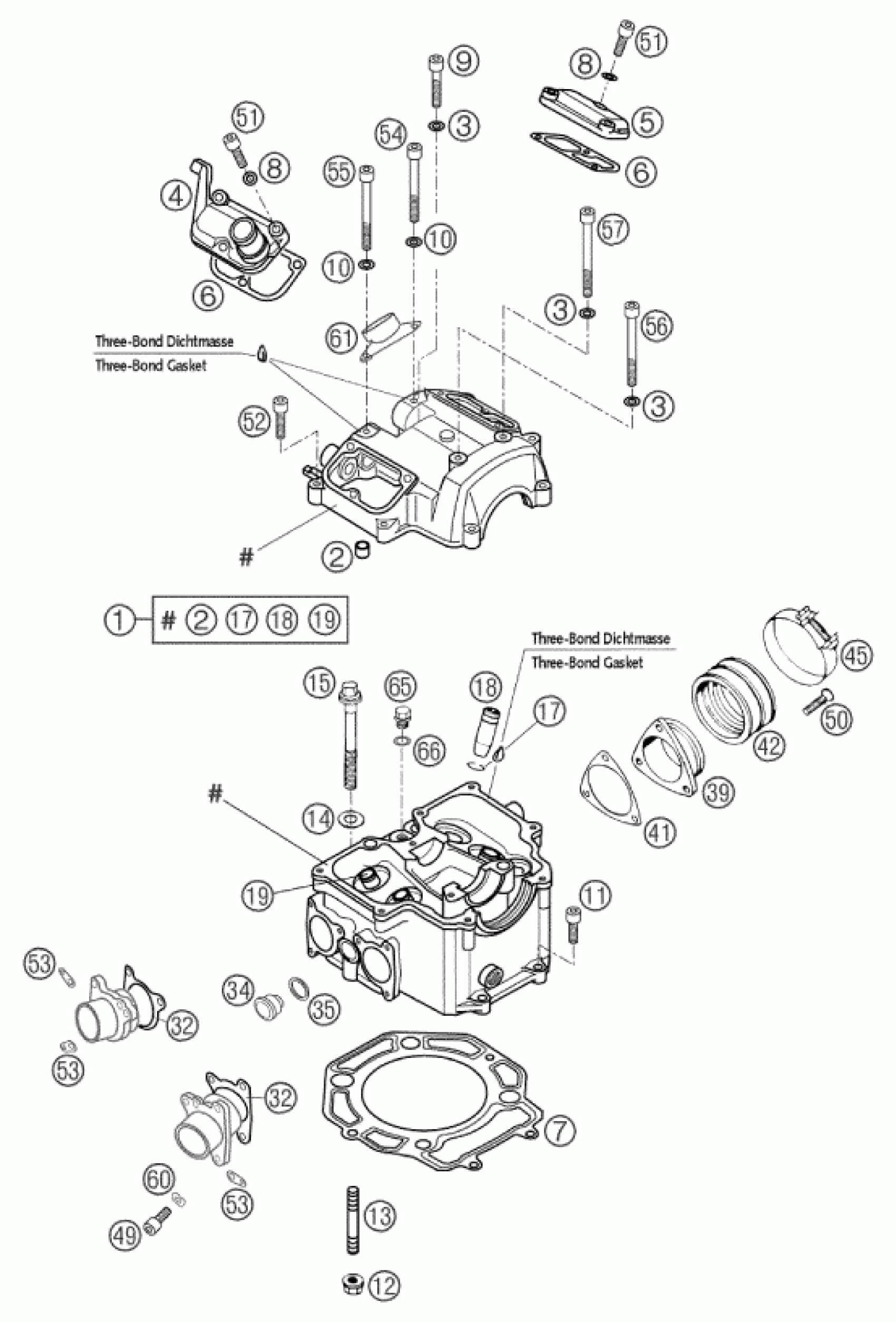

KTM 660 SM FACTORY REPLICA 2002 CYLINDER HEAD Diagram

#

Description
Price

1

% CYLINDER HEAD CPL. SMS

57336020000

Unavailable

2

DOWEL BUSHING 9,8X7,2X10

58530090000

Unavailable

3

CU-SEAL RING 6 X 10 X 2

58036065100

Unavailable

4

VALVE COVER FRONT '99

58036152600

Unavailable

5

VALVE COVER REAR

58036052000

Unavailable

6

VALVE COVER GASKET

58036053000

Unavailable

7

CYLINDER HEAD GASKET D=102 01

58530036100

Unavailable

8

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

9

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

10

CU-SEAL RING DIN7603- 7X12X2

0603070122

Unavailable

11

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

12

COLLAR NUT M8

49030028000

Unavailable

13

STUD DIN0835-M 8X40

54330043000

Unavailable

14

CU-SEAL RING 10 X 20 X 1

58036098000

Unavailable

15

COLLAR SCREW M10X80 WS=13 10.9

58036099100

Unavailable

17

CIRCLIP DIN7993-RW12

0993012000

Unavailable

18

VALVE GUIDE INTAKE

58036026600

Unavailable

19

VALVE GUIDE EXHAUST

58036126600

Unavailable

32

EXHAUST FLANGE GASKET

58036041000

Unavailable

34

PLUG SAS BORE

58336024000

Unavailable

35

CU-SEAL RING 12 X 16 X 2

58436054000

Unavailable

39

INTAKE FLANGE D=43MM 2001

58536042000

Unavailable

41

INTAKE FLANGE GASKET 2001

58536043000

Unavailable

42

INTAKE BOOT RALLYE 2001

58536044000

Unavailable

45

CLAMP D=56MM B=9MM M4X25

59030061000

Unavailable

49

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

50

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

51

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

52

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

53

RETAINING PLATE

51005074000

Unavailable

54

AH SCREW DIN0912-M 7X55 12.9

0912070553

Unavailable

55

AH SCREW DIN0912-M 7X60 12.9

0912070603

Unavailable

56

SHCS DIN 912 M6x65

0912060653

Unavailable

57

AH SCREW DIN0912-M 6X70

0912060703

Unavailable

60

spring washer DIN 137 B - 6

0137060003

Unavailable

61

STICK COIL HOLDER 2001

58539010000

Unavailable

65

PLUG DIN0910-M 10X1

0910100003

Unavailable

66

sealing ring DIN 7603 10x14x1

0603100141

Unavailable
