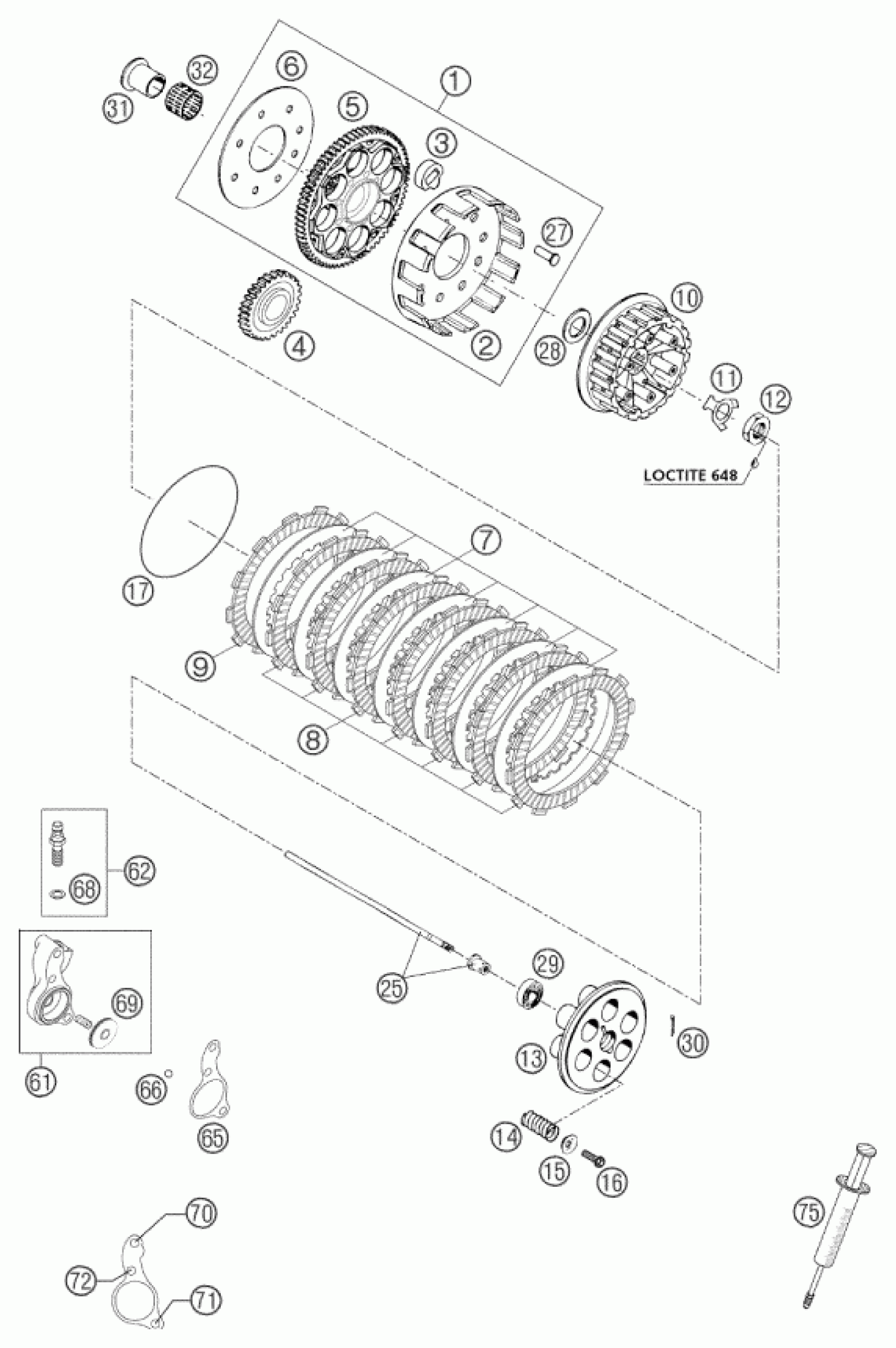

KTM 660 SM FACTORY REPLICA 2002 CLUTCH Diagram

#

Description
Price

1

% OUTER CLUTCH HUB CPL.SMS 02/

57332001144

Unavailable

2

OUTER CLUTCH HUB MILLED SMS 02

57332001000

Unavailable

3

DAMPING ELEMENT RALLYE 2001

58532026000

Unavailable

4

PRIMARY GEAR WHEEL 31-T 2001

58532000131

Unavailable

5

CLUTCH WHEEL 79-T 2001

58532000079

Unavailable

6

BRACKET 57 x 132 x 1,5 '94

58332028000

Unavailable

7

STEEL DISK 1,5 MM LC4'94

58332112000

Unavailable

8

LINING DISK 2,7MM FCC 02

58332011300

Unavailable

9

LINING DISK TURN OUT FCC 02

58332111300

Unavailable

10

INNER CL HUB LC4/LC4-E '98

58332002200

Unavailable

11

LOCK WASHER '94

58332018000

Unavailable

12

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

13

PRESSURE CAP LC4/LC4-E '98

58332003200

Unavailable

14

CLUTCHSPRING 3,0X33,5

58532080000

Unavailable

15

WASHER 6,5 X 20 X 2

58432081000

Unavailable

16

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

17

O-RING 116,00X3,00 HNBR 70

0770116030

Unavailable

25

PUSH ROD L=215MM CPL. 03

57332017044

Unavailable

27

RIVET 6 X 23 X 11,2

58332007000

Unavailable

28

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

Unavailable

29

deep groove ball bearing 6001.

0625060016

Unavailable

30

PIN DIN0094-2,0X16

0094020163

Unavailable

31

INNER RING WITH COLLAR

50332070000

Unavailable

32

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

61

CYLINDER D=25MM CPL. RALLYE 01

58532061044

Unavailable

62

Hollow screw cmpl. M 10x1 98

50332062000

Unavailable

65

CLUTCH RELEASE GASKET 0,75MM

50332065053

Unavailable

66

BALL DIN5401-7

0401070003

Unavailable

68

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

69

PISTON WITH O-RING D=25MM 2001

58532066000

Unavailable

70

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

72

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

75

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

71

AH SCREW DIN6912-M 6X16

0984060163

Unavailable
