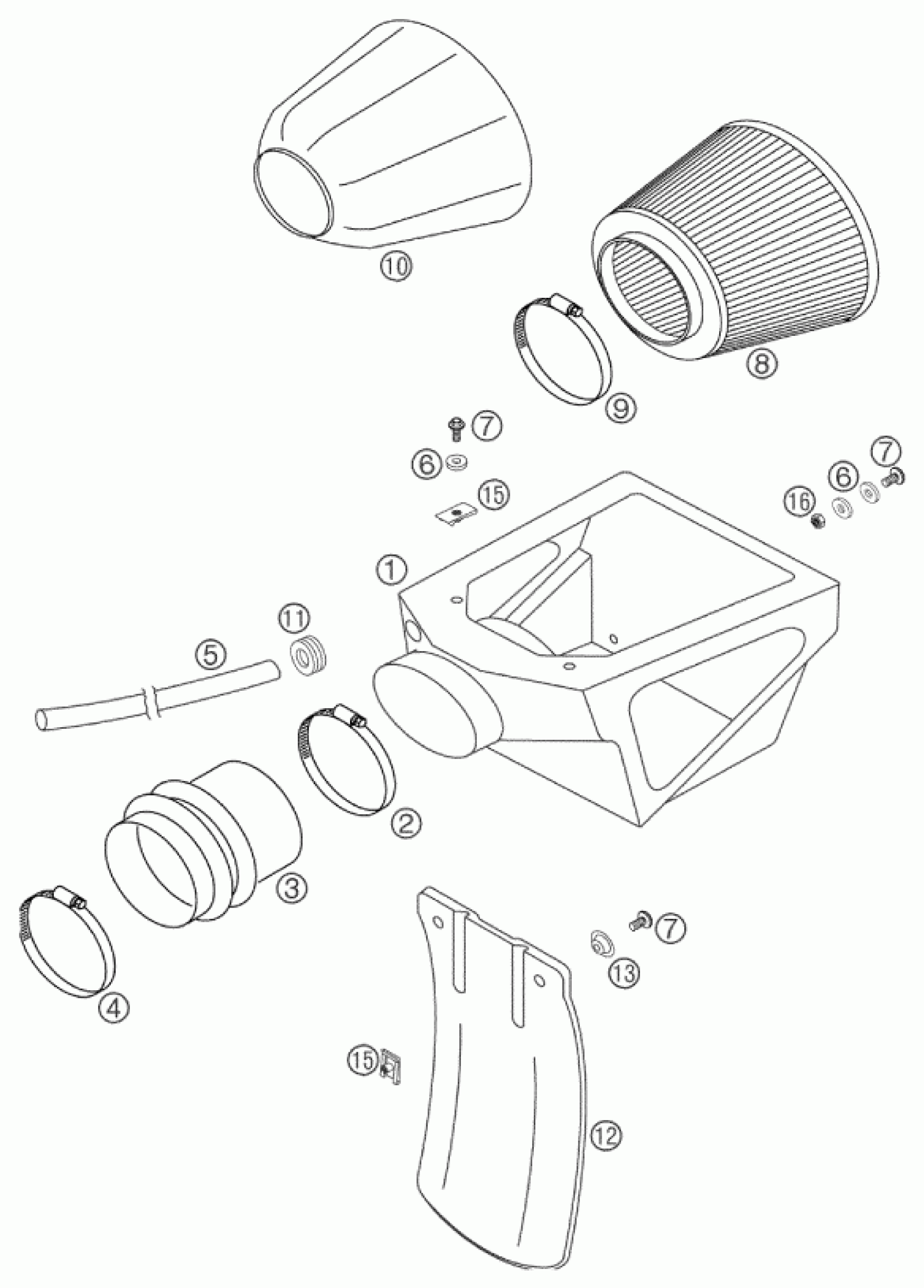

KTM 660 SM FACTORY REPLICA 2002 AIR FILTER Diagram

#

Description

Price

1

FILTER BOX 660 SM 02

57306001000

Unavailable

2

HOSE CLAMP 60-80MM

55006028000

Unavailable

3

AIR FILTER BOOT 540/620/640

58006026500

Unavailable

4

HOSE CLAMP 50-70MM

51006027000

Unavailable

5

HOSE 10X14 PER METER

57005020001

Unavailable

6

Washer DIN9021-A 6.4

0021060003

Unavailable

7

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

8

AIR FILTER

57306015000

Unavailable

9

HOSE CLAMP 70-90MM

58506027000

Unavailable

10

WRAP F. AIR FILTER 660 SM 02

57306019000

Unavailable

11

RUBBER SLEEVE D=12MM

41001052000

Unavailable

12

SPLASH PROTECT.FOR FILTER BOX

54606010000

Unavailable

13

BUCKET

72210079000

Unavailable

15

clip nut M6

54603048100

Unavailable

16

Self lock. nut DIN985-M6-A2

0985060003

Unavailable
