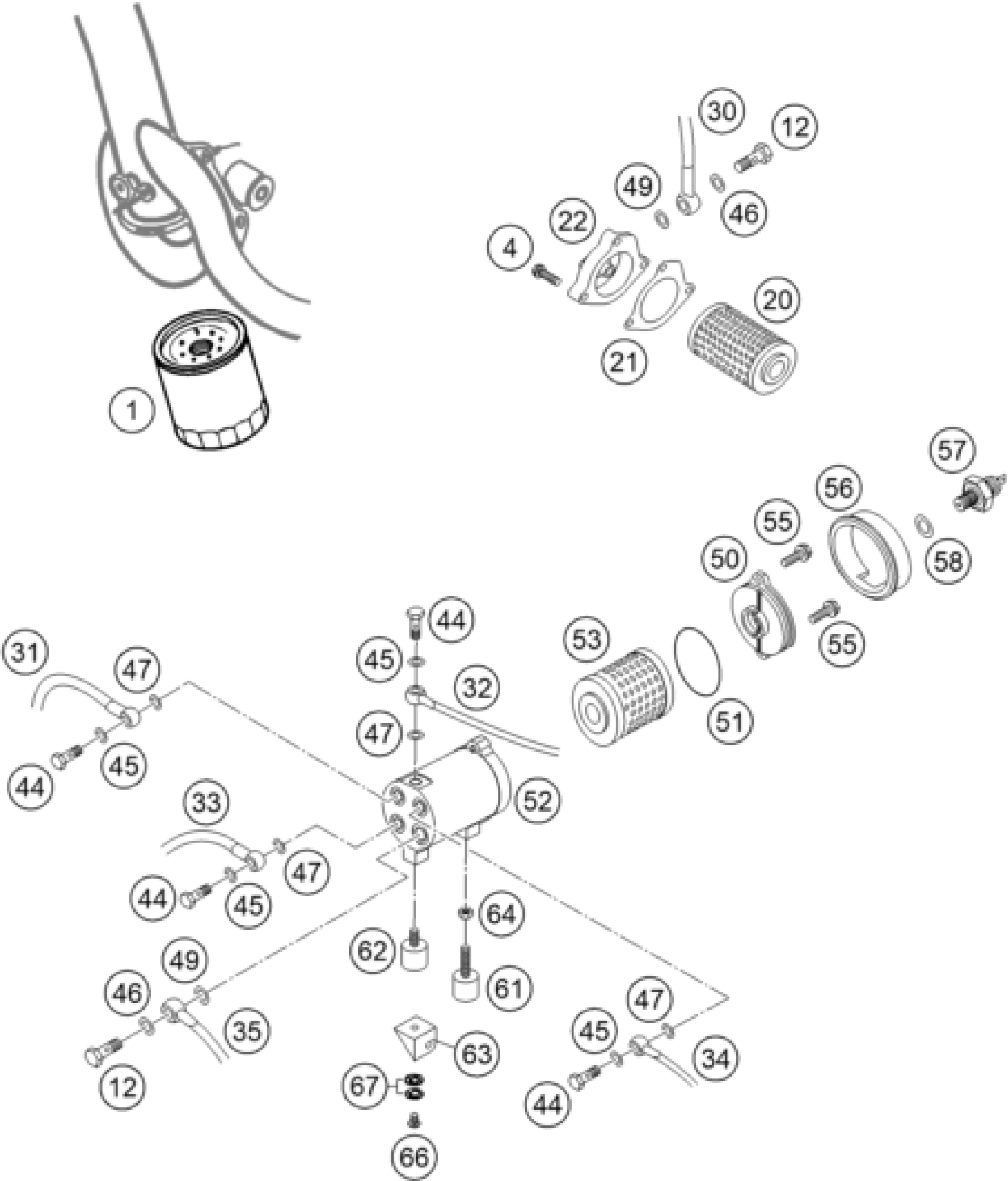

KTM 660 RALLYE FACTORY REPL. 2005 LUBRICATING SYSTEM Diagram

#

Description
Price

51

O-RING 40,00X2,50 NBR 70

0770400025

$2.05

52

MICRO FILTER HOUSING RALLYE 01

58538043000

Unavailable

53

OIL FILTER SHORT

59038046100

$8.22

55

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

56

RUBBER RING 45/52/16

58538043010

Unavailable

57

OILPRESSURE SWITCH 03

58338091100

Unavailable

58

sealing ring DIN 7603 10x14x1

0603100141

$2.05

61

RUBBER GROMMET 20X11/M6X18 01

58538010000

Unavailable

62

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

63

BRACKET FOR MICRO FILTER 2001

58538050000

Unavailable

64

Hex. nut DIN 934 M6

0934060003

$1.49

66

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

67

Pair of washers M6 NORDLOCK

50233041000

$4.11

1

SCREW TYPE FILTER LC4'

58338045000

$23.93

4

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

12

HOLLOW SCREW M10 X 1

54313025000

$6.44

20

OIL FILTER LONG

58038005100

$10.46

21

OIL FILTER COVER GASKET 2001

58530041000

$7.00

22

OIL FILTER COVER 2001

58030008700

$126.79

30

OIL L.OIL FIL.-OIL COOL.1110MM

58538052044

Unavailable

31

OIL L. JUNC.B.-ENGI.CASE L 04

58538043044

Unavailable

32

OIL L. JUNC.B.-CRANK SH. 300MM

58538046044

Unavailable

33

OIL L. JUNC.B.-ENGI.CASE 260MM

58538044044

Unavailable

34

OIL L. JUNC.B-CLUTCH C. 465MM

58538045044

Unavailable

35

OIL L. FRAME-JUNC.BOX 91MM 01

58538054044

Unavailable

44

BANJO BOLT M8 X 1 DIN7643

58038030000

$5.23

45

COPPER Gask.DIN7603- 8.2X13X1

0603082131

$2.05

46

sealing ring DIN 7603 10x14x1

0603100141

$2.05

47

COPPER GASKET 8,2X12X2 MM 2001

0603821220

$1.49

49

COPPER GASKET 10,2X14X2 MM 01

0603101420

$3.08

50

OIL FILT.COVER M10X1 RALLYE 01

58538041000

Unavailable
