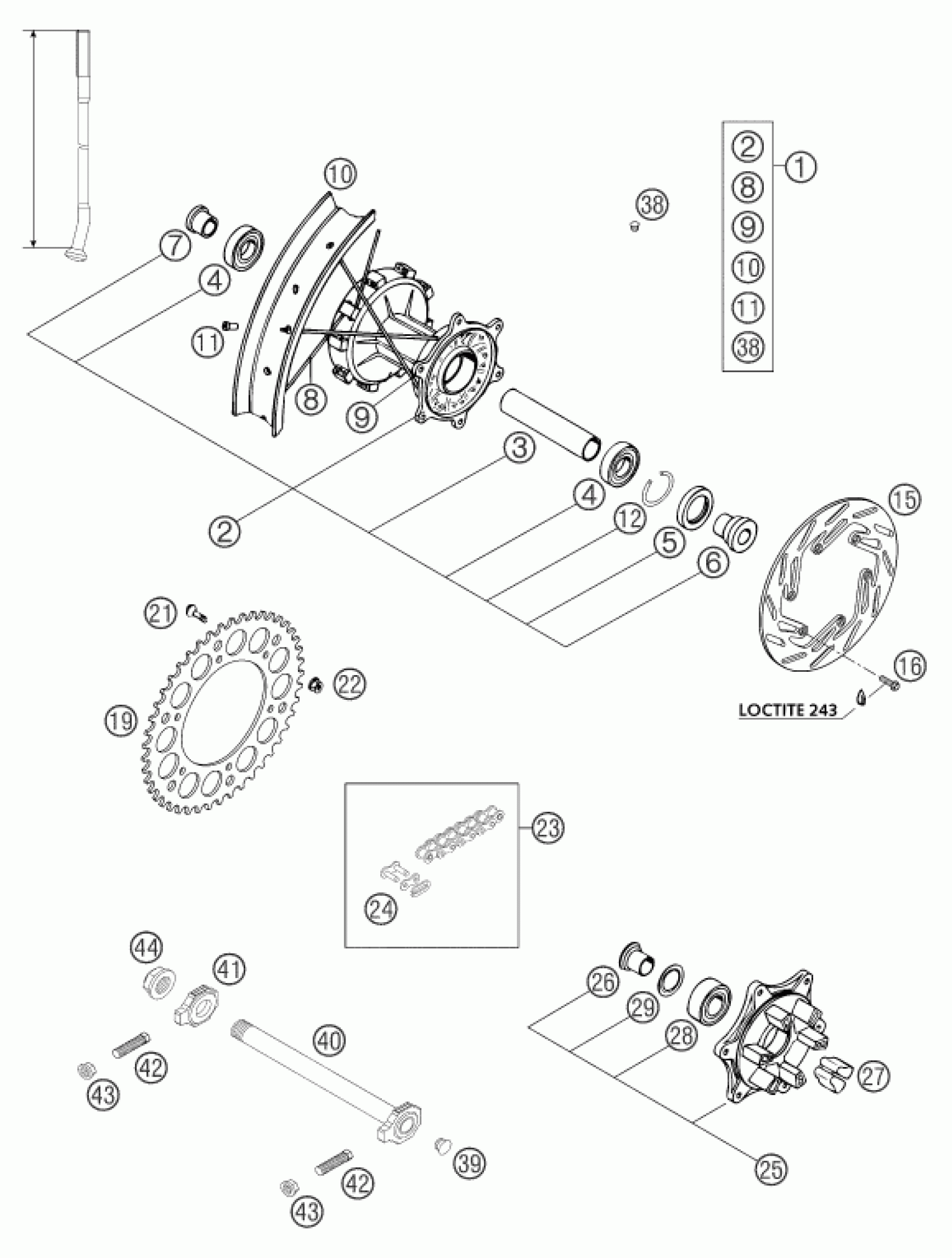

KTM 660 RALLYE FACTORY REPL. 2004 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL 2,50X18'' DID

58310001044

$648.96

2

REAR WHEEL HUB DAMPED CPL.'01

58410010044

$194.15

3

BUSHING SPACER TUBE L=98,3MM

58410011000

$14.58

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

SHAFT SEAL RING 32X52X7 B

0760325272

$16.54

6

BUSHING FOR HUB

54610016000

$32.90

7

BUSHING FOR REAR DAMPED HUB

54610416300

$20.09

8

SPOKE M5X223-10G 18''

54610471000

$5.23

9

SPOKE M5X197-10G 18'' DDE

50310071197

$4.11

10

REAR RIM 2,50X18'' DID

58010470100

$182.01

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

12

CIRCLIP DIN0472-52X2

0472052200

$3.08

15

REAR BRAKE DISK 220MM COUNTERS

58010060600

$183.53

16

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

19

REAR SPROCKET 43-T HARD. STEEL

58510151043

Unavailable

19

REAR SPROCKET 44-T HARD. STEEL

58510151044

Unavailable

19

REAR SPROCKET 45-T HARD. STEEL

58510151045

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

22

Self locking nut M8 10.9

54310086200

$3.08

23

% X-RING CHAIN 5/8X1/4" +M.LIN

50310265118

Unavailable

24

CONNECTING LINK

50310266000

Unavailable

25

SPROCKET SUPPORT CPL.

58310050044

Unavailable

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

$17.38

27

Rubber damping block 91

54610459000

$8.03

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

$74.67

29

SEAL WASHER 3205 AV

54610018000

$9.34

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

$3.08

40

WH. SPINDLE RE. CPL.265MM 00

50310085044

$78.91

41

Chain tension adjuster, right

50310084000

$20.66

42

SPEC. SCREW M10X1,25X40 WS=10

50304040000

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30
