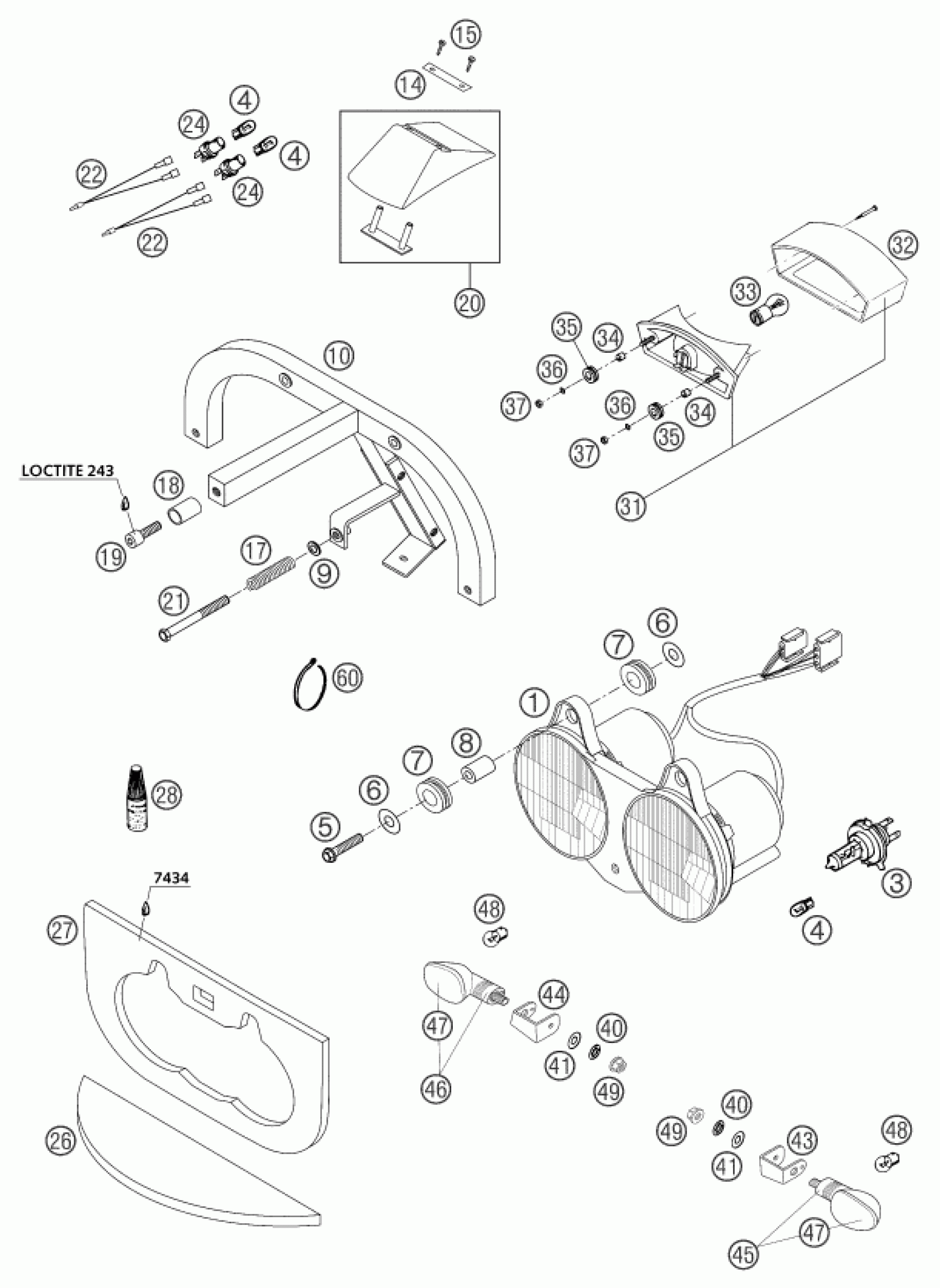

KTM 660 RALLYE FACTORY REPL. 2004 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT TRIOM CPL. '96

58414001000

$135.34

3

BULB HS1 12V 35/35W WHITE

54611038012

$33.28

4

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

5

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

6

Washer DIN9021-A 6.4

0021060003

$2.05

7

RUBBER SLEEVE D=12MM

41001052000

$4.11

8

SPACER BUSHING 6X12X20 ALU

56530060050

$4.13

9

washer DIN 9021 A - 5.3

0021050003

Unavailable

10

CARRIER FOR TRIOM HEAD L. 2001

58512091200

Unavailable

14

REAR LIGHT BRACKET

58514046000

Unavailable

15

SHEET MET.SCR.DIN7981-3,5X13

0981350133

$1.49

17

TENSIONING SPRING 1 X 12 X 35

58311049007

$1.73

18

BUSHING SLEEVE COVER FRONT 04

58512006100

Unavailable

19

COU.SUNK SCR. AH ISO7380 M6X30

0738060301

$1.49

20

EXTRA REAR LIGHT LENS '97

58511099244

Unavailable

21

HH SCREW DIN931 M5X60

0931050603

$1.49

22

WIRING HARNESS REAR LIGHT '99

58511099200

Unavailable

24

BULB SOCKET

49011439000

Unavailable

26

FLASHBACKPROTECTION HORIZ. 01

58512091251

Unavailable

27

FLASHBACKPROTECTION VERTI.2001

58512091250

Unavailable

28

GRIP GLUE

6899792

Unavailable

28

LOCTITE 243 BLUE 5 ML

6899785

$28.04

31

REAR LIGHT CPL. CEV 358 '93

58311040000

$45.73

32

LENS '93

58311041000

$27.95

33

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

34

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

35

rubber grommet D=8mm open

31008060000

$2.05

36

Washer DIN9021-A 6.4

0021060003

$2.05

37

Self locking nut DIN 985 M5

0985050003

$2.05

40

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

41

washer DIN 125 A 10.5

0125100003

$2.05

43

FLASHER SUPPORT RALLYE L/S 01

58514033000

Unavailable

44

FLASHER SUPPORT RALLYE R/S 01

58514034000

Unavailable

45

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

$28.70

46

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

$27.95

47

FLASHER LENS L/S & R/S '98

58414028000

$6.72

48

BULB 12V 10W (BA15S)

44111015100

$3.08

49

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

60

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

60

Cable tie 200/4.6mm black

44011076200

Unavailable
