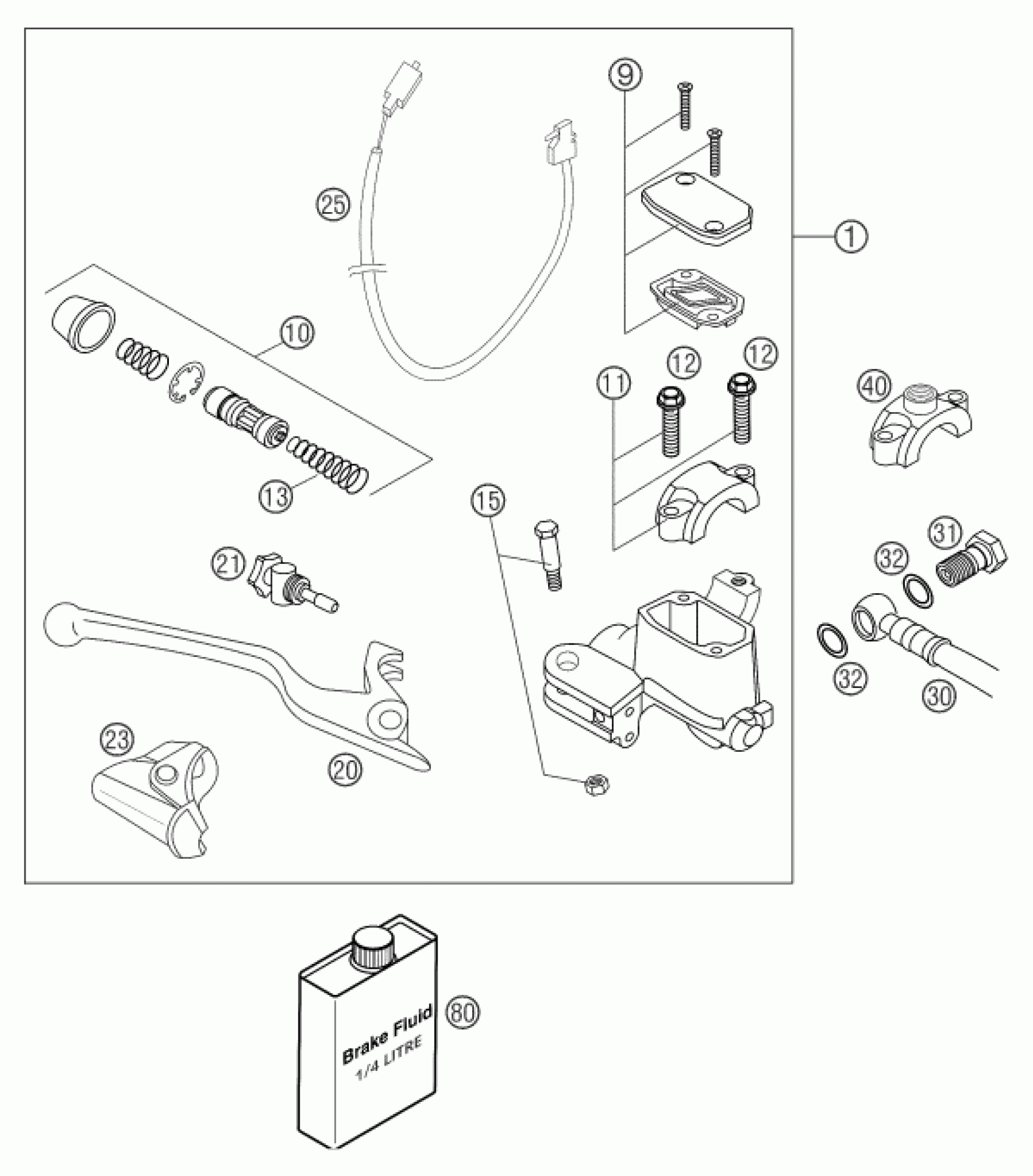

KTM 660 RALLYE FACTORY REPL. 2004 FRONT BRAKE CONTROL Diagram

#

Description
Price

1

HANDBRAKE CYL. NAT. SMALL 2004

50313001200

Unavailable

9

HANDBRAKE CYL.COVER CPL.NATURE

50313003000

$24.68

10

REP.SET PISTON D=11 EXC 2001

50313008300

$33.65

11

CLAMP CPL. NATURE

50313005000

$26.08

12

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

13

SPRING PISTON BRAKE FRONT 11MM

50213050050

Unavailable

15

LEVER SCREW CPL. 2001

50313006100

$12.61

20

HANDBRAKE LEVER SHORT 2001

50313002100

$30.10

21

ADJUSTING SCREW CPL. SX 2000

50313007000

$14.95

23

PROTECTION CAP HAND BRAKE CYL.

50313004000

$12.61

25

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

30

BRAKEHO. FRONT 1300MM 04

58513011000

Unavailable

31

HOLLOW SCREW M10X1X19

50213025000

$6.54

32

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

40

Clamp for mirror

58012040150

$22.81

80

BRAKE FLUID DOT 4.0

306054

Unavailable
