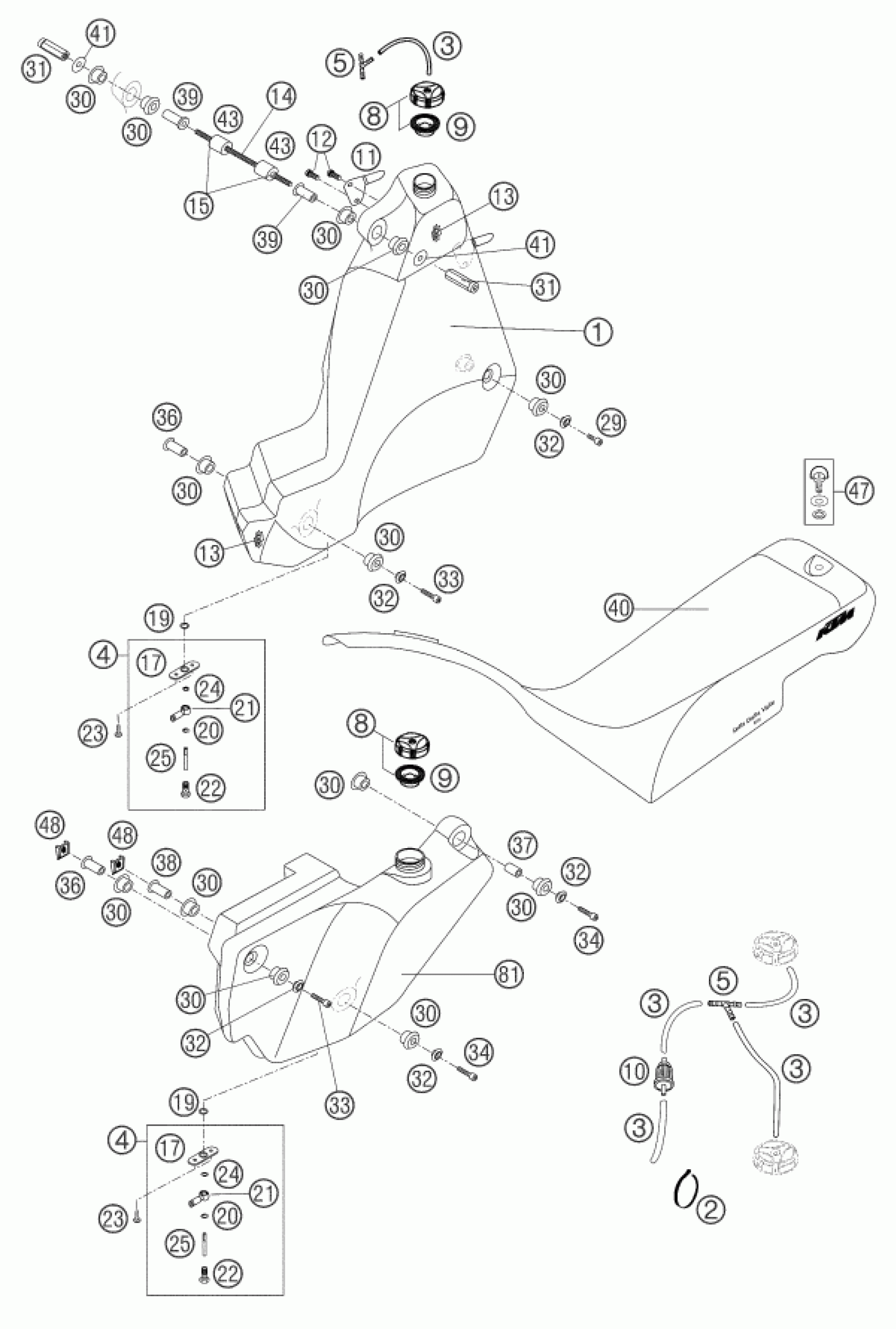

KTM 660 RALLYE FACTORY REPL. 2003 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK FR. L/S RALLYE 2003

5850701310090

Unavailable

1

FUEL TANK FR. R/S RALLYE 2003

5850711310090

Unavailable

2

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

3

Hose 5x8mm

58507007001

Unavailable

4

FUEL CONNECTION CPL. 01

58507008000

Unavailable

5

T-JOINT BREATHER HOSE

59031083000

Unavailable

8

FILLER CAP CPL. SMALL

49007008044

Unavailable

9

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

10

FUEL FILTER ELEMENT

58312099052

Unavailable

11

SEAT HOLDING SHEET L/S 01

58554013051

Unavailable

11

SEAT HOLDING SHEET R/S 01

58554013050

Unavailable

12

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

13

Past mount quick lock

45007040050

Unavailable

14

THREADPOLE M8 L=226 MM

58512067000

Unavailable

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

17

FUEL FLANGE SHEET 01

58507008050

Unavailable

19

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

20

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

21

RING COMPONENT 10/6MM

49138493000

Unavailable

22

HOLLOW SCREW M10X1X24 RALLY 02

58507025000

Unavailable

23

SHEET MET.SCR.DIN7982 4,8X16

0982480163

Unavailable

24

COPPER GASKET 10,2X14X2 MM 01

0603101420

Unavailable

25

FUEL FLANGE-STRAINER 03

58507008010

Unavailable

29

AH SCREW DIN912 M8x20

0912080203

Unavailable

30

rubber bushing

56401040000

Unavailable

31

TANK NUT M8 01

58507005000

Unavailable

32

BUSHING SLEEVE OUT 2001

58512062000

Unavailable

33

AH SCREW DIN912 M8X50

0912080503

Unavailable

34

AH SCREW DIN912 M8X45

0912080452

Unavailable

35

AH collar screw DIN0912 M8x40

0912080403

Unavailable

36

Inner bushing sleeve 34mm

58512063000

Unavailable

37

BUSHING SLEEVE IN. 25MM 2001

58512069000

Unavailable

38

BUSHING SLEEVE IN. 30,5MM 2001

58512068000

Unavailable

39

BUSHING SLEEVE IN. 40MM 2001

58512064000

Unavailable

40

58507040500

Unavailable

41

WASHER DIN9021-A 8,4

0021080003

Unavailable

43

TANKDISTANCE 36 MM RALLYE 2001

58512065000

Unavailable

47

QUICK RELEASE CPL. '96

58307040551

Unavailable

48

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

81

SIDE TANK L/S SILVER 2003

5851209520090

Unavailable

81

SIDE TANK R/S SILVER 2003

5851209620090

Unavailable
