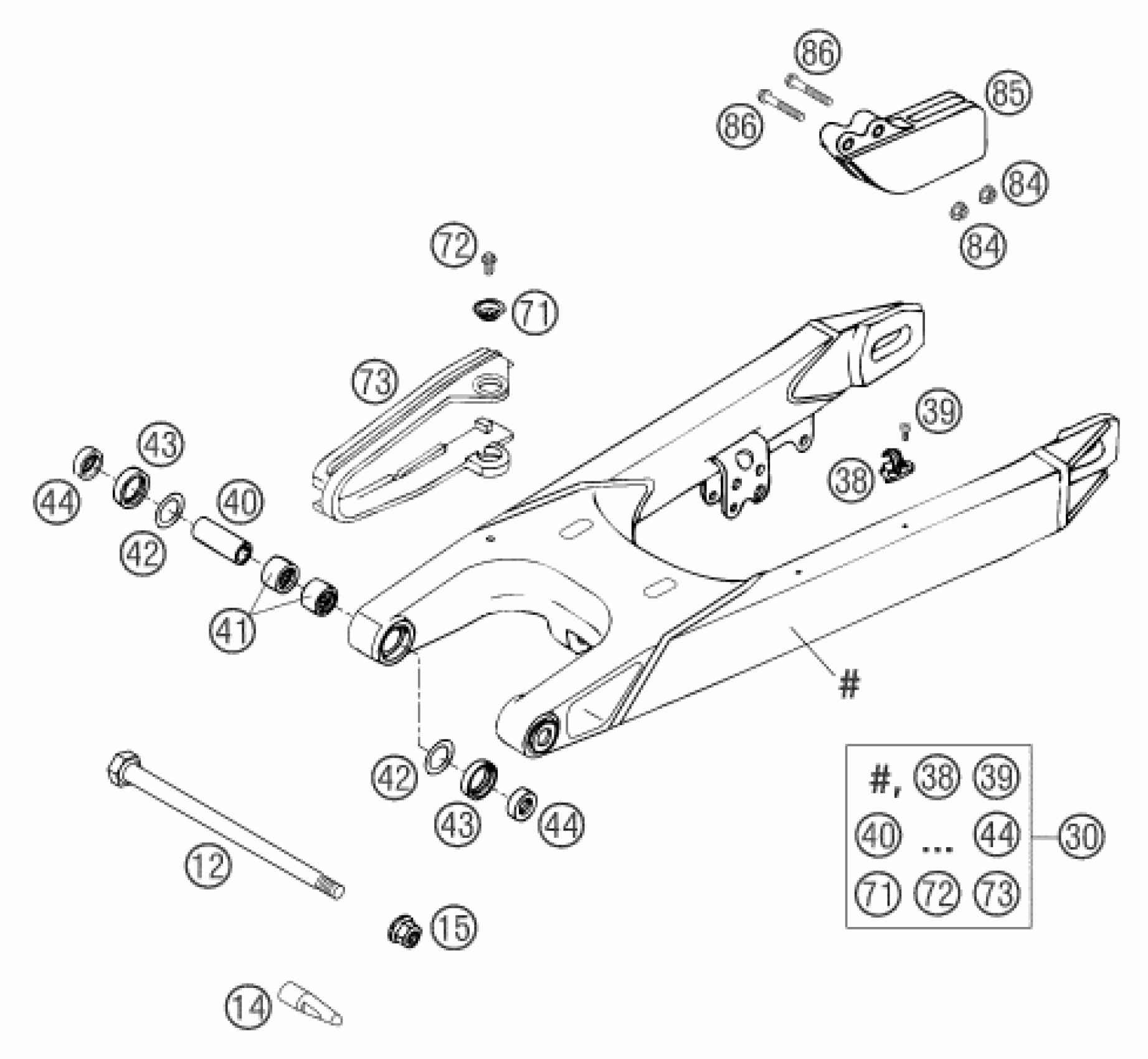

KTM 660 RALLYE FACTORY REPL. 2003 SWING ARM Diagram

#

Description
Price

12

SWINGARM BOLT KPL. L=253

54603014100

Unavailable

14

SPECIAL TOOL F.SWINGARMBOLT 01

58503014001

Unavailable

15

Self locking nut M14x1.5 WS19

54603015000

Unavailable

30

SWINGARM RALLYE CPL.

58504030144

Unavailable

38

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

Unavailable

39

SPECIAL SCREW M 5,0X10

0010050103

Unavailable

40

BUSHING SLEEVE 15X20X38,75

50203081700

Unavailable

41

NEEDLE BUSH HK 2012

50203097000

Unavailable

42

STOP DISK 22,2X31,7X0,8 2000

59004033000

Unavailable

43

radial shaft seal 25x32x7

0760253270

Unavailable

44

BUCKET F.SHAFTSEALRING 15X25X9

54603090000

Unavailable

71

BUCKET

72210079000

Unavailable

72

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

73

CHAIN SLIDING GUARD DUKE'94

58307073000

Unavailable

84

Self locking nut M6 - 10

56509064100

Unavailable

85

CHAIN GUIDE REAR '94

54607066100

Unavailable

86

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable
