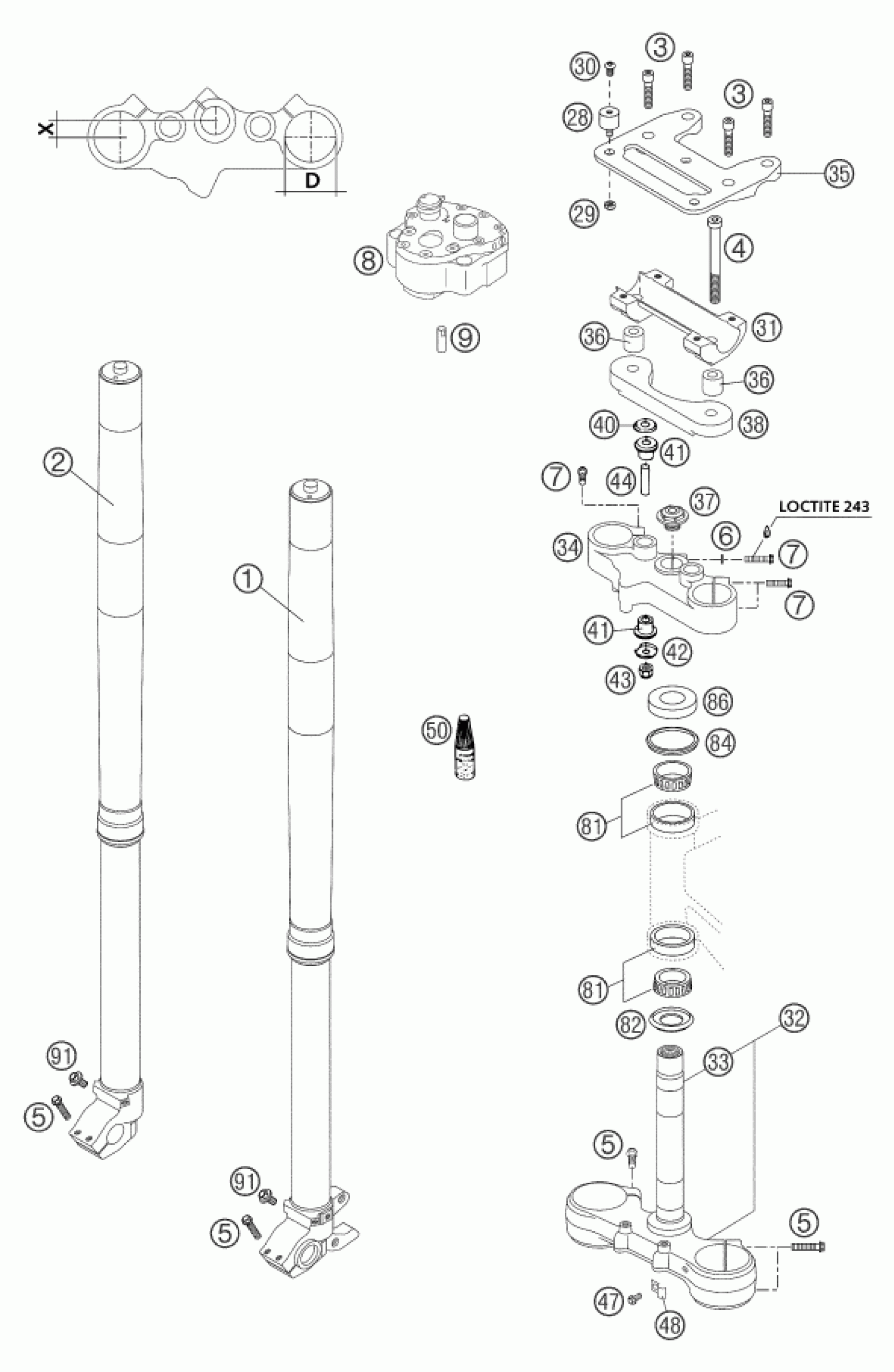

KTM 660 RALLYE FACTORY REPL. 2003 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK LEG L/S WP48 RALLYE 03

1418X729LS

Unavailable

2

FORK LEG R/S WP48 RALLYE 03

1418X729RS

Unavailable

3

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

4

AH SCREW DIN6912-M10X100

0984101006

Unavailable

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

6

PAIR OF WASHERS M10 NORDLOCK

50233041100

Unavailable

7

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

8

STEERING DAMPER

58512050000

Unavailable

9

PIN F.STEERING STABILIZER 02

58502006000

Unavailable

28

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

29

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

30

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

31

HANDLEBAR SUPPORT 28MM SC'99

59001039100

Unavailable

32

BOT.TRIP.CL.CPL X=20MM/D=60MM

59001132120

Unavailable

33

FORK TUBE L=244 '91

50101033100

Unavailable

34

TOP TRIPLE CLAMP RALLYE 2001

58501034020

Unavailable

35

GPS MOUNTING PLATE MILLED 2001

58502003000

Unavailable

36

HANDLEBAR BUSHING 17MM 01

58502005051

Unavailable

37

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

Unavailable

38

HOLD.F.STEERING SHOCK ABSORBER

58502009000

Unavailable

40

washer 10.5x32x2

56401042000

Unavailable

41

rubber bushing

56401040000

Unavailable

42

WASHER 10,5X31

56401142000

Unavailable

43

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

44

SPACER TUBE 10,2X12X44

56401041100

Unavailable

47

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

48

CLAMP FOR WIRING HARNESS

50211096000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

81

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

82

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

86

STEERING HEAD COVER

54201086000

Unavailable

91

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable
