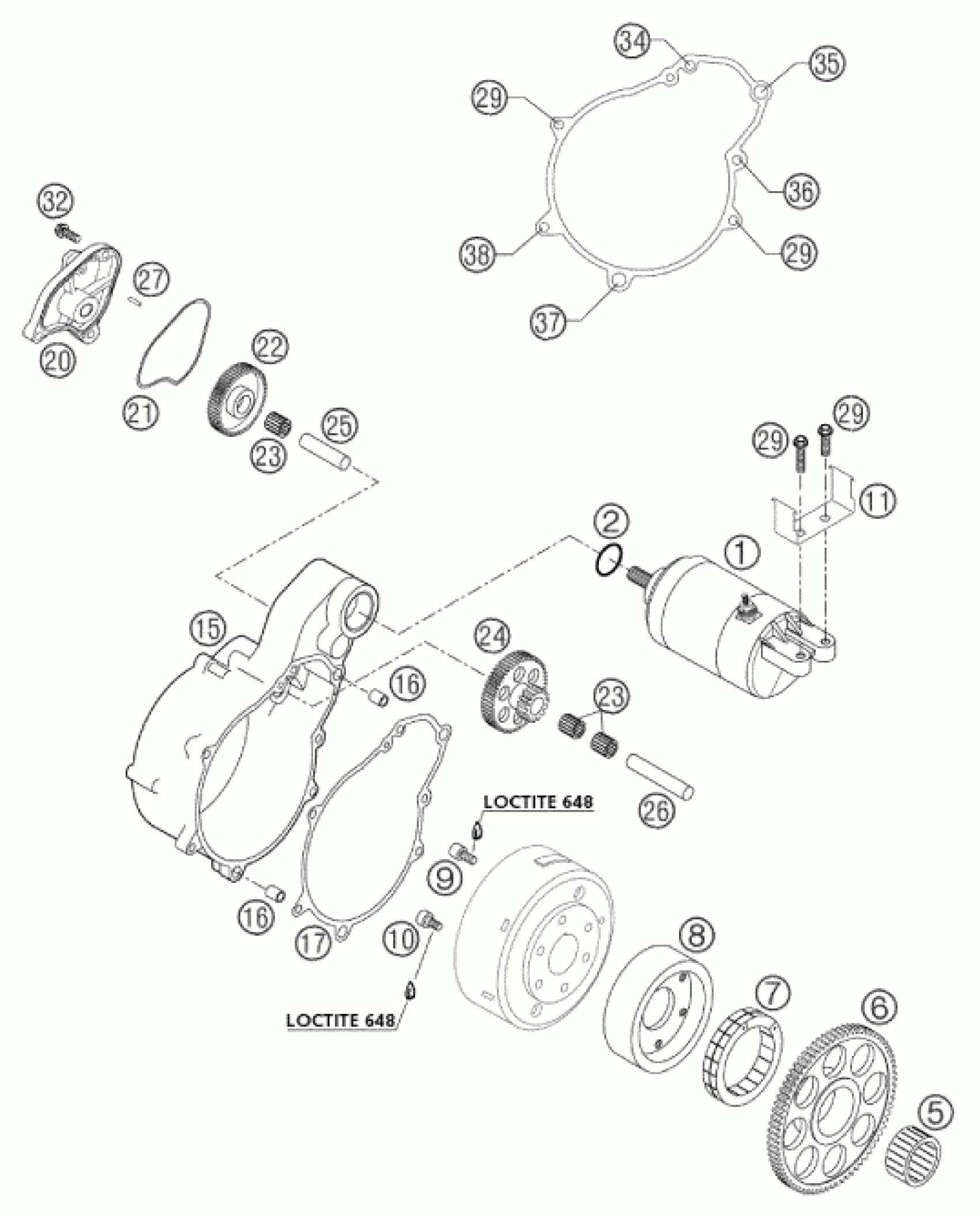

KTM 660 RALLYE FACTORY REPL. 2003 ELECTRIC STARTER Diagram

#

Description
Price

1

E-STARTER ENGINE CPL. LC4-E

58440001000

Unavailable

2

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

5

NEEDLE BEARING K30 X 37 X 18 A

58440090100

Unavailable

6

FREE-WHEEL-GEAR 79-T

58440020079

Unavailable

7

FREE-WHEEL FWD 332008 BLS

58440026000

Unavailable

8

FREEWHEEL HUB

58440025000

Unavailable

9

AH SCREW DIN0912-M 6X12 12.9

0912060121

Unavailable

10

AH CENTERING SCREW M6X12,5

58440098000

Unavailable

11

BRACKET FOR STARTRELAIS '99

58511058050

Unavailable

15

STARTER FLANGE GREY 03

5844001010023

Unavailable

16

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

17

STARTER FLAN.GASKET 0,5MM 2001

58540042000

Unavailable

20

STARTER COVER GREY 03

5844001110023

Unavailable

21

FORM RING F.STARTERCOVER NBR70

58440011050

Unavailable

22

INTERMEDIATE GEAR 52-T

58440022000

Unavailable

23

needle roller and cage K 10x13

58440090000

Unavailable

24

REDUCTION GEAR 55-T/18-Z

58440021018

Unavailable

25

BEARING BOLT 10 X 38,4

58440028000

Unavailable

26

BEARING BOLT 10 X 54

58440029000

Unavailable

27

NEEDLEROLL. DIN5402 NRB 4X 7,8

0402040780

Unavailable

29

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

32

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

34

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

35

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

36

HH COLLAR SCREW M 6X80 WS=8

0015060803

Unavailable

37

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

38

HH COLLAR SCREW M 6X95 WS=8

0015060953

Unavailable
