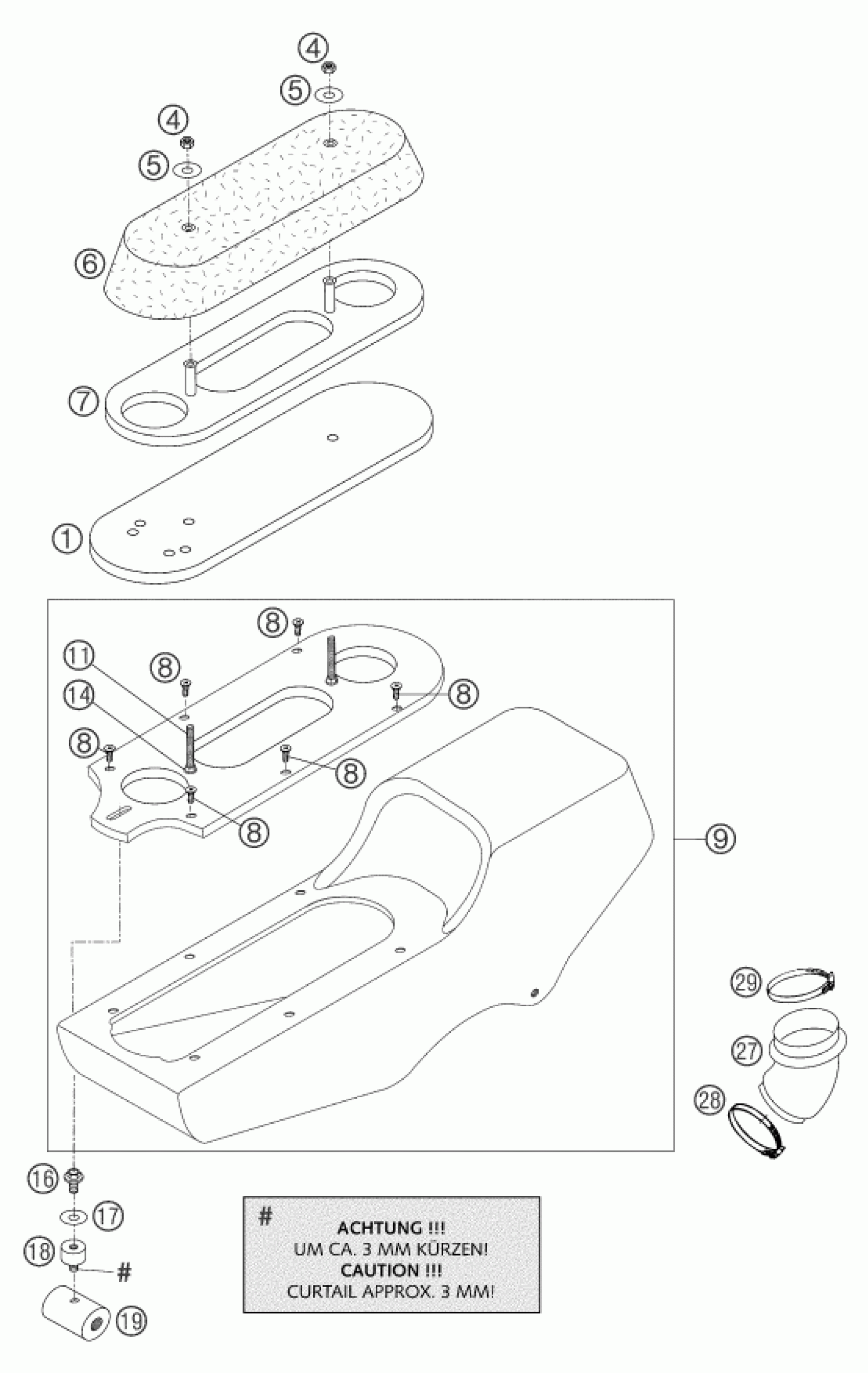

KTM 660 RALLYE FACTORY REPL. 2003 AIR FILTER Diagram

#

Description
Price

1

AIR FILTER RESTRICTOR 01

58506001052

Unavailable

4

Self locking nut DIN 985 M5

0985050003

Unavailable

5

washer DIN 9021 A - 5.3

0021050003

Unavailable

6

AIR FILTER TWIN AIR 01

58506015000

Unavailable

7

AIR FILTER BOX S. TWIN AIR 01

58506001050

Unavailable

8

SCREW FOR PLASTIC D=5X18

0017050181

Unavailable

9

AIRBOX W. AIR FILTER BOX S.

58506001144

Unavailable

11

HH SCREW DIN0933-M 5X60

0933050603

Unavailable

14

HEXAGON STOP NUT DIN0980-M 5

0980050003

Unavailable

16

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

17

WASHER 6,2 X 20 X 2 '99

58432006000

Unavailable

18

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

19

TANKDISTANCE 42MM RALLYE 2001

58512066000

Unavailable

27

CARBURETTOR CUFF RALLYE 01

58506026000

Unavailable

28

HOSE CLAMP 50-70MM

51006027000

Unavailable

29

HOSE CLAMP 70-90MM

58506027000

Unavailable
