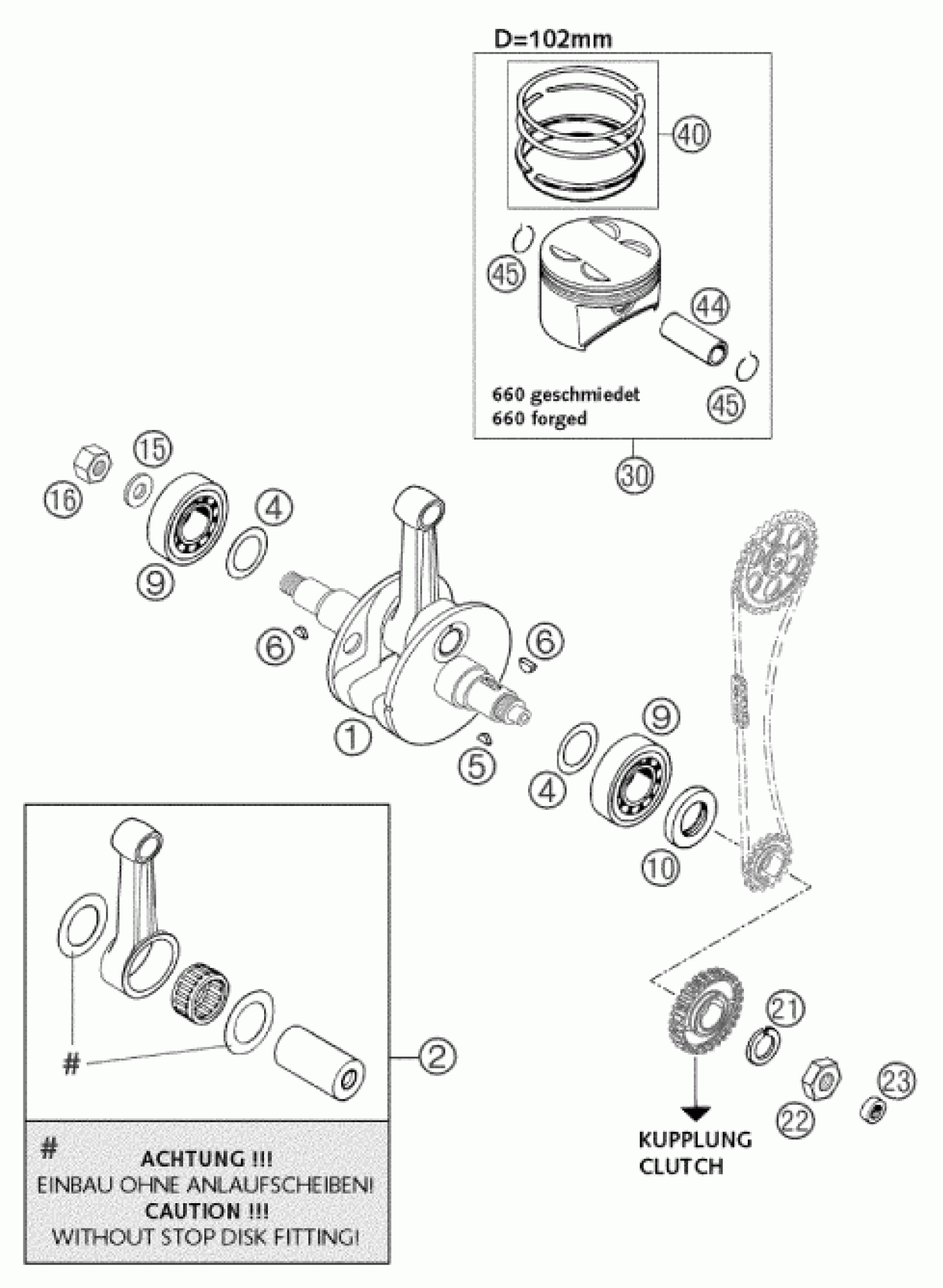

KTM 660 RALLYE COSTUMER 2004 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL. RALLYE 2002

58530018300

$845.35

2

CONNECTING ROD REPAIR SET LC

58530015044

Unavailable

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

6

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

9

CYL.ROLLER BEAR. NJ 207 ECP C3

56530123000

$90.13

10

SHAFT SEAL RING 30X40X7 BSL

0760304071

Unavailable

15

STEEL WASHER 16 X 30 X 3

58330095000

$2.73

16

HEX NUT M16x1,25 L/S

58430028000

$7.48

21

LOCKING RING VSK 20

58030019000

$1.73

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

$6.52

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

$15.79

30

PISTON I CPL. D=102MM 03

58530007300 I

$402.80

30

PISTON II CPL. D=102MM 03

58530007300 II

Unavailable

40

PISTONRING SET ELKO 660 RALLYE

58530031144

Unavailable

44

PISTON PIN 22 X 13 X 60

58330833000

$46.27

45

CIRCLIP 22 X 1,6

58430074000

$9.62
