Description

Price

1

MAIN WIRING HARNESS RALLY 2002

58511075400

Unavailable

2

WIRING HARNESS REAR RALLYE '97

58511076000

Unavailable

3

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

4

Kill switch

50311089200

$37.58

5

PULL SWITCH LOOSE

55011599000

$23.09

6

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

8

FUSE BOX

44111009000

Unavailable

9

BRAKE LIGHT SWITCH FRONT 2000

50311050000

Unavailable

10

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

11

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

18

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

19

Self locking nut M6 - 10

56509064100

$2.05

21

Self locking nut DIN 985 M5

0985050003

$2.05

22

DC HORN 12V K80/L LEB

50311060000

$32.16

23

HH SCREW DIN931 M5X45

0931050453

$2.05

24

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

25

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

26

BRACKET SOCKETS RALLY 2001

58511083100

Unavailable

27

washer DIN 9021 A - 5.3

0021050003

$1.49

28

Self locking nut M6 - 10

56509064100

$2.05

29

HH COLLAR SCREW M 5X16 WS=8

0015050163

$2.05

30

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

33

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

35

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

36

BRACKET F. BATTERY BOX 01

58511054250

Unavailable

40

BATTERY 12V 8AH '96

58411053000

$214.01

41

STARTERCABLE 250MM

58411059200

Unavailable

42

GROUND CABLE 275MM

58411097300

Unavailable

43

BATTERY CABLE 600MM RALLYE 01

58511059000

Unavailable

44

STARTER RELAY WITH HOLD.RUBBER

58411058000

$69.18

45

BRACKET FOR STARTRELAIS '99

58511058050

Unavailable

47

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

48

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

50

Self lock. nut DIN985-M6-A2

0985060003

$2.05

51

FLAT HEAD SCREW DIN0963-M 4x25

0963040253

Unavailable

52

rubber grommet D=8mm open

31008060000

Unavailable

60

BATTERY BOX RALLYE 01

58511054200

Unavailable

61

BORDER PROTEC. ADVENTURE 2002

58214070150

Unavailable

62

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

63

BATTERY COVER 96

58411053050

$22.65

70

FUSE 5 A

58011109005

$2.05

71

Plug-in fuse, big 10A

58011109110

$2.05

72

Plug-in fuse, big 20A

58011109120

$1.49

84

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

90

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

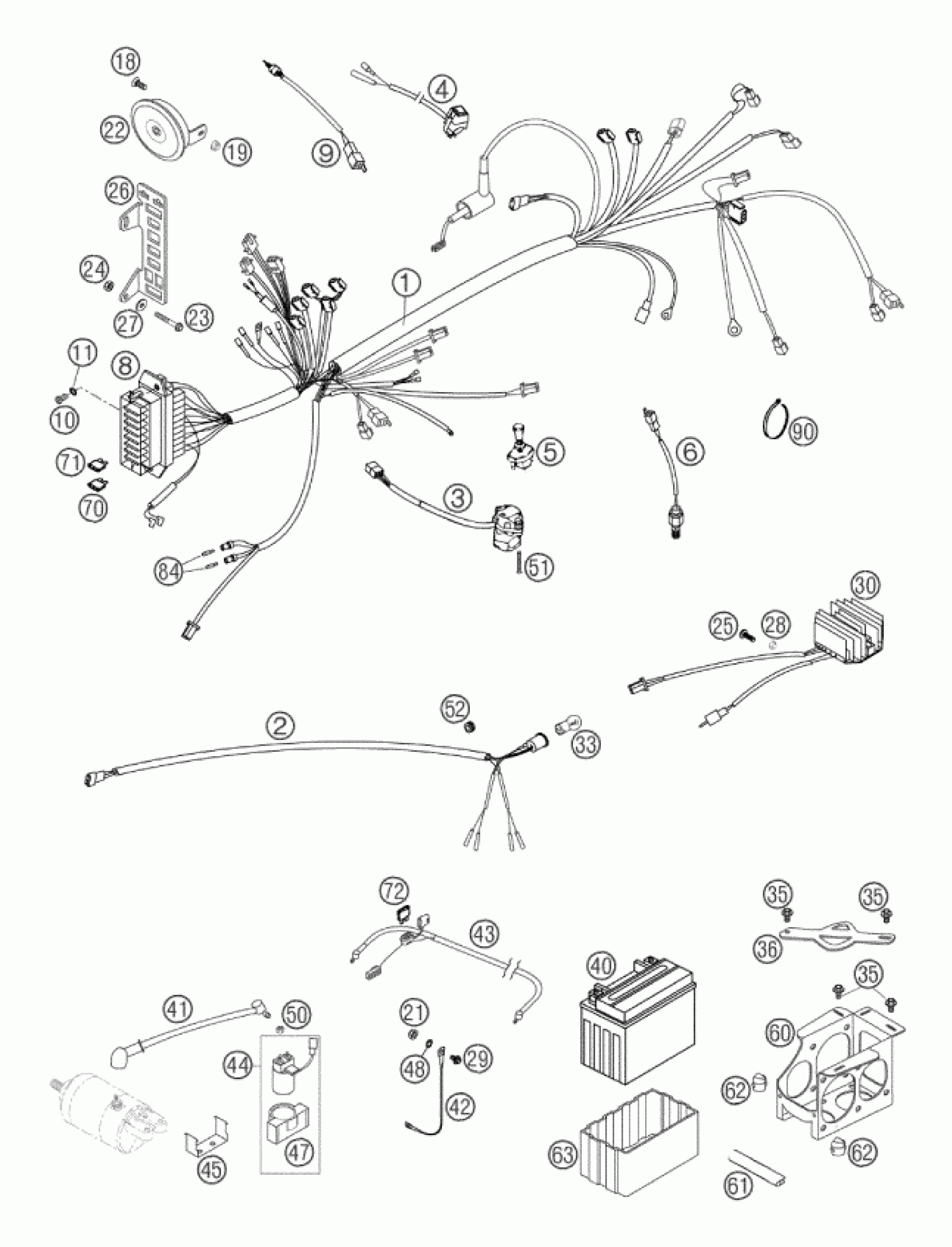

KTM 660 RALLYE 2002 WIRING HARNESS Diagram

MAIN WIRING HARNESS RALLY 2002

WIRING HARNESS REAR RALLYE '97

H.LIGHT SWITCH CEV 2/4TAKT '98

Kill switch

PULL SWITCH LOOSE

BRAKE LIGHT SWITCH REAR '98

FUSE BOX

BRAKE LIGHT SWITCH FRONT 2000

OVAL HEAD SCR. DIN7985-M 5X10

TOOTH LOCK WASH. DIN6797-J 5,3

FLAT HEAD SCR. DIN7991-M 6X16

Self locking nut M6 - 10

Self locking nut DIN 985 M5

DC HORN 12V K80/L LEB

HH SCREW DIN931 M5X45

HEXAGON NUT DIN0934-M 5

HH COLLAR SCREW M 6X20 WS=8

BRACKET SOCKETS RALLY 2001

washer DIN 9021 A - 5.3

Self locking nut M6 - 10

HH COLLAR SCREW M 5X16 WS=8

VOLT.REGULATOR-RECTIFIER 12V

BULB 12V 21/5W (BAY15S)REINFO.

HH COLLAR SCREW M 6X10 WS=8

BRACKET F. BATTERY BOX 01

BATTERY 12V 8AH '96

STARTERCABLE 250MM

GROUND CABLE 275MM

BATTERY CABLE 600MM RALLYE 01

STARTER RELAY WITH HOLD.RUBBER

BRACKET FOR STARTRELAIS '99

HOLD. RUBBER FOR STARTRELAY

CONTACT WASHER M6 VSV-K6

Self lock. nut DIN985-M6-A2

FLAT HEAD SCREW DIN0963-M 4x25

rubber grommet D=8mm open

BATTERY BOX RALLYE 01

BORDER PROTEC. ADVENTURE 2002

CABLE SUPPORT KHS NR.150-47610

BATTERY COVER 96

FUSE 5 A

Plug-in fuse, big 10A

Plug-in fuse, big 20A

BULB 12V 1,2W (W2X4,6D)

CABLE TIE 100/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK
