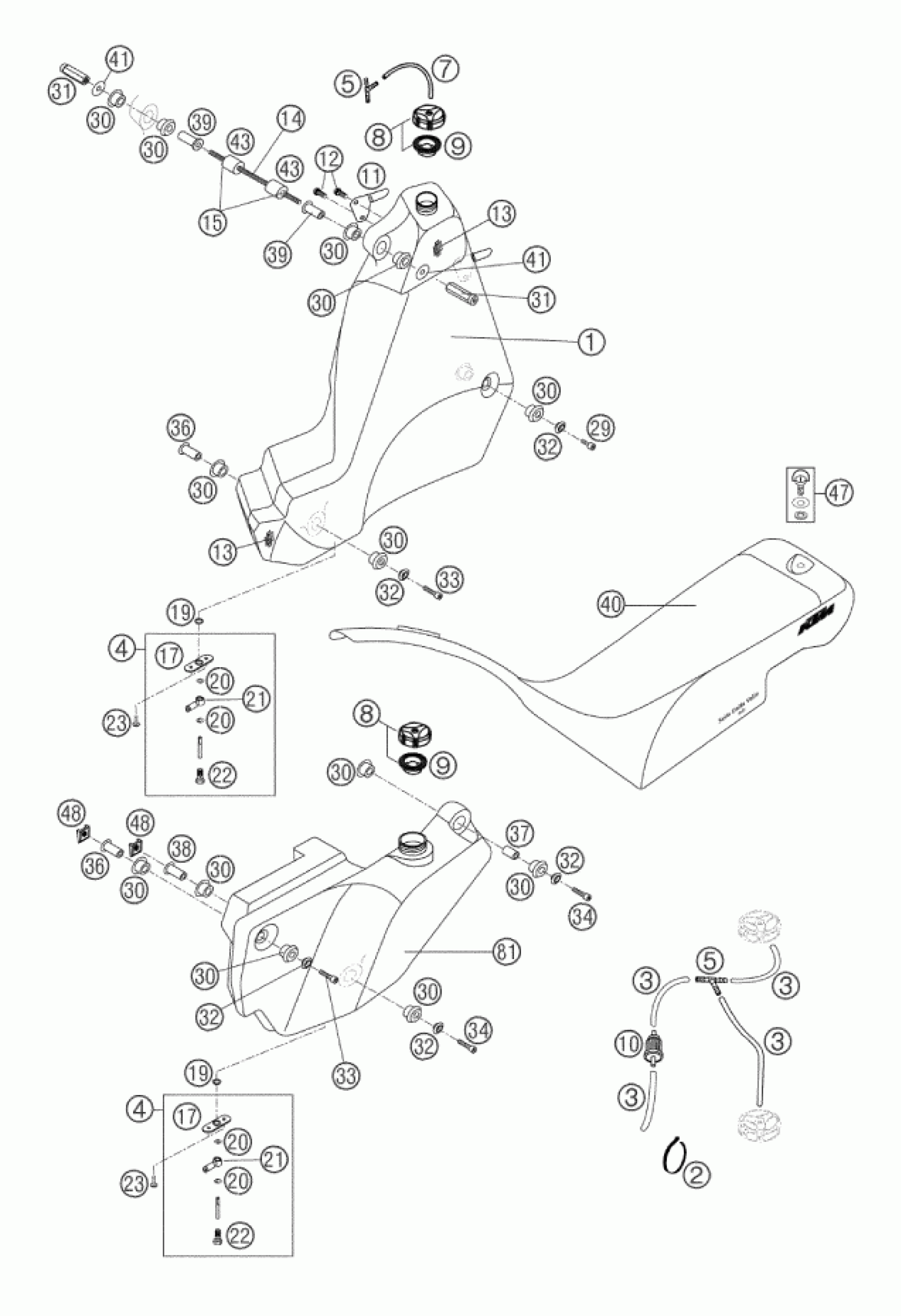

KTM 660 RALLYE 2002 TANK, SEAT Diagram

#

Description
Price

1

GASTANK FR.L/S RALLYE 2001

5850701300090

Unavailable

0

GASTANK FR. R/S RALLYE 2001

5850711300090

Unavailable

2

CABLE TIE 100/2,5MM BLACK

44011076100

$1.49

3

PVC-HOSE 5 X 8 MM

31007007001

Unavailable

4

FUEL CONNECTION CPL. 01

58507008000

$35.24

5

T-JOINT BREATHER HOSE

59031083000

$12.11

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. SMALL

49007008044

$23.65

9

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

10

FUEL FILTER ELEMENT

58312099052

$16.85

11

SEAT HOLDING SHEET L/S 01

58554013051

Unavailable

0

SEAT HOLDING SHEET R/S 01

58554013050

Unavailable

12

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

13

Past mount quick lock

45007040050

$4.11

14

THREADPOLE M8 L=226 MM

58512067000

Unavailable

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

17

FUEL FLANGE SHEET 01

58507008050

$10.84

19

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

20

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

21

RING COMPONENT 10/6MM

49138493000

$10.74

22

HOLLOW SCREW M10X1X24 RALLY 02

58507025000

Unavailable

23

SCREW FOR PLASTIC D=5X18

0017050181

$1.49

24

COPPER GASKET 10,2X14X2 MM 01

0603101420

$3.08

29

AH SCREW DIN0912-M 8X16

0912080163

$2.05

30

rubber bushing

56401040000

$5.23

31

TANK NUT M8 01

58507005000

Unavailable

32

BUSHING SLEEVE OUT 2001

58512062000

$17.68

33

AH SCREW DIN912 M8X50

0912080503

$3.08

34

AH SCREW DIN912 M8X45

0912080452

Unavailable

36

Inner bushing sleeve 34mm

58512063000

$24.39

37

BUSHING SLEEVE IN. 25MM 2001

58512069000

Unavailable

38

BUSHING SLEEVE IN. 30,5MM 2001

58512068000

Unavailable

39

BUSHING SLEEVE IN. 40MM 2001

58512064000

Unavailable

40

SEAT RALLYE 20

58507040400

Unavailable

41

WASHER DIN9021-A 8,4

0021080003

$1.49

43

TANKDISTANCE 36 MM RALLYE 2001

58512065000

Unavailable

47

QUICK RELEASE CPL. '96

58307040551

$24.21

48

RANGE CHANGE METAL NUT M8

54603048000

$4.11

81

SIDE TANK L/S ORANGE 2002

5851209520004

Unavailable

0

SIDE TANK R/S ORANGE 2002

5851209620004

Unavailable
