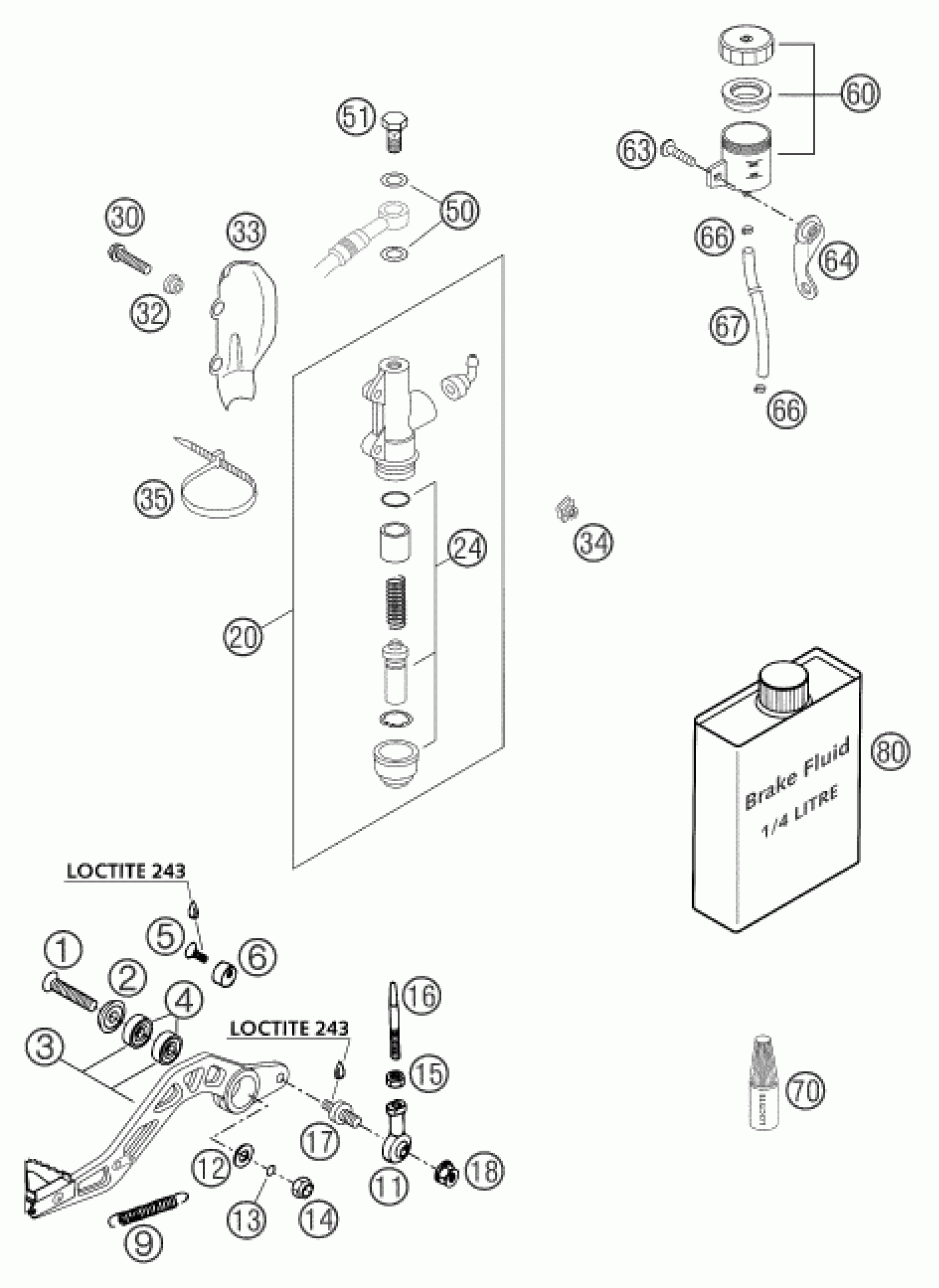

KTM 660 RALLYE 2002 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

2

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

3

FOOT BRAKE LEVER KPL. LC4 2001

58403070044

$66.23

4

Grooved ball bearing 608 2RS C

0625006087

$21.40

5

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

6

BRAKE LEVER STOP '93

58303063000

$5.98

9

RETURN SPRING

13003062000

$5.79

11

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

12

washer DIN 125 A -8.4

0125080003

Unavailable

13

LOCK WASHER 8MM

36003014000

$2.05

14

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

15

Hex. nut DIN 934 M6

0934060003

$1.49

16

PUSH ROD STEEL 100MM M6 01

58503068000

Unavailable

17

BRAKE LEVER AXLE RALLY 2001

58503060050

Unavailable

18

Self locking nut M8 10.9

54310086200

$3.08

20

MAIN BRAKE CYLINDER '89

54513101044

$126.73

24

REPAIR KIT PISTON 13MM

54513150000

$46.46

30

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

32

COLLAR BUSHING

50213161000

$3.08

33

BRAKE CYL. PROTECTOR RALLYE 04

58513038000

Unavailable

34

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

35

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

50

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

51

HOLLOW SCREW M10X1X19

50213025000

$6.54

60

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

63

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

64

BRACKET BRAKE FLUID RESERVOIR

59013068000

$7.05

66

CLAMP YDNAC 10128 12MM

58031005000

$3.08

67

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

70

LOCTITE 243 BLUE 5 ML

6899785

$28.04

80

BRAKE FLUID DOT 4.0

306054

Unavailable
