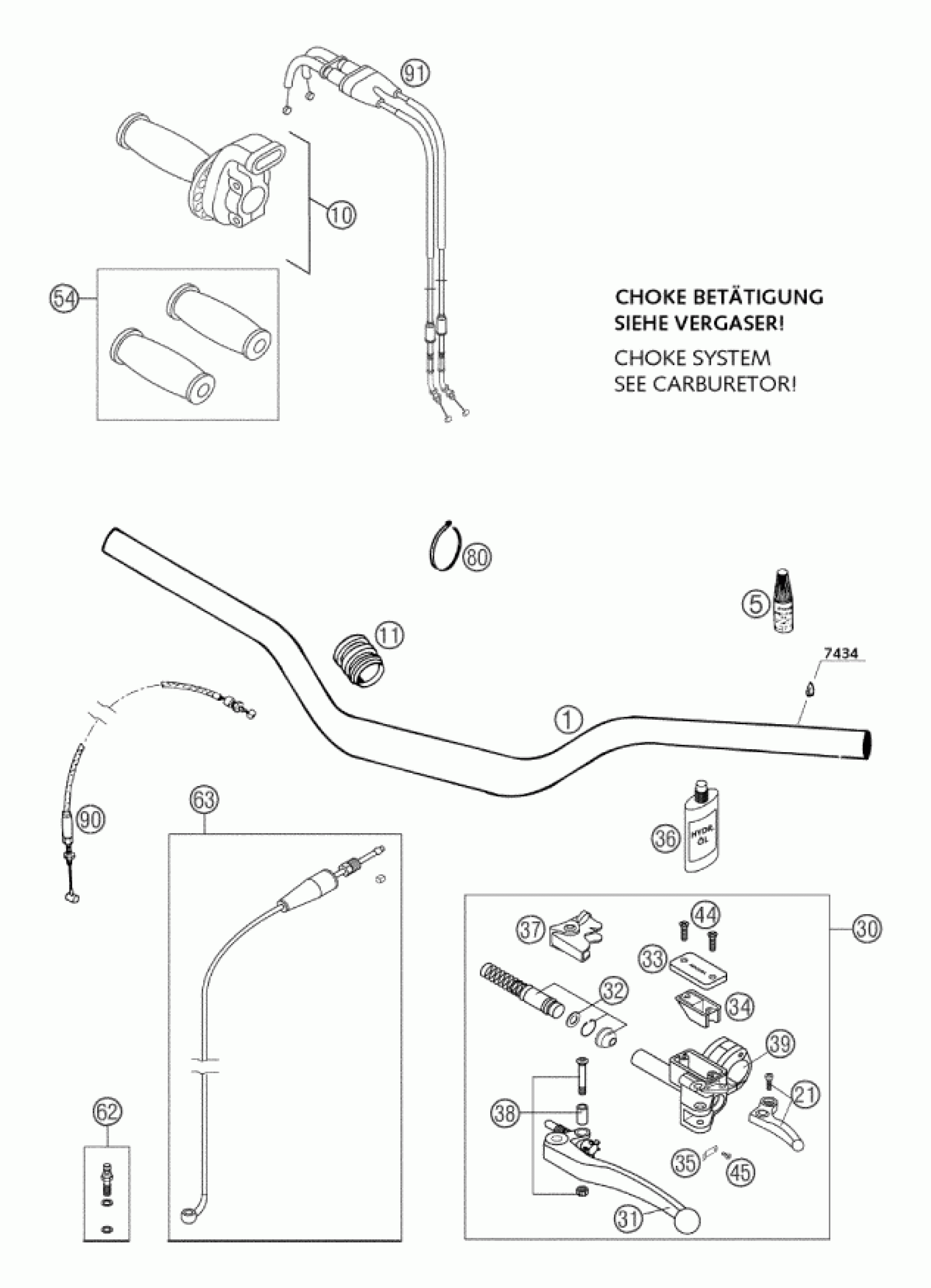

KTM 660 RALLYE 2002 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

ALU-HANDLEBAR SX,SC,ADVENT.'97

58302001300

Unavailable

5

GRIP GLUE

6899792

Unavailable

10

THROTTLE GRIP 02

58502010000

Unavailable

11

RUBBER SLEEVE D=21MM/23MM '93

54605057000

$20.66

21

LEVER CPL. RACING 2000

59002047000

$23.00

30

MASTERCYLINDER CPL.RACING '00

59002030000

$239.26

31

CLUTCH LEVER CPL. 125-200 '98

50302031000

$40.10

31

CLU.LEVER SHORT CPL. 2T 2000

50302031100

$39.16

32

REP.KIT PISTON 9,5MM RAC. 2000

59002032000

$62.71

33

COVER HYD.CLUTCH RACING 2000

59002033000

$41.51

34

RUBBER FOR RESERVOIR '98

50302034000

$18.97

35

SPRING PLATE FOR LEVER '98

50302035000

$1.90

36

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

37

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

38

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

39

CLAMP WITH PIN 2000

50302030150

$33.18

44

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

45

AH SCREW DIN7984-M 3X 6

0984030063

$1.49

54

RUBBER GRIPS PER GRIP 96-05

58502039044

Unavailable

62

HOLLOW SCREW F.HYDR.CLUTCH 01

58532062000

Unavailable

63

PIPE KIT FOR HYDR.CLUTCH

58532063000

Unavailable

80

Cable tie 200/4.6mm black

44011076200

Unavailable

90

DECOMPRESSION CABLE LC4 '93

58302094000

$29.35

91

THR.CABLE''OPEN-CLOSE'' RAC.20

59002091200

$54.59
