Description

Price

1

T-CONNECTOR FOR FUEL LINE

58007015000

$1.49

3

CLAMP YDNAC 10128 12MM

58031005000

$3.08

4

HOSE OG.ECO 1TBSE 7X13MM

58507116100

$20.66

5

FUEL HOSE DIN 73379 5,3X11,3

58507016100

Unavailable

6

CLAMP MINI 1

42013037000

$3.08

7

Hexagon nut DIN934 M8

0934080003

$2.05

8

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

10

FUEL PUMP MIKUNI DF52-601 01

58512087000

$136.97

11

HOLDING SHEET F. FUEL PUMP 01

58512088000

Unavailable

13

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

14

RUBBER GROMMET 20X11/M6X18 01

58538010000

Unavailable

16

FUEL FILTER 01

58507009000

Unavailable

17

COLLECTOR FUEL TAP RALLYE 2001

58507003100

Unavailable

18

CLUTCH F. FUEL HOSE CPC 02

58507010200

Unavailable

19

PLUG F. FUEL HOSE CPC 2002

58507010000

Unavailable

20

Self lock. nut DIN985-M6-A2

0985060003

$2.05

21

Washer DIN9021-A 6.4

0021060003

$2.05

22

RUBBER GROMMET 20X15-M6X8-(2)

58403002010

$11.49

23

SLEEVE FOR STEERING HEAD

54635022000

$1.54

24

SUPPORT FOR FUEL FILTER 01

58507019000

Unavailable

25

ANGLE PLUG F.FUEL HOSE CPC 02

58507010100

Unavailable

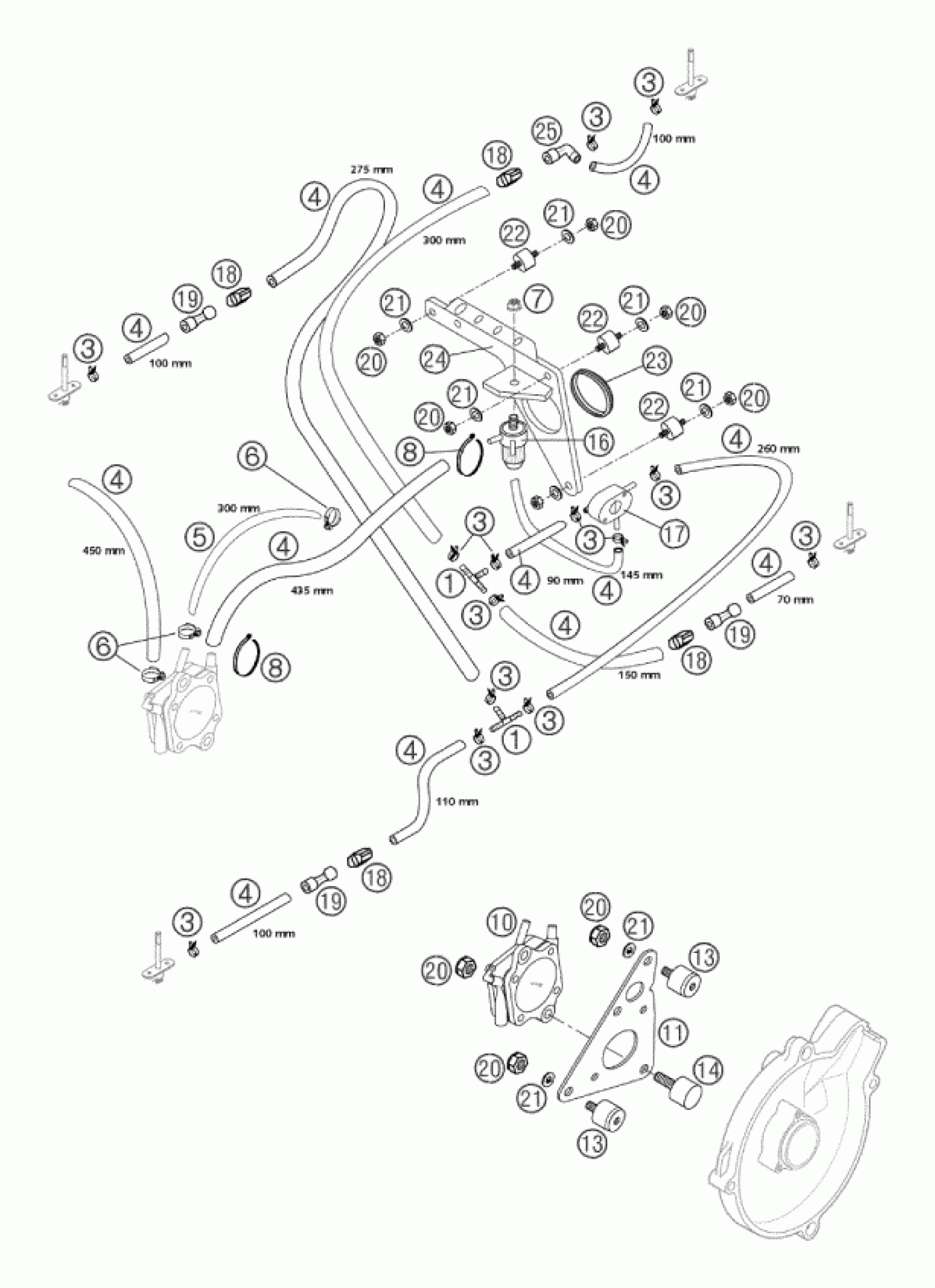

KTM 660 RALLYE 2002 FUEL PUMP Diagram

T-CONNECTOR FOR FUEL LINE

CLAMP YDNAC 10128 12MM

HOSE OG.ECO 1TBSE 7X13MM

FUEL HOSE DIN 73379 5,3X11,3

CLAMP MINI 1

Hexagon nut DIN934 M8

CABLE TIE 100/2,5MM BLACK

FUEL PUMP MIKUNI DF52-601 01

HOLDING SHEET F. FUEL PUMP 01

silentbloc 20x15-M6x10-(1)

RUBBER GROMMET 20X11/M6X18 01

FUEL FILTER 01

COLLECTOR FUEL TAP RALLYE 2001

CLUTCH F. FUEL HOSE CPC 02

PLUG F. FUEL HOSE CPC 2002

Self lock. nut DIN985-M6-A2

Washer DIN9021-A 6.4

RUBBER GROMMET 20X15-M6X8-(2)

SLEEVE FOR STEERING HEAD

SUPPORT FOR FUEL FILTER 01

ANGLE PLUG F.FUEL HOSE CPC 02
