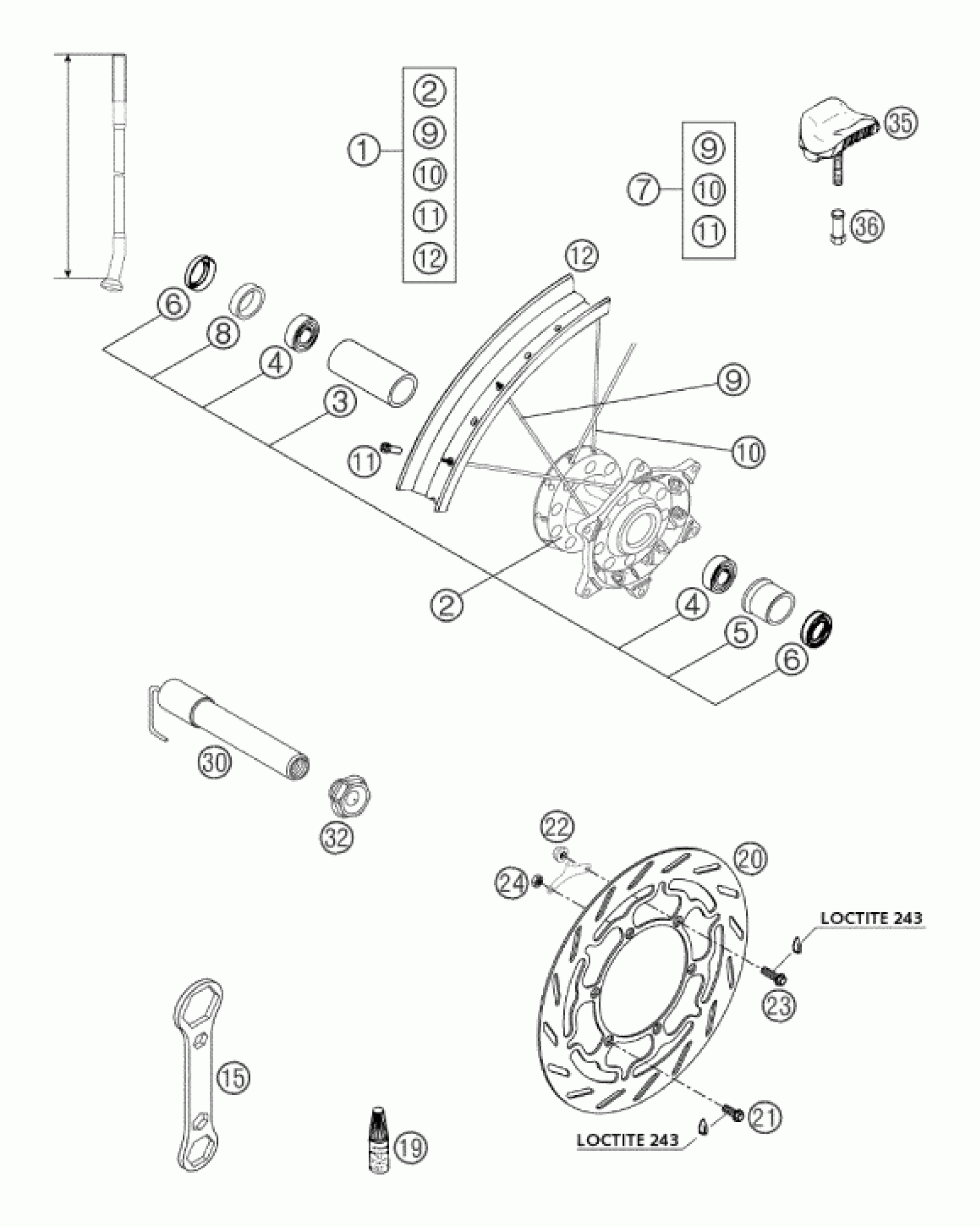

KTM 660 RALLYE 2002 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. RALLY 2001

58509010000

Unavailable

2

FRONT HUB MILLED RALLY 01

58509009000

Unavailable

3

BEAR.SPACER BUSHING

58509011000

Unavailable

4

GROOV.BALL BEAR. 61906-2RS1

0625061906

Unavailable

5

FRONT WHEEL SPACER BUSHING

58509081055

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPOKES CPL. RALLY 2001

58509069000

Unavailable

8

SPACER BUSHING SHORT

58509013000

Unavailable

12

FRONT RIM 1,60X21'' 36H RALLY0

58509070100

Unavailable

15

KEY F. FRONT AXLE SCREW

58509083000

Unavailable

19

LOCTITE 243 BLUE 5 ML

6899785

$28.04

20

BRAKE DISK FRONT D=300MM '96

58309060100

$287.50

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

22

Self locking nut M6 - 10

56509064100

$2.05

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

24

HEXAGON NUT DIN0439-M 6 LOW

0439060003

Unavailable

30

FRONT AXLE D=30MM

58509081000

Unavailable

32

COLLAR SCREW FRONT AXLE 03

60009082000

$16.82

35

RIM LOCK VM1 (1,60'')

51009100100

$17.57

36

NUT FOR WHEEL HOLDER '96

50310090050

$5.23
