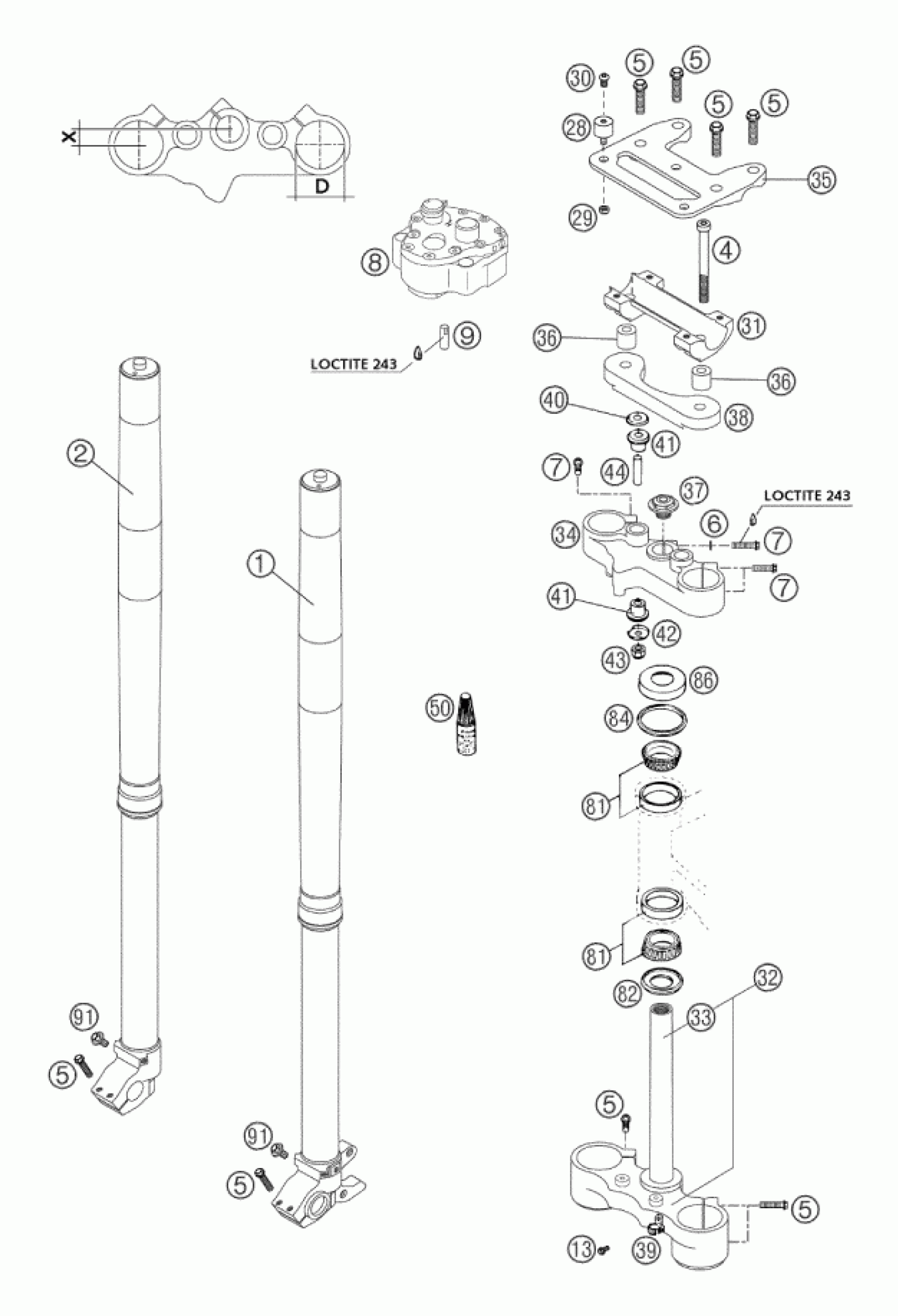

KTM 660 RALLYE 2002 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK LEG L/S WP48 RALLYE 2002

1418W712LS

Unavailable

2

FORK LEG R/S WP48 RALLYE 2002

1418W712RS

Unavailable

4

AH SCREW DIN6912-M10X100

0984101006

$11.50

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

6

PAIR OF WASHERS M10 NORDLOCK

50233041100

$4.11

7

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

8

STEERING DAMPER

58512050000

Unavailable

9

PIN F.STEERING STABILIZER 02

58502006000

Unavailable

13

SPECIAL SCREW M 5,0X10

0009050103

$2.05

28

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

29

Self lock. nut DIN985-M6-A2

0985060003

$2.05

30

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

31

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

32

BOT.TRIP.CL.CPL.X=20MM/D=60M

59001032120

Unavailable

33

FORK TUBE L=244 '91

50101033100

$85.17

34

TOP TRIPLE CLAMP RALLYE 2001

58501034020

Unavailable

35

GPS MOUNTING PLATE MILLED 2001

58502003000

Unavailable

36

HANDLEBAR BUSHING 17MM 01

58502005051

$14.57

37

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

$10.38

38

HOLD.F.STEERING SHOCK ABSORBER

58502009000

$60.16

39

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

40

washer 10.5x32x2

56401042000

$4.11

41

rubber bushing

56401040000

$5.23

42

WASHER 10,5X31

56401142000

$4.11

43

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

44

SPACER TUBE 10,2X12X44

56401041100

$5.88

50

LOCTITE 243 BLUE 5 ML

6899785

$28.04

81

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

86

STEERING HEAD COVER

54201086000

$8.50

91

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08
