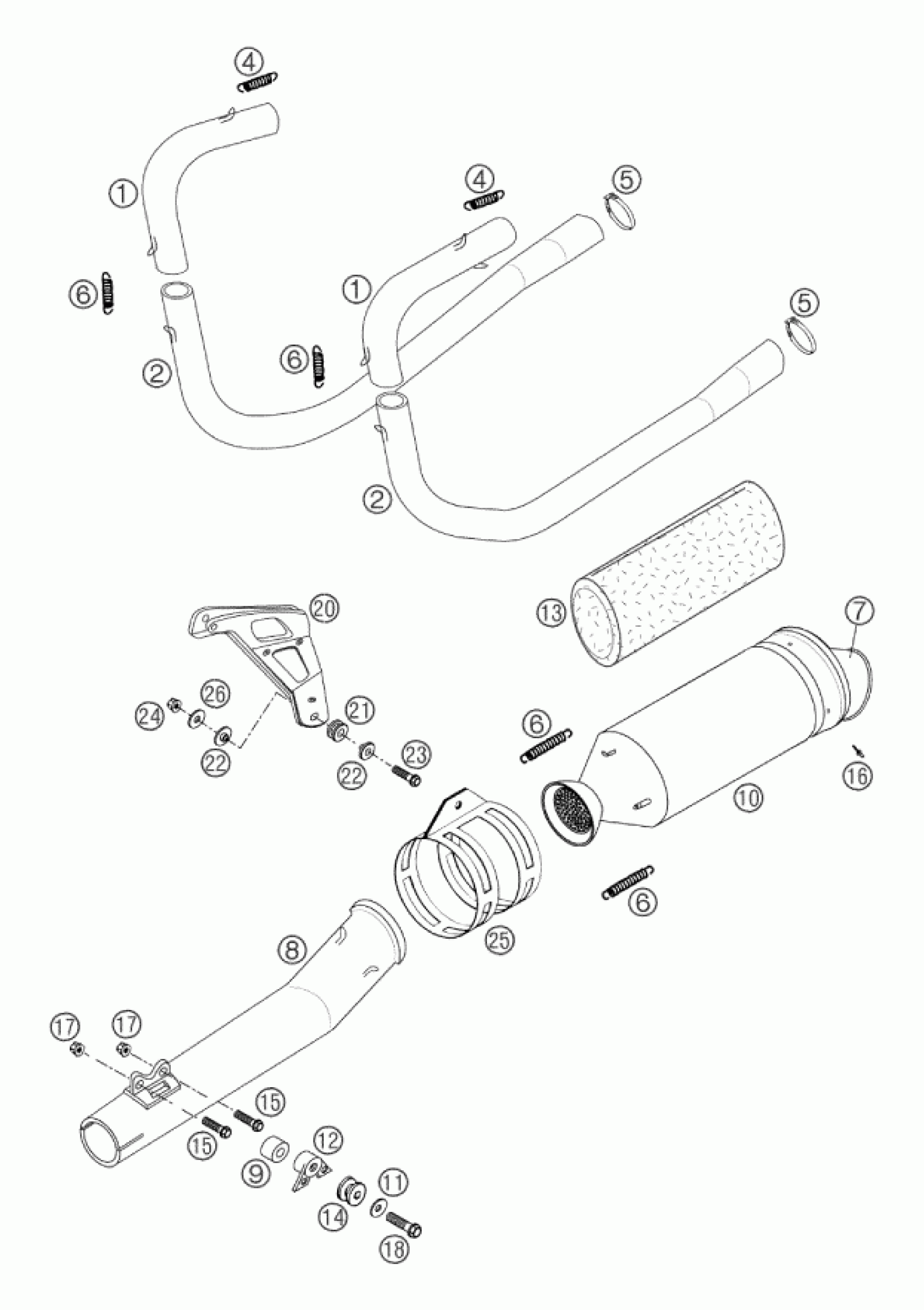

KTM 660 RALLYE 2002 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST MANIFOLD I RAL. 660 01

58505007200

Unavailable

2

EXHAUST MANIFOLD II RALLYE01

58505008200

$396.03

4

RETURN SPRING L=38 MM

54309036000

$5.23

5

HOSE CLAMP 32-50MM W=5MM

45007027000

$8.41

6

TENSION SPRING L=55MM

51005063000

$5.98

7

ENDCAP SILENCER OPEN 2000

58505171000

Unavailable

8

REAR EXH.PIPE RALLYE L/S 01

58505010200

Unavailable

0

REAR EXH.PIPE RALLYE R/S 01

58505110200

Unavailable

9

EXHAUST BUSH. 25X12,5X14 2001

58505040000

Unavailable

10

SILENCER THROTTLED L/S 2001

58505071300

Unavailable

11

WASHER DIN9021-A 8,4

0021080003

$1.49

12

EXHAUST SUPP. CENTER RALLY 02

5850506700090

Unavailable

13

STUFF.YARN 550GRAM L=550MM SX

59005078550

$87.98

14

damp. component silicone grey

54305068100

$8.31

15

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

16

DUMMY RIVET 4,8X10,0 NIRO

0011481002

$3.08

17

Self locking nut M6 - 10

56509064100

$2.05

18

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

20

EXHAUST BRACKET L/S CPL. 01

58555066000

Unavailable

0

EXHAUST BRACKET R/S CPL. 01

58555065000

Unavailable

21

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

22

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

23

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

24

Hex. nut DIN 934 M6

0934060003

$1.49

25

CLAMP FOR SILENCER '99

58505161100

Unavailable

26

WASHER 6,2X18X2

50232050000

$5.23
