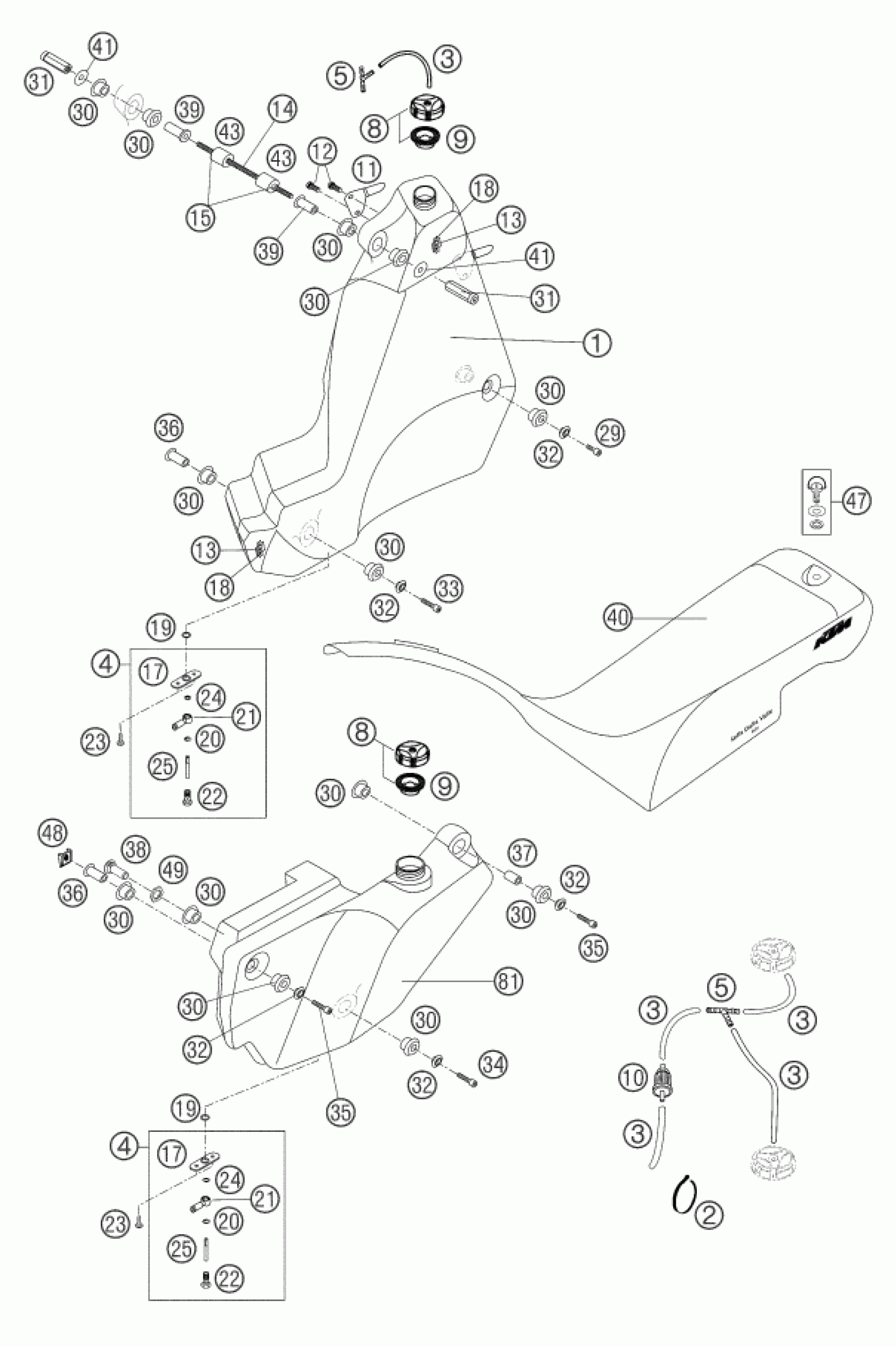

KTM 660 RALLY FACTORY REPLICA 2007 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK FR. L/S RALLYE 2004

5850701310004

Unavailable

1

FUEL TANK FR. R/S RALLYE 2004

5850711310004

Unavailable

2

CABLE TIE 100/2,5MM BLACK

44011076100

$1.49

3

Hose 5x8mm

58507007001

$83.11

4

FUEL CONNECTION CPL. 01

58507008000

$35.24

5

T-JOINT BREATHER HOSE

59031083000

$12.11

8

FILLER CAP CPL. SMALL

49007008044

$23.65

9

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

10

FUEL FILTER ELEMENT

58312099052

$16.85

11

SEAT HOLDING SHEET L/S 01

58554013051

Unavailable

11

SEAT HOLDING SHEET R/S 01

58554013050

Unavailable

12

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

13

Past mount quick lock

45007040050

$4.11

14

THREADPOLE M8 L=226 MM

58512067000

Unavailable

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

17

FUEL FLANGE SHEET 01

58507008050

$10.84

18

SHEET MET.SCR.DIN7981-3,5X13

0981350133

$1.49

19

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

20

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

21

RING COMPONENT 10/6MM

49138493000

$10.74

22

HOLLOW SCREW M10X1X24 RALLY 02

58507025000

Unavailable

23

SHEET MET.SCR.DIN7982 4,8X16

0982480163

Unavailable

24

COPPER GASKET 10,2X14X2 MM 01

0603101420

$3.08

25

FUEL FLANGE-STRAINER 03

58507008010

$5.60

29

AH SCREW DIN912 M8x20

0912080203

$2.05

30

rubber bushing

56401040000

$5.23

31

TANK NUT M8 01

58507005000

Unavailable

32

BUSHING SLEEVE OUT 2001

58512062000

$17.68

33

AH SCREW DIN912 M8X50

0912080503

$3.08

34

AH SCREW DIN0912-M 8X30

0912080303

$2.05

35

AH collar screw DIN0912 M8x40

0912080403

$2.05

36

Inner bushing sleeve 34mm

58512063000

$24.39

37

BUSHING SLEEVE IN. 25MM 2001

58512069000

Unavailable

38

FIXING SCREW TANK REAR

58512068100

Unavailable

39

BUSHING SLEEVE IN. 40MM 2001

58512064000

Unavailable

40

SEAT RALLYE 2006

58507040700

Unavailable

41

WASHER DIN9021-A 8,4

0021080003

$1.49

43

TANKDISTANCE 36 MM RALLYE 2001

58512065000

Unavailable

47

QUICK RELEASE CPL. '96

58307040551

$24.21

48

RANGE CHANGE METAL NUT M8

54603048000

$4.11

81

SIDE TANK L/S ORANGE 2004

5851209530004

Unavailable

81

SIDE TANK R/S ORANGE 2004

5851209630004

Unavailable

49

NUT F.TANK BRAKET REAR

60512063050

$26.55
