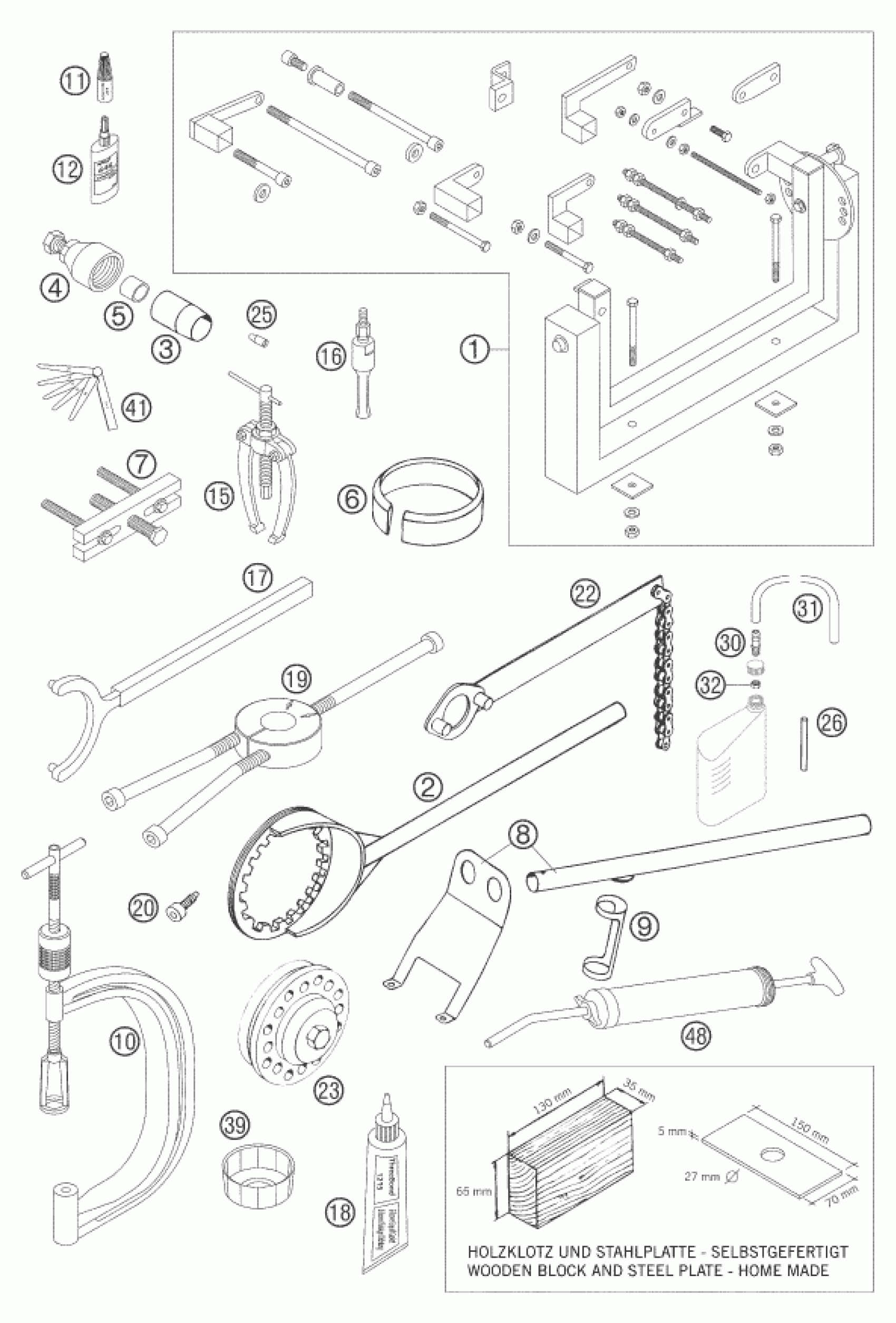

KTM 660 RALLY FACTORY REPLICA 2007 Special tools (engine) Diagram

#

Description
Price

1

ASSY SUPPORT WITH ENGINEHOLDER

56012001044

$1,183.49

2

CLUTCH HOLDER D=160MM LC4'94

58329003000

$113.09

3

MOUNTING SLEEVE D=25MM

58012005025

$36.46

4

MAGNETO EXTRACTOR

58429009000

$40.04

5

PROTECTOR CAP F.CRANKSHAFT M16

58429031000

$21.09

6

PISTON RING COMPRESSOR D=102MM

58529015102

$136.12

7

EXTRACTOR PRIM. GEAR CPL.

59029021044

$15.30

39

WRENCH SCREW FILTER

58329039000

Unavailable

41

FEELER GAUGE SET10,12,15,20,25

59029041000

$16.99

48

INJEKTION FOR FRONT PIPE '99

58429048000

$172.25

20

LOCATING SCREW M8 L=23

58030080000

$17.66

22

HOLDING SPANNER FOR SPROCKET

51012012000

$98.42

23

RIVETTING TOOL FOR CLUTCH

54629027000

$229.84

25

MOUNT.SLEEVE F. SH.S.RING WAPU

58529005000

$53.52

12

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

15

BUSHING EXTRACTOR

15112017000

$179.32

16

INTERN.BEAR.PULLER 12-16 MM

15112018000

$249.22

16

INTERN.BEAR.PULLER 18-23 MM

15112018100

$278.54

26

LIMIT PLUG GAUGE F.VALVE GUIDE

58029026007

$48.10

30

BLEEDER FLANGE M8 WS=10 '99

59030022000

$5.73

31

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

32

Hexagon nut DIN934 M8

0934080003

$2.05

10

VALVE SPRING LEVER

59029019000

$415.46

11

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

17

HOLDING WRENCH FOR WHEEL

58429012000

$110.60

18

SILICON GASKET THREE-BOND

309098

$28.88

19

MOUNTING TOOL F.BEARING NJ 207

58429037043

$91.88

19

MOUNTING TOOL F.BEARING NJ 306

58429037040

$91.62

8

VALVE INSTALLATION KIT

58012019000

$109.58

9

PUSH INSERT

6276470

Unavailable
