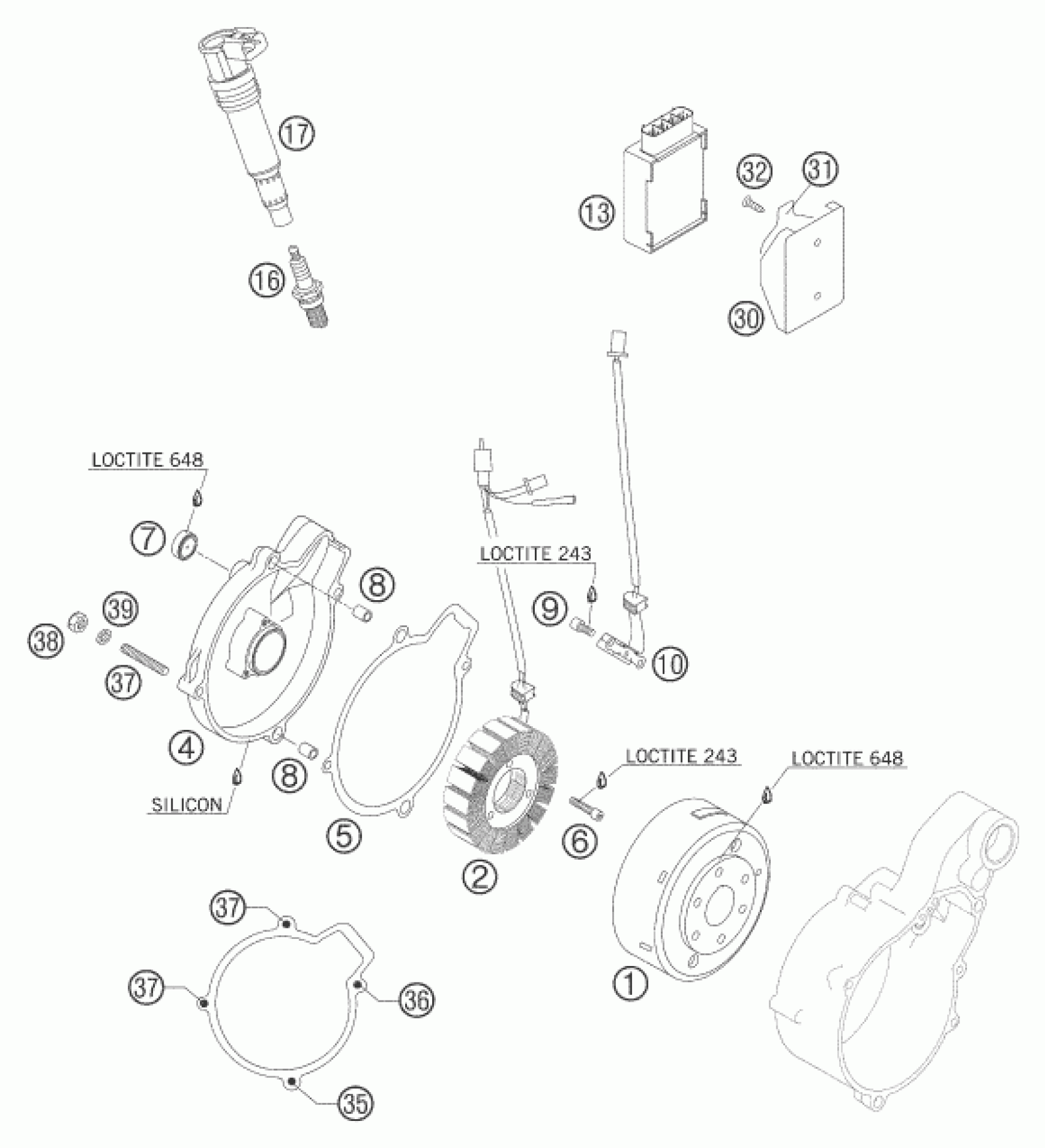

KTM 660 RALLY FACTORY REPLICA 2007 IGNITION SYSTEM Diagram

#

Description
Price

1

FLYWHEEL KOKUSAN GP9128 '97

58439005100

$340.33

2

STATOR KOKUSAN LOOSE '96

58439004000

$202.68

4

IGNITION COVER CPL. BLACK 04

5843000214430

$62.66

5

IGNITION COVER GASKET 2001

58530040000

Unavailable

6

AH SCREW DIN0912-M 5X25

0912050253

$1.49

7

INSPECT.GLASS GW 20-7 MINERAL

58430095100

$25.05

8

DOWEL 9,8 X 7 X 10

49030090000

$2.05

9

SHCS DIN 912 M5x8

0912050083

$1.49

10

PULSER COIL

58439034000

$103.78

13

CDI-BOX RALLYE 03

58539031100

Unavailable

16

SPARK PLUG NGK DR9EA

58539093000

Unavailable

17

STICK COIL (IGN.C./SPA.P.C.)01

58539006000

$296.88

30

RUBBER BRACKET FOR DIGI-BOX 03

58439030200

$7.25

31

SUPPORT FOR RUBBER BRACKET 03

58439030250

$15.51

32

FLAT HEAD SCREW DIN7991 M6X10

0991060103

Unavailable

35

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

36

HH COLLAR SCREW M 6X80 WS=8

0015060803

$2.05

37

THREAD PIN WITH SLOT M6x40

0766060400

Unavailable

38

Hex. nut DIN 934 M6

0934060003

$1.49

39

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05
