FRONT FORK DISASSEMBLED

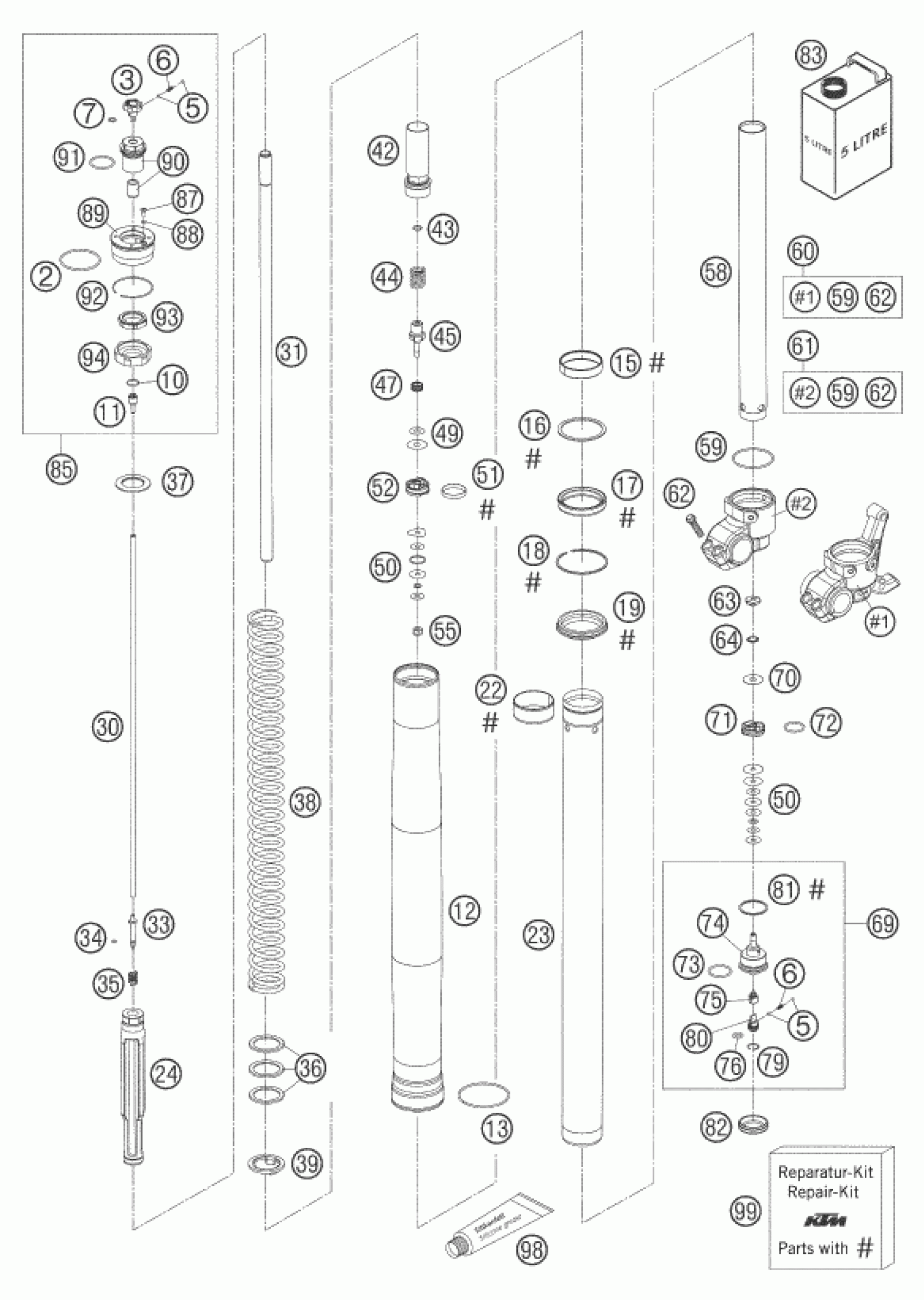

KTM 660 RALLY FACTORY REPLICA 2007 FRONT FORK DISASSEMBLED Diagram
#
2
O-ring 45x2 NBR70 siliconized
46810340
$1.49
3
Adjuster rebound
48600018
$4.11
5
Steel ball d3
40540603
$1.49
6
Spring (1,7) l7,9
48600028
$3.08
7
O-ring 6x1,5 NBR70
48600044
$1.49
10
O-ring 12x1,5 NBR70
48600043
$2.05
11
Tube tap d4x25
48600019
$3.08
12
OUTER T. L=577 D=54/60 2L ANTR
48600421E
$308.17
13
Round-wire snap ring 48x2
48600016
$3.08
15
DU-BUSH D48XD52X12DDL02
48600429
$12.05
16
Supportwasher 50x57,6x1,5
48600013
$3.08
17
Shaft seal SKF 48x57,8x9,5 bla
48600399
$13.64
18
Snap ring SB58x1,5 acc drawing
48600070
$2.05
19
DUST CAP D=48 58,4X11,8
48600400
$12.80
22
DU-BUSH D47XD49X20DDL02
48600428
$12.05
23
INNER TUBE D=48 L=595 2005
48600417
$233.64
24
Stop 14,4x32,1x200 cpl.
48600380S1
$56.56
30
ADJUSTMENT TUBE L=517MM
48600092
$54.69
31
PISTON ROD D=14 L=551 M11X1
48600409
$104.25
33
Needle 6x42,6 rebound
48600189
$34.68
34
O-ring 3x1,5 NBR70
48600046
$1.49
35
Spring (7,2) 4-23 needle
48600033
$5.23
36
Washer 32x42x2,5 plastic
48600113
$11.12
36
Preload bush 42x26,5x2,5
48600036
$2.05
36
Preload bush 26,5x42x5
48600037
$4.11
36
Preload bush 26,5x42x1,5
48600053
$4.11
37
SPACER 43,2X33X15
48600154
Unavailable
38
SPRING 4,8N/MM SET
91410017S
$150.34
39
Spring retainer 33,5x43x3
48600021
$16.73
42
SCREW SLEEVE M29,3X1 L=90 CPL.
48600383S
$84.24
43
O-ring 8x1,25 NBR70 siliconize
48600239
$1.49
44
Spring (15) 12-34,5 rebound
48600403
$31.71
45
Tap 6x45 rebound
48600203
$8.37
47
Spring (11,7) 1,5-8 valve
35480377
$2.05
49
SHIM 8X18X0,10
43570120
$2.05
49
CHECK VALVE 8X24X0,1
48600062
$2.05
49
Shim 8x20x0,10
48600215
$2.05
49
Shim 8x22x0,10
48600216
$2.05
49
Shim 8X11X0,40
48600218
$2.05
50
Shim 6x24x0,10
48600063
Unavailable
50
Shim 6x22x0,10
48600064
Unavailable
50
Shim 6x20x0,10
48600065
Unavailable
50
Shim 6x24x0,10 delta
48600116
Unavailable
50
Shim 6x14x0,10
40540401
Unavailable
50
Shim 6x16x0,10
40540402
Unavailable
50
Shim 6x18x0,10
40540403
Unavailable
50
SHIM 6X14X0,15
40540405
Unavailable
50
SHIM 6X16X0,15
40540406
Unavailable
50
SHIM 6X16X0,25
40540414
Unavailable
50
SHIM 6X18X0,25
40540415
Unavailable
50
Shim 6x10x0,30
40540447
Unavailable
50
Shim 6x11x0,20
40541402
Unavailable
50
Shim 6x10x0,10
40541404
Unavailable
51
Pistonring 26x28x5
48600060
$5.23
52
Piston 6x27,65x12 rebound
48600201
$52.12
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
$4.11
58
TUBE 29,3X1X390 D=8,5MM
48600081
$155.20
59
O-ring 46x2 NBR70 siliconized
48600048
$3.08
60
AXLE CLAMP L/S CPL. RALLYE 05
48600171S
Unavailable
61
AXLE CLAMP R/S CPL. RALLYE 05
48600170S
Unavailable
62
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
63
Nut valve M6x0,5 h6,5 WAF17
48600163
$3.08
64
Spring (8,5) l6,5 valve
48600202
$2.05
69
TAP COMPRESSION CPL. 03
48600152S1
$37.67
70
Shim 8x24x0,40
48600061
$2.05
71
Piston 6x27,8x9 compression
48600047
$9.81
72
O-ring 21x2 NBR70
46811499
$1.49
73
O-ring 24x2 NBR70
35480320
$1.49
74
TAP COMPRESSION
48600152
$37.67
75
Needle 10x11,6 compression
48600190
$13.64
76
O-ring 8x2 NBR70
48600049
$1.49
79
Round-wire snap ring 12x1 DIN7
48600051
$3.08
80
Adjustment screw slot compress
48600034
$7.35
81
Copper disc 29,5x33,5x1
48600004
$4.11
82
Rubber cap 35x10 NBR80
48600141
$4.11
85
PRE-LOAD ADJUSTER CPL.(1 PC.)
48600075S
$497.96
87
VENT SCREW M4X8
48600076
$2.05
83
FORK OIL SAE5 5L 2005
48600401S1
$149.59
88
O-ring 3x1,5 NBR70
48600046
$1.49
89
SCREW CAP M51X1,5
48600075
$124.95
90
ADAPTER ADJUST. KNOB + BUSHING
48600073S
$154.12
91
O-ring 26x2 NBR90
48600077
$1.49
92
Round-wire snap ring 49x1,5
46810010
$3.08
93
Locking nut M25x1 LH h7 WAF32
48600072
$16.11
94
Carrier ring spring fork
48600071
$38.54
98
SILICONE GREASE F. DUST STRI
T511
$34.59
99
REPAIR-KIT EXC FRONT FORK06/07
R14013
$106.21
