- 660 RALLY FACTORY REPLICA 2007
EXHAUST SYSTEM

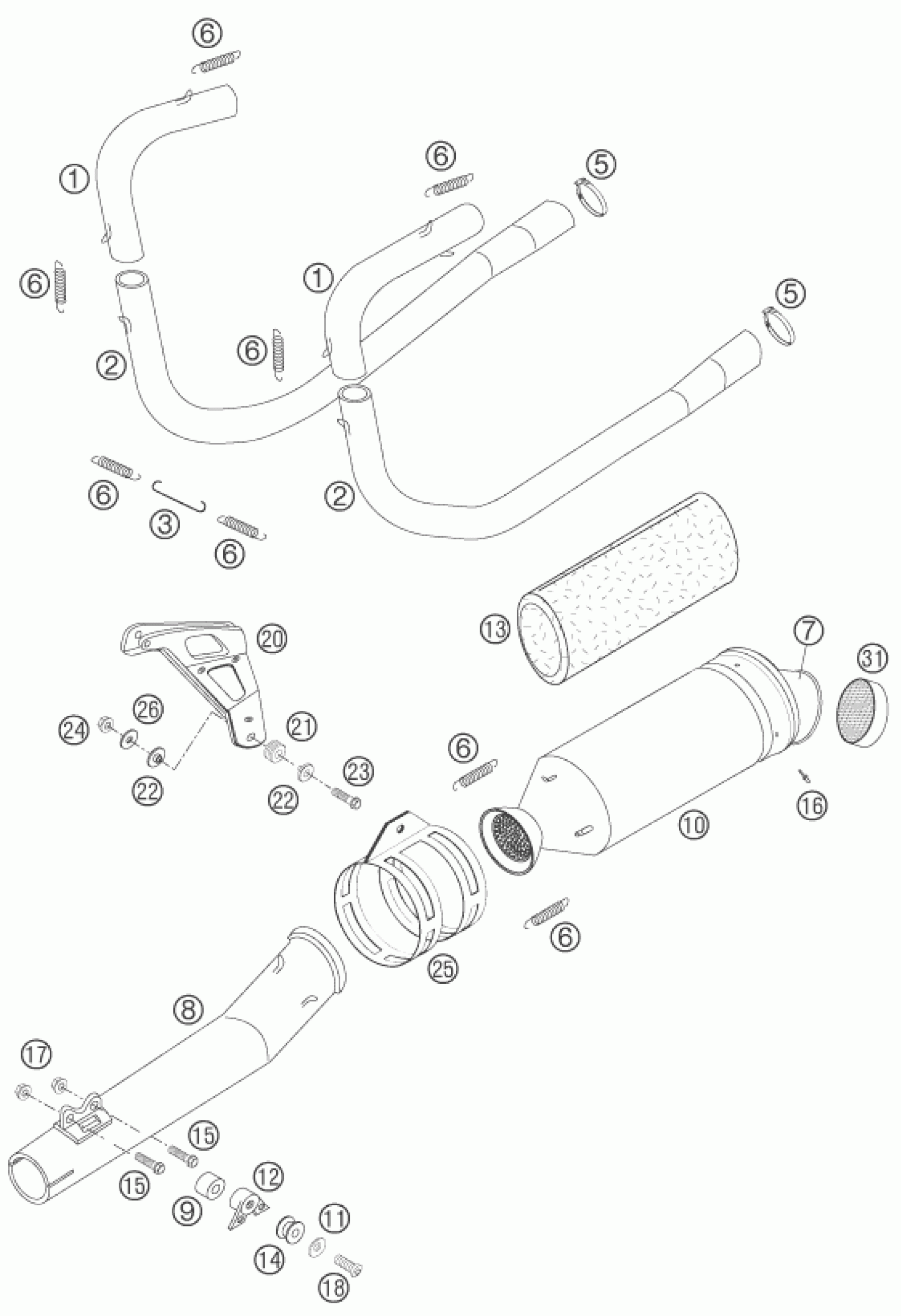

KTM 660 RALLY FACTORY REPLICA 2007 EXHAUST SYSTEM Diagram
#
Description
Price
1
EXHAUST MANIFOLD I RALLYE 06
58505007300
Unavailable
2
EXHAUST MANIFOLD II RALLYE 06
58505008300
Unavailable
3
SPRING CLIP SIDE STAND 05
58503031000
Unavailable
5
EXHAUST CLAMP RALLYE 02
58505058000
Unavailable
6
TEN.SPRING L=62MM EY.MOVEABLE
50305016000
$4.57
7
ENDCAP SILENCER OPEN 2000
58505171000
Unavailable
8
REAR EXH.PIPE RALLYE L/S 01
58505010200
Unavailable
8
REAR EXH.PIPE RALLYE R/S 01
58505110200
Unavailable
9
EXHAUST BUSH. 25X12,5X14 2001
58505040000
Unavailable
10
SILENCER THROTTLED L/S 2001
58505071300
Unavailable
10
SILENCER THROTTLED R/S 2001
58505171300
Unavailable
11
SPECIAL WASHER ALU 8 X 24 MM
58303061000
$5.23
12
EXHAUST SUPP. CENTER RALLY 02
5850506700090
Unavailable
13
STUFF.YARN 550GRAM L=550MM SX
59005078550
$87.98
14
damp. component silicone grey
54305068100
$8.31
15
HH COLLAR SCREW M 6X16 WS=8
0015060163
$3.08
16
DUMMY RIVET 4,8X 8 NIRO
0011480800
$3.08
17
Self locking nut M6 - 10
56509064100
$2.05
18
FLAT HEAD SCREW M8X16 10.9
0991080163
Unavailable
20
EXHAUST BRACKET L/S CPL. 01
58555066000
Unavailable
20
EXHAUST BRACKET R/S CPL. 01
58555065000
Unavailable
21
EXHAUST BRACKET RUBBER BLACK
54605068000
$6.54
22
BUSHING 7,5X12X28X7,8 '96
54605069000
$6.07
23
HH COLLAR SCREW M 6X35 WS=8
0015060353
$3.08
24
Hex. nut DIN 934 M6
0934060003
$1.49
25
CLAMP FOR SILENCER 03
58505161200
Unavailable
26
WASHER 6,2X18X2
50232050000
$5.23
31
HOLE RESTRICTOR RALLYE 2002
58505071350
Unavailable
