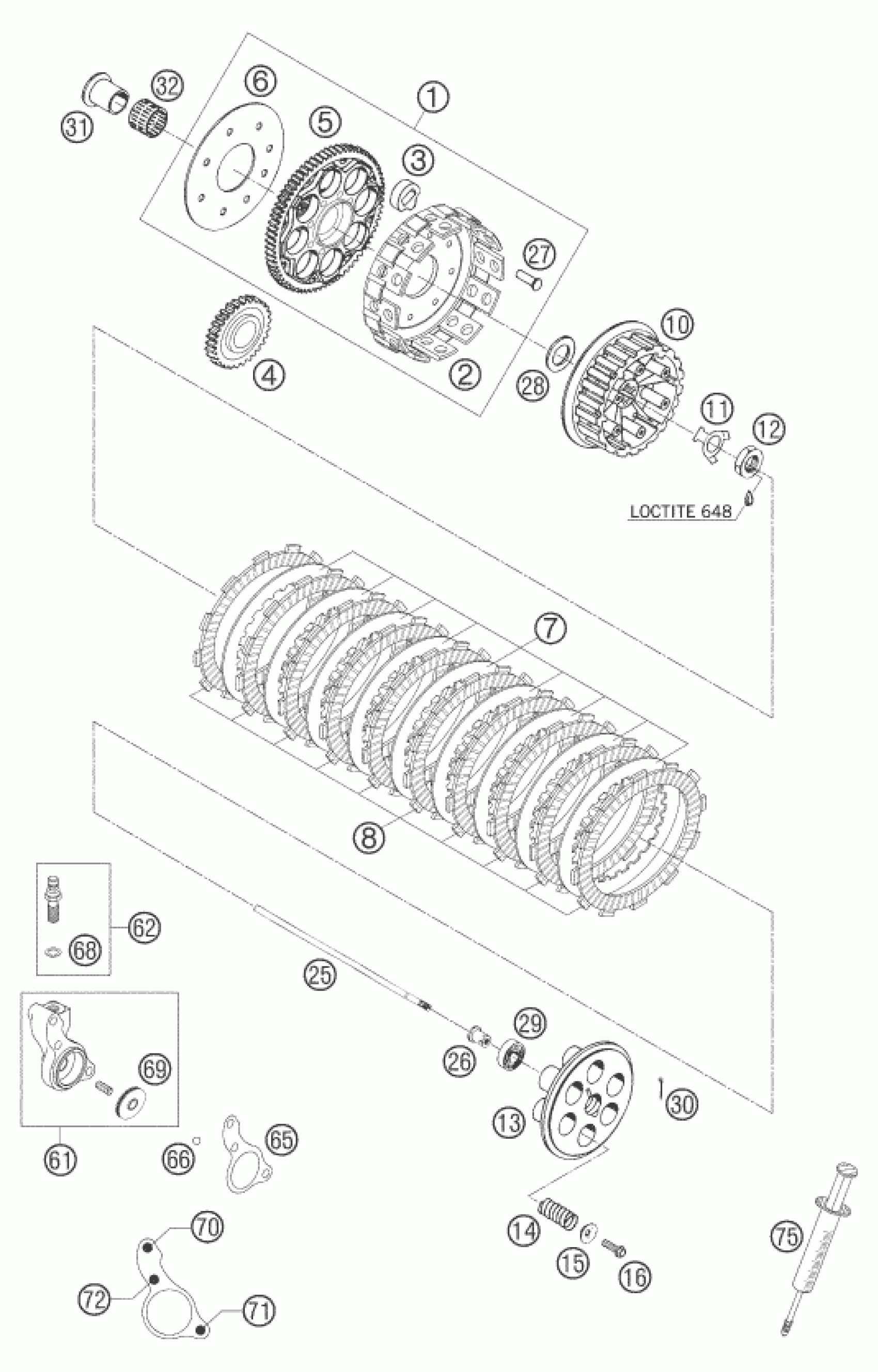

KTM 660 RALLY FACTORY REPLICA 2007 CLUTCH Diagram

#

Description
Price

1

OUTER CLUT. HUB CPL. RALLYE 01

58532001144

Unavailable

2

OUTER CLUTCH HUB MILLED 2001

58532001100

Unavailable

3

DAMPING ELEMENT '94

58332026000

$11.77

4

PRIMARY GEAR WHEEL 31-T 2001

58532000131

$66.14

5

CLUTCH WHEEL 79-T 2001

58532000079

Unavailable

6

BRACKET 57 x 132 x 1,5 '94

58332028000

$5.55

7

STEEL DISK 1,5 MM LC4'94

58332112000

$13.83

8

LINING DISK 2,7MM FCC 02

58332011300

$28.98

10

INNER CLUTCH HUB RALLYE 2004

58532002100

Unavailable

11

LOCK WASHER '94

58332018000

$3.85

12

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

13

PRESSURE CAP LC4/LC4-E 04

58332003300

$35.76

14

CLUTCH SPRING 2,8 X 37

58332080000

$7.94

15

SPRING RETAINER 6,2 X 20 X 3,2

58132081000

$3.08

16

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

25

PUSH ROD 224 MM LC4'94

58332017000

$17.30

26

PRESSURE BOLT LC4'94

58332032000

$15.86

27

RIVET 6 X 23 X 11,2

58332007000

$4.11

28

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

$18.72

29

deep groove ball bearing 6001.

0625060016

$18.88

30

PIN DIN0094-2,0X16

0094020163

$1.73

31

INNER RING WITH COLLAR

50332070000

$49.27

32

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

61

CYLINDER D=25MM CPL. RALLYE 01

58532061044

Unavailable

62

Hollow screw cmpl. M 10x1 98

50332062000

$34.96

65

CLUTCH RELEASE GASKET

58632065000

$6.91

66

BALL DIN5401-7

0401070003

$1.49

68

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

69

PISTON WITH O-RING D=25MM 2001

58532066000

Unavailable

70

AH SCREW DIN0912-M 6X30

0912060303

$2.05

71

AH SCREW DIN6912-M 6X16

0984060163

$2.05

72

AH SCREW DIN0912-M 6X25

0912060253

$2.05

75

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26
