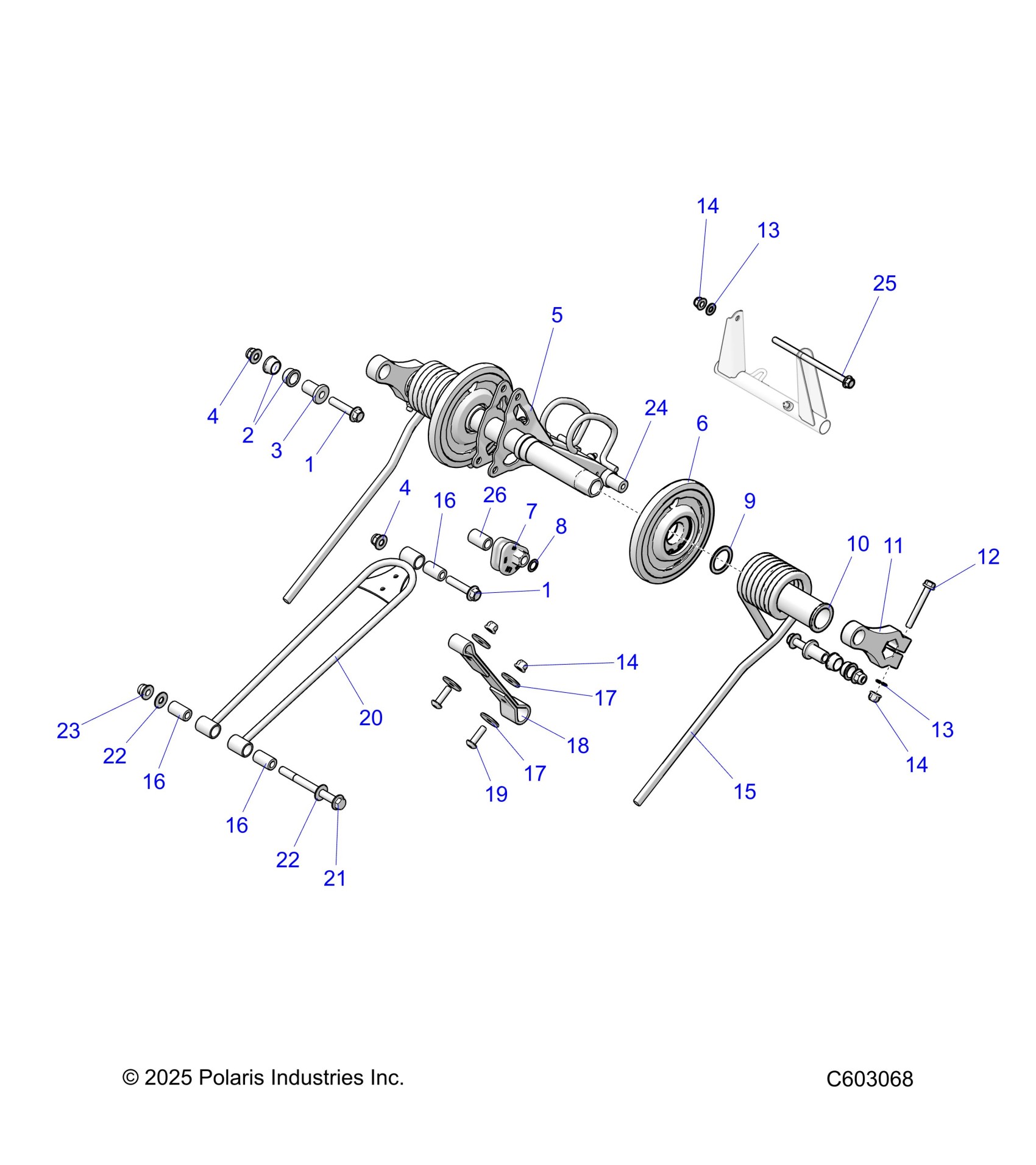

Polaris 650 VOYAGEUR ULTIMATE (R01) - S26TFN6RSP/RSL SUSPENSION, TORQUE ARM, REAR - S26TFN6RSP/RSL (C603068) Diagram

#

Description
Price

1

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

1

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$6.39

2

BUSHING-CRANK

5438876

$7.99

3

SHAFT-RTA MOUNT

5141400

$13.75

4

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

5

WELD-RTA BLK

1544357-329

$211.99

6

RING-RETAINING [1 PER]

7710486

Unavailable

6

BEARING [1 PER]

3514445

Unavailable

6

ASM-WHEEL,PLAIN,6.38,6007

1590001

$72.84

7

ROLLER-SPRING,TRI-ADJ,RH

5434590

$28.32

7

ROLLER-SPRING,TRI-ADJ,LH

5434589

$32.37

8

CLIP-PUSH ON

7080394

$2.39

9

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

10

SLEEVE-TORSION SPRING

5434989

$3.99

11

ASM-ARM 83.2 NARROW [INCL. BUSHING ITEM 2]

1544129

$40.46

12

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

13

WASHER-.344X.688X.063 FL-ZOD

7556524

$1.49

13

WASHER-.344X.688X.063 FL-ZOD

7556524

$1.49

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

15

SPRING-TORS TRAP14.4/72 LH BLK OPTIONAL SPRING (HEAVY DUTY)

7044813-329

$133.56

15

SPRING-TORS TRAP14.4/72 RH BLK OPTIONAL SPRING (HEAVY DUTY)

7044814-329

$133.56

15

SPRING-TORS TRAP 14.4/86LH BLK STD, SPRING (MEDIUM DUTY)

7045924-329

$89.03

15

SPRING-TORS TRAP 14.4/86RH BLK STD, SPRING (MEDIUM DUTY)

7045925-329

$89.03

15

SPRING-TORS TRAP 20.4 LH BLK OPTIONAL SPRING (EXTRA HEAVY DUTY)

7046128-329

$159.99

15

SPRING-TORS TRAP 20.4 RH BLK OPTIONAL SPRING (EXTRA HEAVY DUTY)

7046129-329

$159.99

16

BUSHING-M10X17.5X30

5137360

$3.99

16

BUSHING-M10X17.5X30

5137360

$3.99

16

BUSHING-M10X17.5X30

5137360

$3.99

17

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

17

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

18

STRAP-LIMITER REAR

5416384

$24.27

19

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$1.59

20

ROD, SHOCK, WT, BLACK

1543727-329

$44.51

21

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$13.59

22

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

22

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

22

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

22

WSHR-10.5X24X1.2446 ZOD HRD

7556545

$3.19

23

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

24

SHAFT-RTA LOWER

5342241

$27.99

25

SCR-HXFL-M8X1.25X150 8.8 ZOD

7519200

$9.59

26

SPACER-.520X.770X1.185,HDPE

5334285

$2.39
