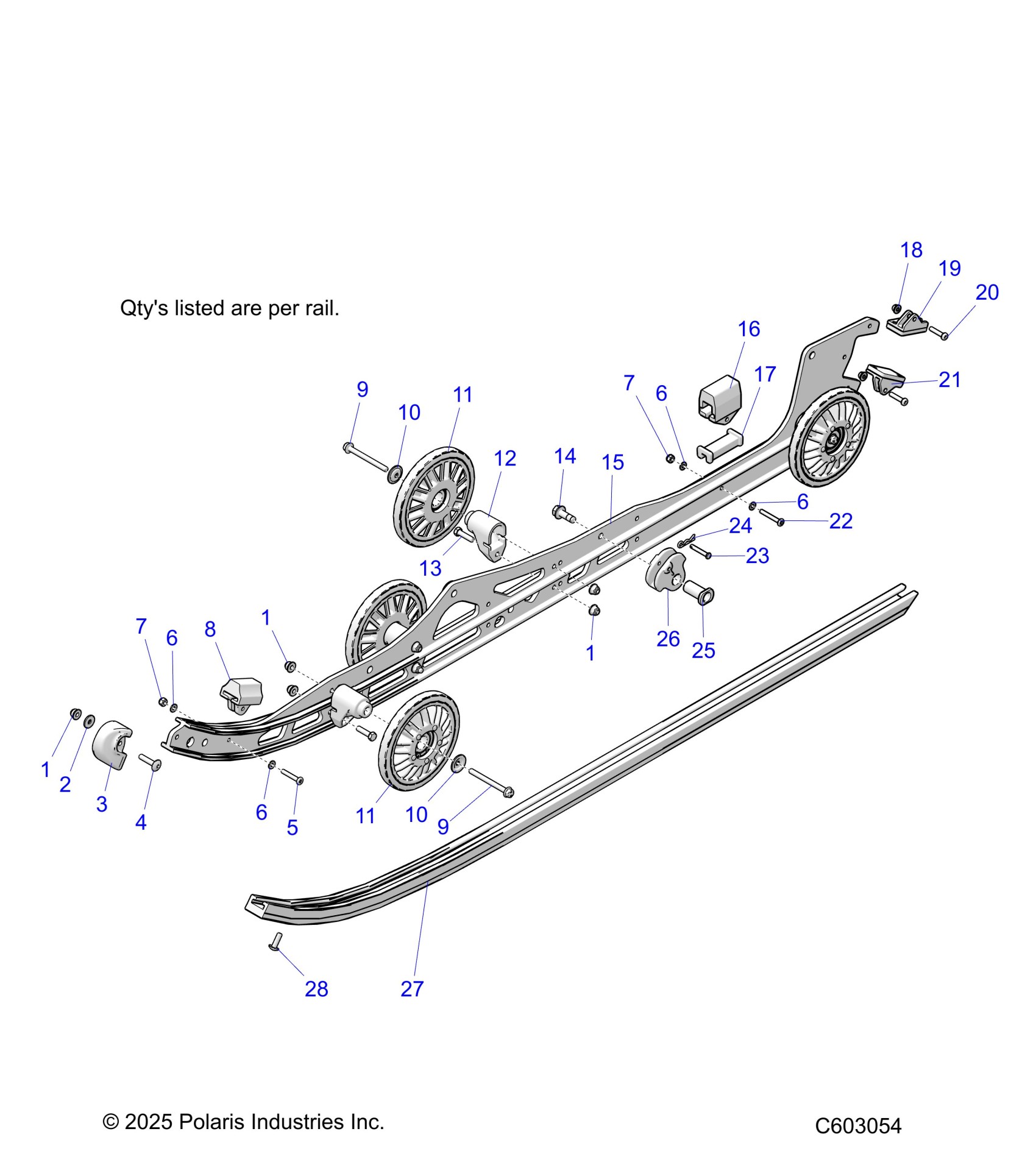

Polaris 650 VOYAGEUR ULTIMATE (R01) - S26TFN6RSP/RSL SUSPENSION, RAIL BEAM, LH/RH - S26TFN6RSP/RSL (C603054) Diagram

#

Description
Price

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

2

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

3

CAP, RAIL TIP

5452441

$16.99

4

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

5

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

6

Washer

7555783

$3.99

6

Washer

7555783

$3.99

6

Washer

7555783

$3.99

6

Washer

7555783

$3.99

7

NUT-NYLOC 10-24

7541925

$1.49

7

NUT-NYLOC 10-24

7541925

$1.49

8

BUMPER, JOUNCE, FRONT

5522253

$8.89

9

SCR-HXFL-M6X1.0X70 10.9 ZFB

7521331-70

$1.49

9

SCR-HXFL-M6X1.0X70 10.9 ZFB

7521331-70

$1.49

10

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

10

WSHR-M6 OFFSET 2.01 ZOD

7556799

$3.19

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

11

RING-RETAINING

7710444

$8.79

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK

3515142

$19.99

11

RING-RETAINING

7710444

$8.79

12

BLOCK-WHEEL MOUNT

5633278

$29.99

13

SCREW-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

14

SCR-HXFL-M8X1.25X25 10.9 ZOD P

7519739

$3.03

15

RAIL-155 VELOCITY BLUE [RAIL ONLY]

5144673-689

$399.99

16

BUMPER-JOUNCE RTA

5418223

$34.99

17

LINER, BUMPER,LOW PROFILE

5451787

$6.99

18

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$3.19

19

ASM-ARTICULATION STOP LH

1545178

Unavailable

20

SCR-M5X0.8X25,TRX,GR8.8

7519939

$3.99

21

ASM-ARTICULATION STOP RH

1545179

Unavailable

22

SCREW-#10-24X1.5,TRX/PN MC-Y

7510504

$6.76

23

PIN-CLEVIS 3/16X1 1/4

7661123

$3.99

24

PIN-HITCH, 3/32-Y

7661644

$2.39

25

SHAFT-SPRING ROLLER

5144612

$10.51

26

GUIDE, SPRING, SQUARE

5434334

$28.32

27

HI-FAX-146 BLK SVC SLIDER

5526364-070

$56.65

28

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19
