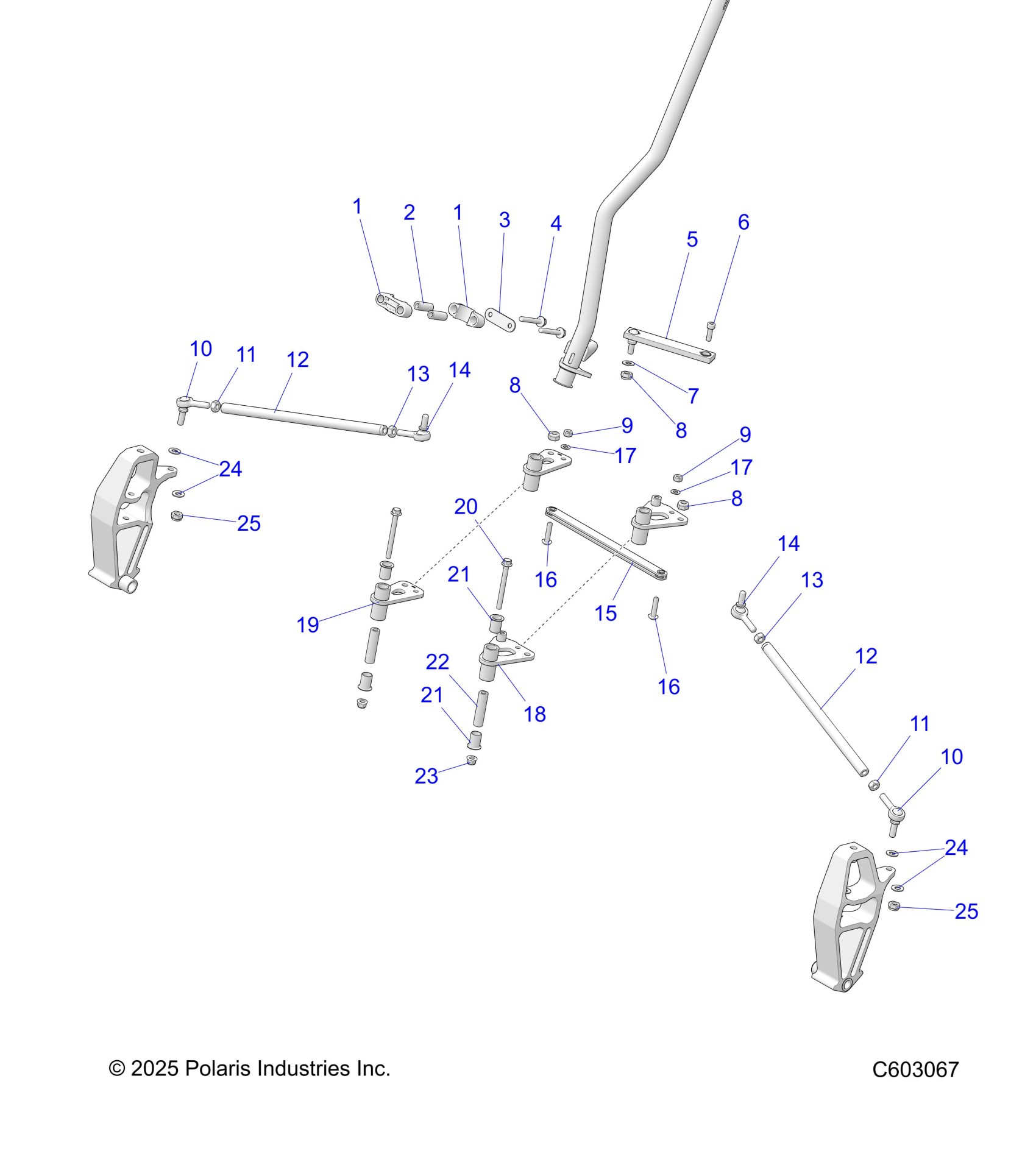

Polaris 650 VOYAGEUR ULTIMATE (R01) - S26TFN6RSP/RSL STEERING, LOWER - S26TFN6RSP/RSL (C603067) Diagram

#

Description
Price

1

BUSHING-STEERING POST LOWER

5458495

$4.79

1

BUSHING-STEERING POST LOWER

5458495

$4.79

2

SPACER, BUSHING

5137796

$3.99

3

STRAP-STEERING

5258308

$3.22

4

SCR-HXFL-M8X1.25X55 8.8 ZODP30

7519242

$4.79

5

ASM-DRAGLINK FIXED

7061186

$97.13

6

SCR-M8X1.25X25 8.8 SH ZOD P30

7519010

$3.99

7

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

8

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

8

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

8

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

9

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

9

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

10

ROD END-M10X26.5 75DEG RH

7061166

$52.60

10

ROD END-M10X26.5 75DEG RH

7061166

$52.60

11

NUT-M10X1.5 ZOD

7547430

$3.17

11

NUT-M10X1.5 ZOD

7547430

$3.17

12

ROD-TIE 296.29MM

5338122

$24.99

12

ROD-TIE 296.29MM

5338122

$24.99

13

NUT-M10X1.5 LH ZOD

7547431

$3.19

13

NUT-M10X1.5 LH ZOD

7547431

$3.19

14

ROD END-M10X23 75DEG LH

7061165

$52.60

14

ROD END-M10X23 75DEG LH

7061165

$52.60

15

ASM-RACK LINK

7061190

$71.99

16

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

16

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

17

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$3.19

17

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$3.19

18

ASM-PITMAN [INCL. 21]

1824761

$150.06

19

ASM-IDLER [INCL. 21]

1824547

$135.54

20

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$9.59

21

BUSHING-SKI PIVOT

5438460

$15.99

21

BUSHING-SKI PIVOT

5438460

$15.99

22

SHAFT-PIVOT IDLER

5138365

$24.27

23

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

24

Washer

7555806

$1.49

24

Washer

7555806

$1.49

25

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

25

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99
