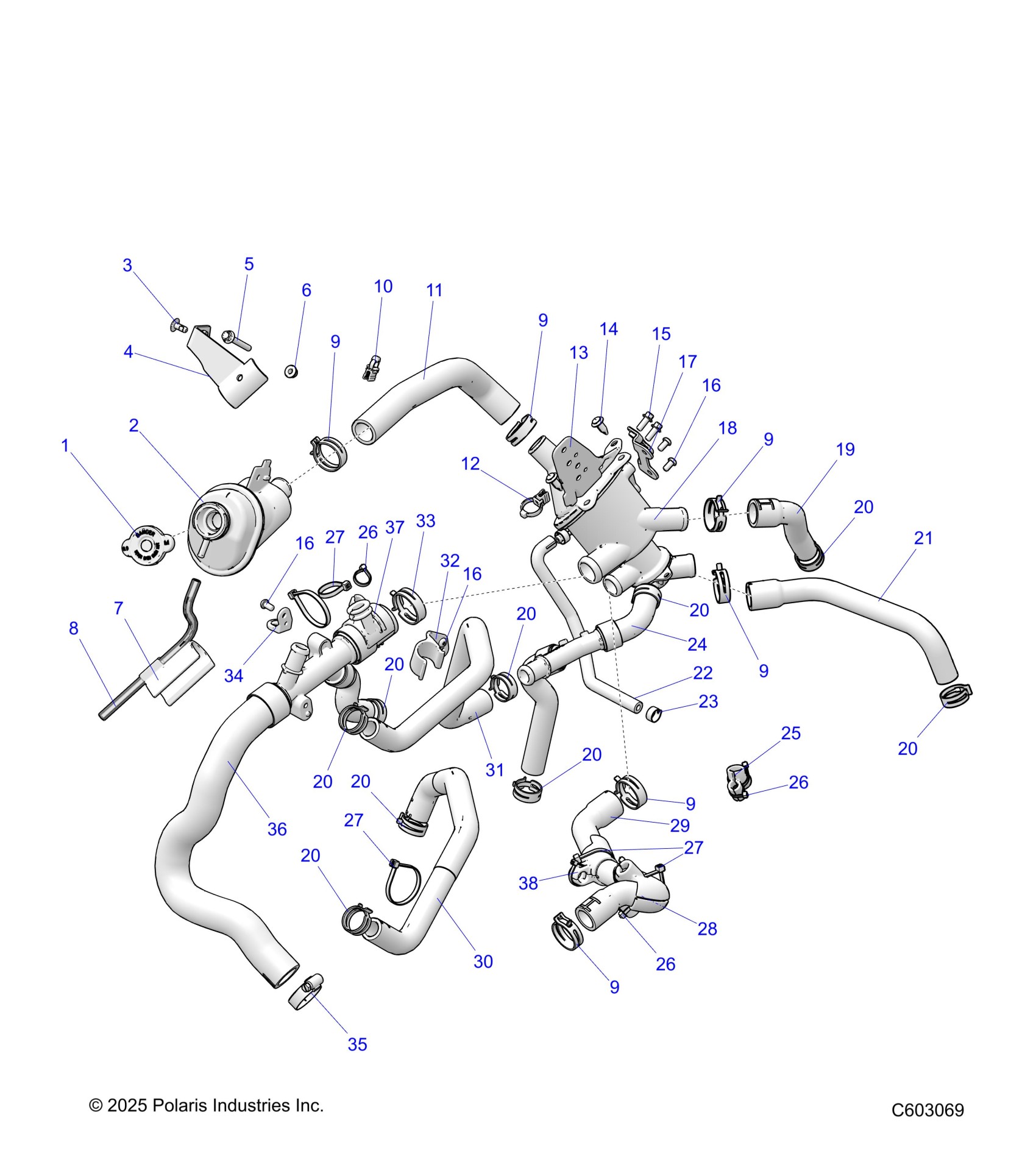

Polaris 650 VOYAGEUR ULTIMATE (R01) - S26TFN6RSP/RSL ENGINE, COOLING SYSTEM - S26TFN6RSP/RSL (C603069) Diagram

#

Description
Price

1

CAP-PRESSURE

1240300

$40.46

2

WELD-COOLANT BOTTLE

1244798

$23.99

3

SCR-TXTH-M6X1.0X15 8.8 P80 ZOD

7520147

$3.99

4

ASM-BRKT BOTTLE COOLANT

1028525

$27.99

5

SCR-HXFL-M6X1.0X45 8.8 ZOD

7519257

$3.99

6

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

7

CLIP-VENT LINE

5465444

$3.99

8

HOSE

-------

Unavailable

9

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

9

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

9

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

9

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

9

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

9

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

HOSE-COOLANT FILL

5418562

$31.99

12

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

13

BRKT-CONNECTOR PLACEMENT TP

5456998

$13.75

14

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

15

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

16

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

16

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

16

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

17

ASM-BRKT COOLANT BOTTLE TP

1024376

$13.75

18

WELD-COOLANT BOTTLE

1244797

$75.99

19

HOSE-TUNNEL/BOTTLE

5416326

$13.75

20

SPRINGBAND-CLAMP 26/12

7081692

$4.03

20

SPRINGBAND-CLAMP 26/12

7081692

$4.03

20

SPRINGBAND-CLAMP 26/12

7081692

$4.03

20

SPRINGBAND-CLAMP 26/12

7081692

$4.03

20

SPRINGBAND-CLAMP 26/12

7081692

$4.03

20

SPRINGBAND-CLAMP 26/12

7081692

$4.03

20

SPRINGBAND-CLAMP 26/12

7081692

$4.03

20

SPRINGBAND-CLAMP 26/12

7081692

$4.03

20

SPRINGBAND-CLAMP 26/12

7081692

$4.03

21

HOSE-BOTTLE/FRONT COOLER

5416325

$24.27

22

HOSE-THROTTLE BODY/BOTTLE

5418301

$23.99

23

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

24

ASM-HOSE

1244764

$63.99

25

SUPPORT-FUEL LINE/OIL LINE

5416539

$7.27

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

Unavailable

27

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

Unavailable

27

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

Unavailable

27

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

Unavailable

28

SUPPORT-THROTTLE CABLE/HOSE

5416538

$13.75

29

HOSE-BYPASS

5416321

$24.27

30

HOSE-RADIATOR/TEE

5418300

$31.99

31

HOSE-TEE/RADIATOR

5418299

$31.99

32

CLIP-HOSE/TEE

5459877

$3.99

33

SPRINGBAND-CLAMP 38/12,BLK

7082025

$5.59

34

GUIDE-ROPE

5465189

$6.46

35

CLAMP-HOSE, 1.750-SS

7080560

$11.19

36

ASM-HOSE

1244765

$119.99

37

HOSE-SUPPORT

5417751

$28.32

38

SUPPORT-STATOR WIRE

5416551

$11.32
