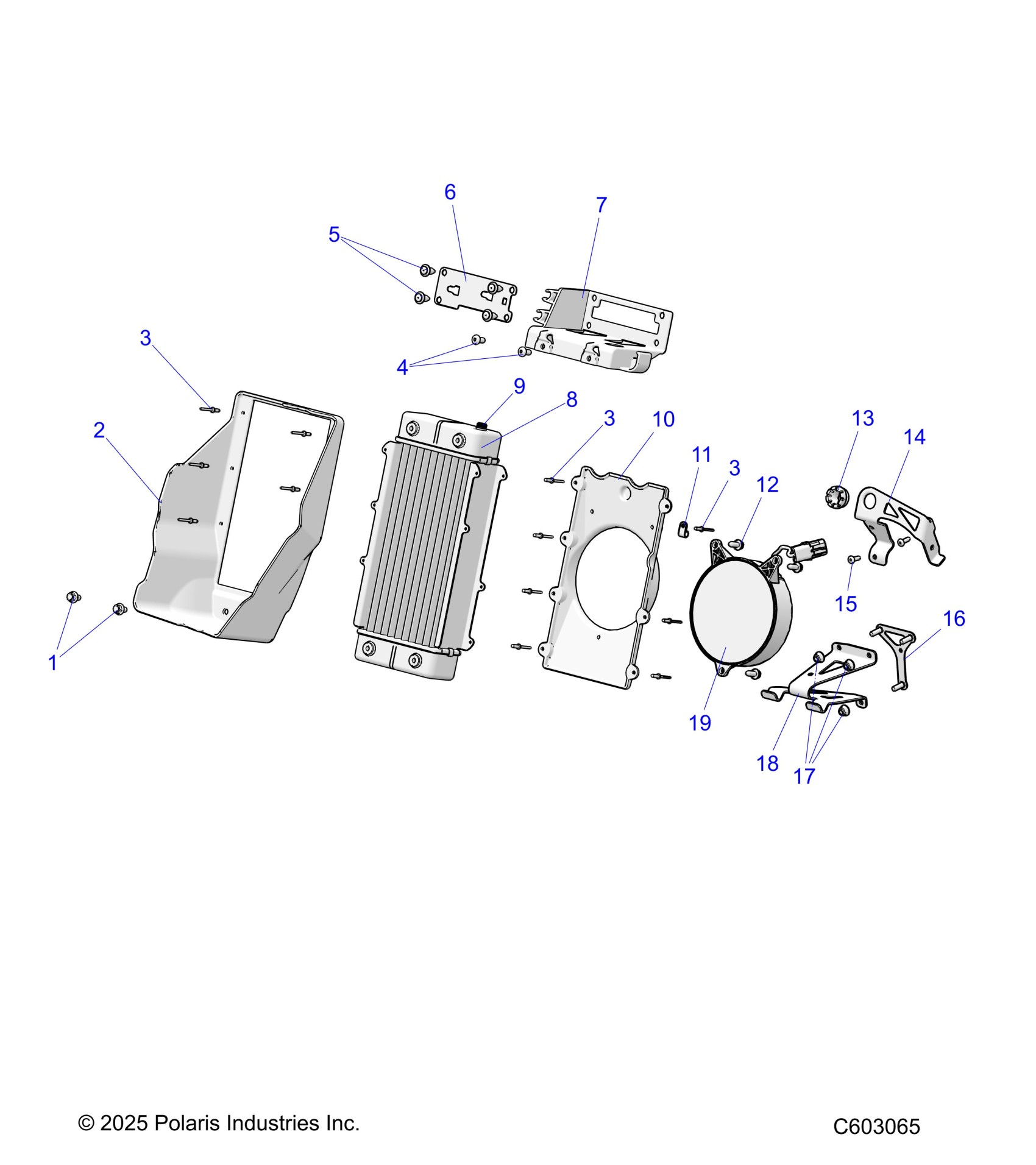

Polaris 650 VOYAGEUR ULTIMATE (R01) - S26TFN6RSP/RSL ENGINE, COOLING, RADIATOR - S26TFN6RSP/RSL (C603065) Diagram

#

Description
Price

1

SCR-HXFL-M6X1.0X12 8.8 ZOD P30

7519145

$3.99

2

SHROUD-RADIATOR UPPER

5459727

$48.56

3

RIVET-POP 1/8(.251-.312)-AL-B

7621224

$8.79

3

RIVET-POP 1/8(.251-.312)-AL-B

7621224

$8.79

3

RIVET-POP 1/8(.251-.312)-AL-B

7621224

$8.79

4

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

5

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

6

PLATE-FUSE,MNT,GALV

5258150

$35.99

7

MOUNT-FUSE BOX

5459258

$28.32

8

ASM-RADIATOR CORE

1244838

$329.19

9

ASM-SCREW BLEED W/O-RING

7055645

$130.94

10

SHROUD-RADIATOR LOWER

5465845

$40.46

11

CLAMP-NYLON, CABLE, 1/4"

7080539

$4.79

12

SCR-#14X3/4 LG,HI/LO/TAPER-M

7512095

$4.79

13

GROMMET-LATCH 75A SIL

5418397

$2.39

14

BRKT-RADIATOR UPPER

5273880

$32.37

15

RIVET-3/16-.090-.290

7661637

$1.49

16

ASM-STUD PLATE

1023087

$24.99

17

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

18

ASM-BRKT RADIATOR LOWER

1026262

$44.51

19

ASM-CAC FAN

1240621

$209.99
