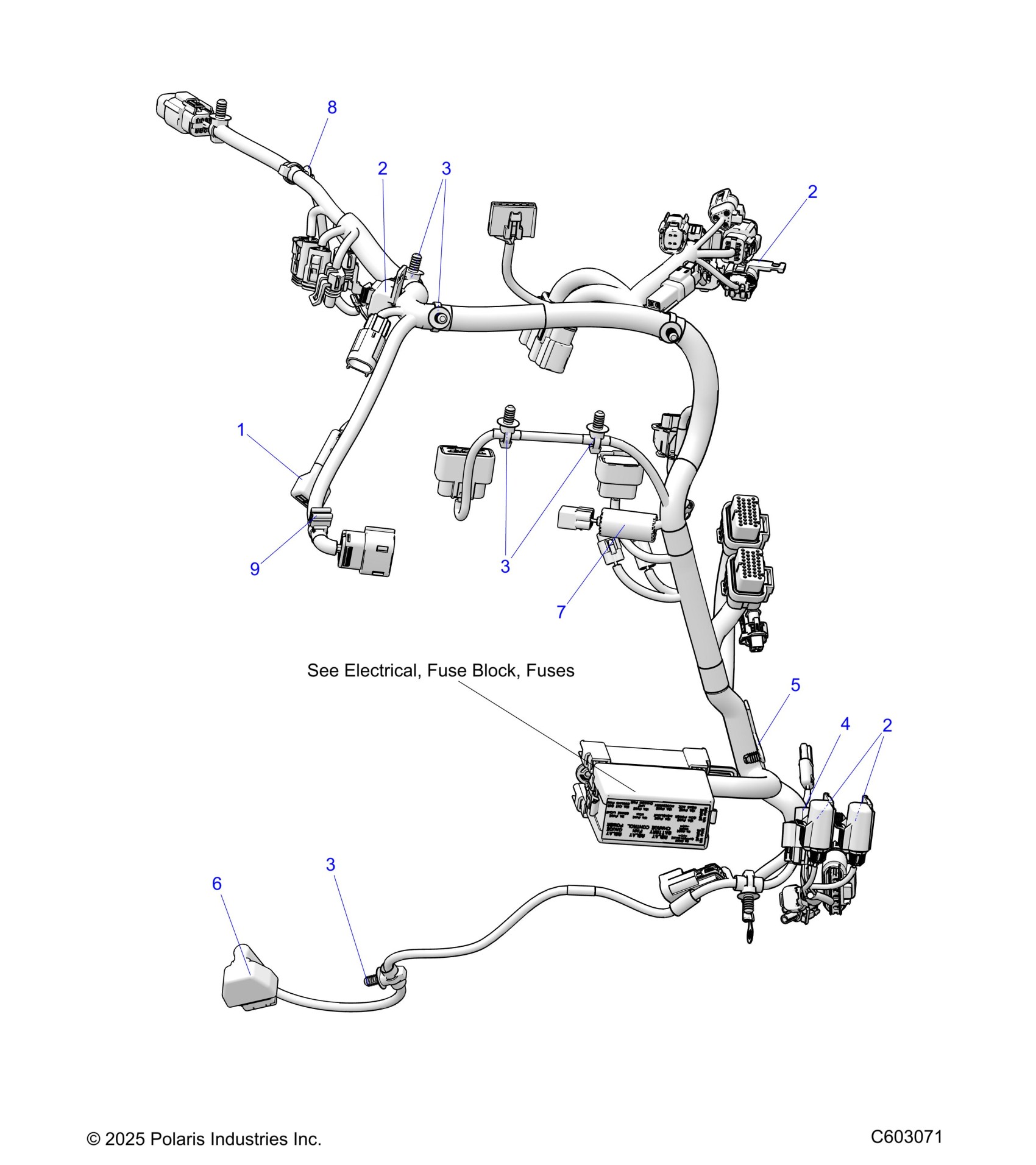

Polaris 650 VOYAGEUR ULTIMATE (R01) - S26TFN6RSP/RSL ELECTRICAL, WIRE HARNESS, MAIN - S26TFN6RSP/RSL (C603070) Diagram

#

Description

Price

-

HARNESS-MAIN MATRYX W/RAD 650 [INCL. 1-9]

2416741

$712.79

1

CAPACITOR-FILTER

4011441

$121.02

2

COVER-FUSEHOLDER

4012260

$9.70

2

COVER-FUSEHOLDER

4012260

$9.70

2

COVER-FUSEHOLDER

4012260

$9.70

3

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

3

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

3

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

4

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

5

CLIP-XMAS, 31MM OFFSET, TAPE-ON

7082412

$3.19

6

BOOT-EV ACTUATOR

5814995

$1.59

7

CLAMP-HARNESS FERRITE

4018398

$12.99

8

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

9

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79
