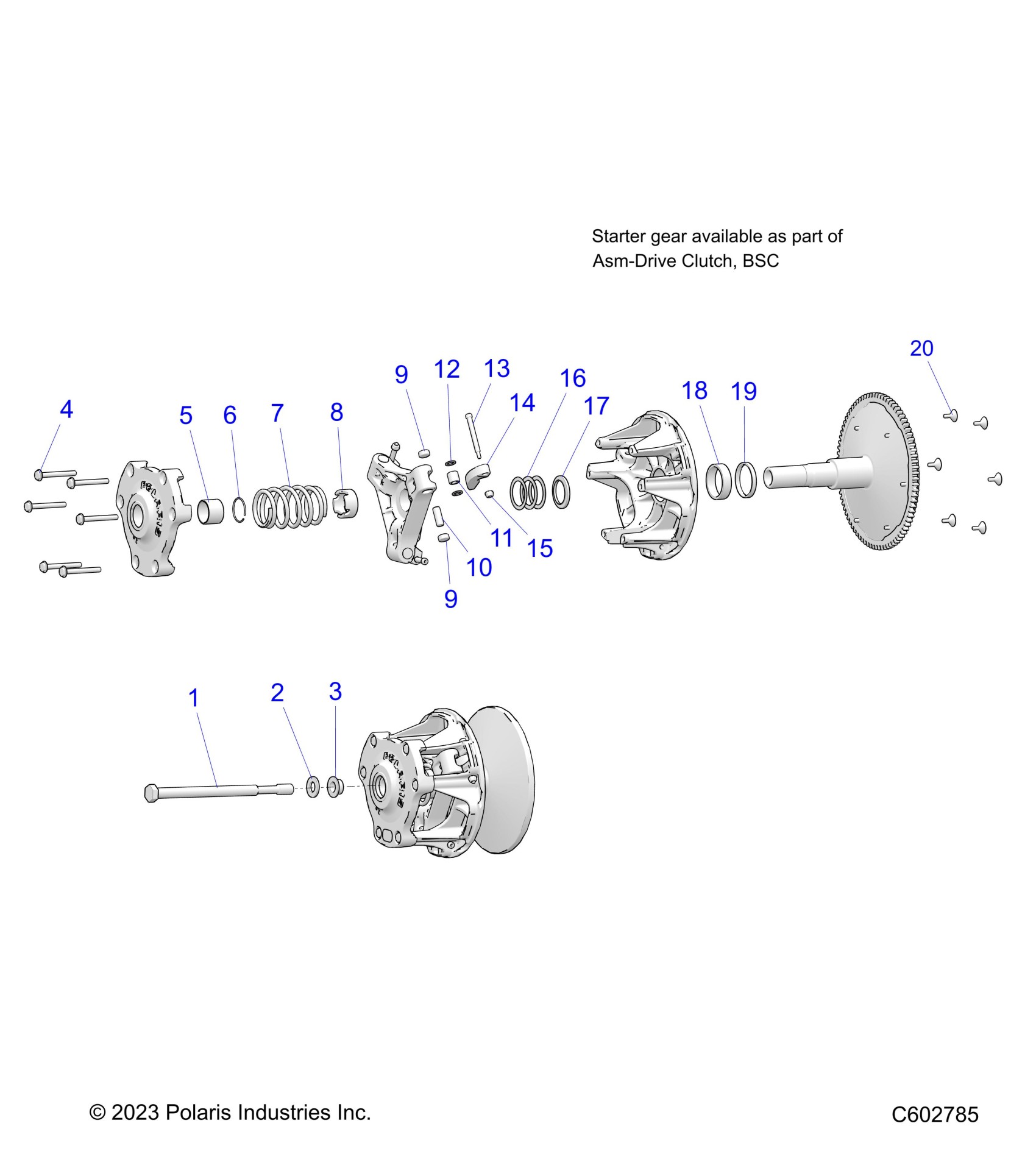

Polaris 650 VOYAGEUR ULTIMATE (R01) - S26TFN6RSP/RSL DRIVE TRAIN, CLUTCH, PRIMARY - S26TFN6RSP/RSL (C602785) Diagram

#

Description
Price

-

ASM-DRIVE CLUTCH BSC 6:1 ES [INCL. 4-6,8-13,15-20]

1323613

$549.89

1

SCR-M14X1.5X215,HX,10.9,Y35,R

7518412

$34.99

2

WSHR-0.5625X1.1X0.109 ZY3 HRD

7556702

$4.79

3

WASHER-CLUTCH RET,M14

5132441

$23.99

4

SCR-1/4-20X2 1/4 HX FLNG GR5-Y

7518349

$1.49

5

BEARING COVER GARMAX

3514347

$36.41

6

RING-RETAINING,COVER

7710417

$1.49

7

SPRING-DRIVE CLUTCH 85/275

7044786

$56.65

8

NUT-JAM

5020425

$23.99

9

BUTTON, GUIDE

5430445

$6.39

9

Kit - Shim, Drive Clutch

2200387

$24.27

9

BUTTON, GUIDE

5430445

$6.39

9

Kit - Shim, Drive Clutch

2200387

$24.27

10

PIN, ROLLER

5133079

$6.39

11

ASM-ROLLER AND BUSHING

1321622

$32.37

12

WASHER,MULTILUBE

5430945

$1.59

13

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

14

ASM., WEIGHT/BUSHING, 10-64

1321585

$40.46

15

NUT-10-24-FLEX LOC-Z

7541906

$3.19

16

SPACER, .050

5210754

$3.19

16

SPACER, .025

5242981

$3.99

16

SPACER, .020

5210752

$1.59

16

SPACER, .032

5210753

$2.39

17

BEARING-SLEEVE

3514641

$19.99

18

INSERT-MOVEABLE

5010188

$7.99

19

SHIM-1.25X1.74X.103 STEP

5142519

$11.32

20

SCR-SHFL-5/16-18X0.625 GR5 ZY3

7515351

$3.99
